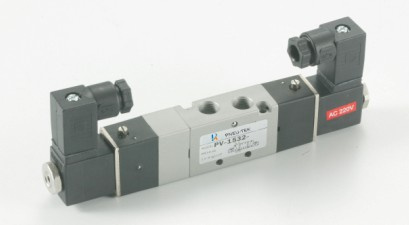

PPV-350 Electrically Operated (5 Way)
Property For Explosion-Proof Type
Anti-Explosion Class: EEx m II T4
Voltage: AC110V, 220V, (50/60)Hz, DC24V
Power Consumption: AC4.4VA DC=5W
Available Voltage Range: ± 10%
Insulation Class: F Class
| Model | PPV-3521 | PPV-3522 | PPV-3532.42 |
| Port thread size (Rc) | 3/8" |
| Port amount | 5/2 | 5/3 |
| Used fluid | Air |
| Pressure range (kgf/cm²) | 1.5 ~ 8 | | 2 ~ 7 |
| Effective section area (mm²) | 30 | | 18 |
| Ambient temperature (°C) | 0 ~ 60 |
| Allowance voltage range | AC110V HZ/AC220V HZ/ DC24V (± 10%) |
| Power consumption | AC = 8VA / DC = 5W |
| Insulation grade (°C) | Class F |
| Weight (g) | 300 | 385 | 525 |
| Pneumatic and spring return, manually control in first priority. |
| European imported coil wire with low electricity consumption. |
