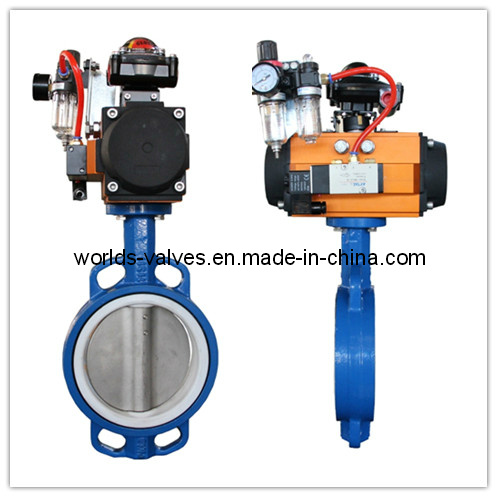

Pneumatic actuators control valve are widely used in water supply and drainage, hydre/thermal power, building project as well as industrial water system, such as steel and petrochemical.
Here is the features:
1.Structure simple is compact, stable positioning, and the weight is light.
2.Designs reasonably, the assembling and dismantling and installation is easy, to be advantageous.
3.Minimized operating torque.Lever, gear, pneumatic and electric actuators can be chosen.
3.Rubber backed seat with stable valve torque.No leakage under the rated pressure.
4.Special design, high flow rate and low flow resistance.
| Series | Pneumatic actuators control valve |
| Size: | Dn40-dn1500 |
| End flange: | Ansi b 16.1,astm b 16.47,en 1092, as 2129, iso pn10/16,jis b2212/2213, bs 10 table d, bs 10 table e |
| Face to face: | Ansi b 16.10 |
| Top flange: | Iso 5211 ,gb |
| Norminal pressure: | Pn10,pn16,class125,class150 |
| Body: | Cast iron/ductile iron/wcb/carbon steel/al-bronze/cf8,ss304/cf8m,ss316 |
| Disc: | Ductile iron/ni-plated ductile iron/nylon-plated ductile iron/al-bronze/rubber lined disc/1.2501/1.4529/cf8/cf8m/hastelloy alloy/monel |
| Stem: | Ss416/ss304/ss316/ss431/17-4ph/monel |
| Seat: | Nbr/hypalon/epdm/neoprene/nr/wear-resistant epdm/viton/silicon/heat-resistant epdm/white epdm/epdm()/ptfe |
| Suitable temperature: | Normal temperature -45 ~150 |
| Medium: | Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc. |
REASONS FOR CHOOSE US
1.100% factory price ,we are direct proucer of butterfly valves, check/non-return valves, gate valves,ball valves,Y type strainers ,pipe fittings and so on.
2.Professional technical support and after-sale service .
3.All valves are tested twice before and after hammer pin to ensure its perfect sealing property.
4.Valves' back seats are phenolic resin under DN350 while above DN400 are aluminium back seat to prolong its working life.
5.Concentric valves can ensure zero leakge.
1.What's payment terms?
30% down payment, 70% balance paid before shipment.
2.What's MOQ?
One set.
3.How control the quality of butterfly valve?
Select high quality raw material
Strict required during machining
Seat material comply with food grade
Tested twice to insure zero leakage
First copper plating disc, then nickle plating disc to increase the adhesiveness
4.Delivery time?
According to the quantity ,if small ,7-15 days after received the advance payment.
Sales manager : cancy Lee
Tel: +0086 136 5201 1350
TIANJIN WORLDS VALVE Ltd. is located at TIAN JIN BIN HAI, , it is only 3 kilometers away from Tianjin Xingang Port, TIANJIN WORLDS VALVE Ltd. focuses on producing, installing, sale and service. The main products ranges from Center Line Butterfly Valve, Flanged Butterfly Valve, Metal Butterfly Valve, Dual Plate Check Valve, Gate Valve, Waterpower Control Valve, Microresistance Slow Close Check Valve, Multi-function Pump Control Valve to their series products. Moreover, we can produce control valve and pressure reducing valve with different materials, pressures, specifications, actuation ways. Our products have more than 50 serials and 1200 species, the annual production output is more than 8.000 metric tons. WORLDS valves sells well all over China and have been exported to Europe, America and other countries and areas, they are widely used in water supply and drainage, electric power, petrol chemical industry, metallurgy and other trades. The products are creative with good quality, cheap price and excellent credit, so far we got a good feedback from our customers.
WORLDS has excellent technicians and engineers, at the same time it has a lot of large and middle machines including 178 sets of manufacturing equipments and 32 sets of performance testing equipments imported from overseas. Our products have original design, exquisite technique, perfect manufacture and complete testing ways. It has passed ISO 9001 international quality system certification of DNV. WORLDS will supply best products and service for all customers.
