Mobilized Portable Safety Relief Valve test bench
DN15-DN300
Testing Medium: Nitrogen
For mobilization to work at site

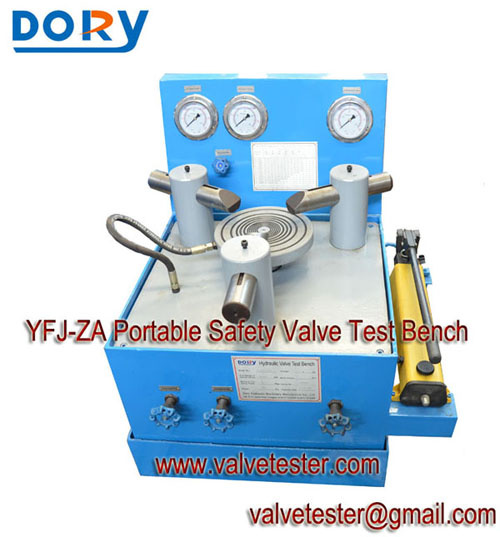

Mobilized Portable Safety Relief Valve test bench
Portable Safety Valve test Bench for mobilization to work at site
Technical Performance & Feature
Used for perform the air tightness pressure, set pressure, re-seating pressure and open pressure of flanged/threaded safety valve and safety relief valve.
By means of claw clamping the flanges of the valves,
The test bench can be equipped with air booster upon request of the user to perform the high pressure test.
The test medium can be nitrogen and air depends on user.
The safety protection devices and Data management system can be selected by users upon request.
The test bench can be customized according to the user's detailed requirements.
Specification and Main Technical Data
Model Name
Test Range
(mm)
Outside Dimension
(A× B× H)(mm)
YFJ-A100
DN15-100
700× 2200× 1600
YFJ-A200
DN50-200
700× 23001600
YFJ-A300
DN80-300
850× 2500× 1600
YFJ-A300 Set type
DN15-DN100
DN80-DN300
850× 3900× 1700
Please contact us for more information.
