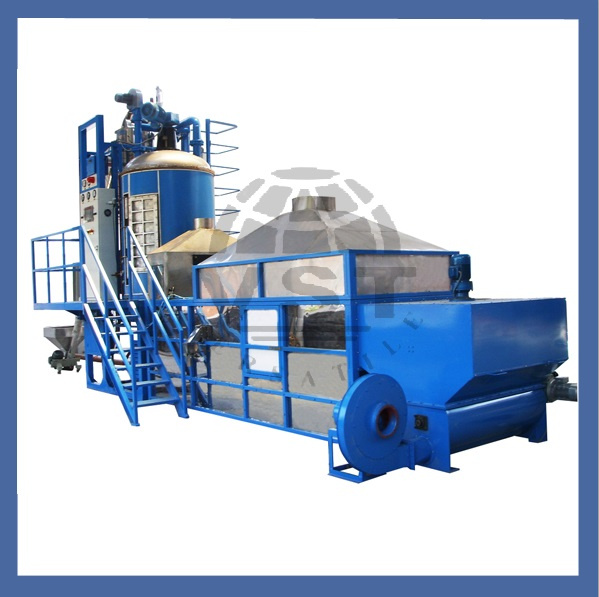

Main Features:
1, All process including filling, expanding, sieving, delumping and conveying to silos are done automatically.
2, With primary and secondary expansion device to get density of 8-30g/l
3, Fist filling is controlled by frequency converter
4, With power-off protection device
5, With Japan steam presure reducing valve
|
TECHNICAL DATA |
|
|
|
|
|
Item |
|
PSY-70 |
PSY-90 |
PSY-120 |
|
Expansion Chamber |
Diameter
Volume
Useable volume |
Φ 700mm
0.6 m³
0.4m³ |
Φ 900mm
1.2 m³
0.8m³ |
Φ 1200mm
2.2m³
1.5m³ |
|
Steam |
Entry
Consumption
Pressure |
DN20
80-100kg/cycle
0.6-0.8MPa |
DN40
100-150kg/cycle
0.6-0.8MPa |
DN40
150-200kg/cycle
0.6-0.8MPa |
|
Compressed Air |
Entry
Pressure |
DN15
0.6-0.8MPa |
DN20
0.6-0.8MPa |
DN20
0.6-0.8MPa |
|
Drainage |
Condensate |
Φ 20mm |
Φ 20mm |
Φ 20mm |
|
Throughout |
15g/l
20g/l
25g/l
30g/l |
100g/l
120g/l
150g/l
200g/l |
150g/l
200g/l
250g/l
300g/l |
250g/l
300g/l
410g/l
500g/l |
|
Material Conveying Line |
|
Φ 150mm |
Φ 150mm |
Φ 150mm |
|
Connected Load |
|
8.93Kw |
9.73Kw |
13.33Kw |
|
Density |
First expansion
Second expansion |
12-30g/l
8-11g/l |
12-30g/l
8-11g/l |
14-30g/l
8-13g/l |
|
Overall Dimension |
(L*W*H) |
4700*2660*2600(mm) |
4700*2930*3200(mm) |
4905*4655*3250(mm) |
|
Weight |
|
1300kg |
1500kg |
1800kg |
|
Room Height Required |
|
3000mm |
3000mm |
3000mm |
