Home Valve Products Precision Air Poppet Valves (XZE09-10)

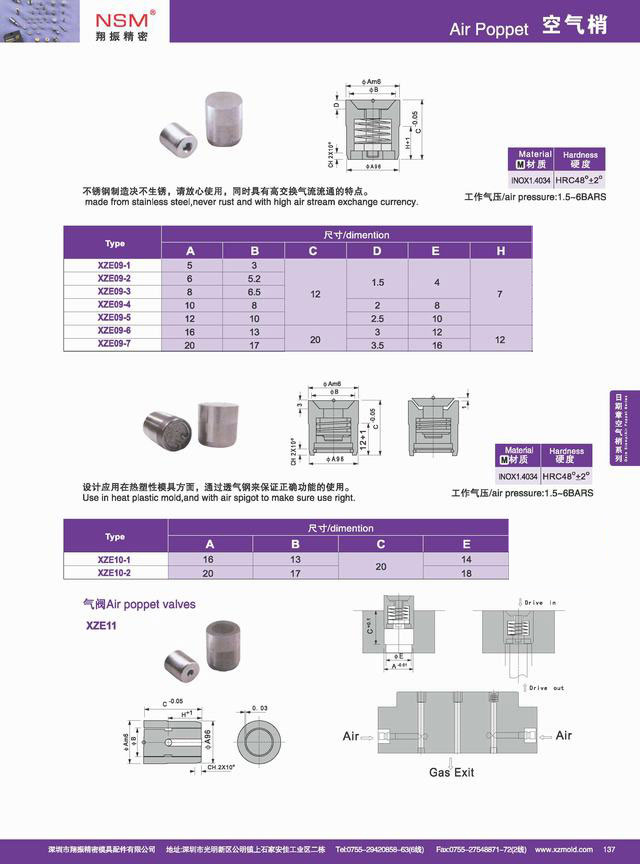

Precision Air Poppet Valves (XZE09-10)

Precision Air Poppet Valves (XZE09-10)
Price: US $ 2/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T
Product's name: Air poppet
Material: Stainless
Hardness: HRC 46-50
Packing: 1)Double layers plastic bag package 2)Sponge 3)Thick cartons box
4) in wooden case
Grinding Precision: 0.001mm
EDM Precision: 0.002mm
Surface Roughness: Ra 0.025
Plastic Mold Part: For Plastic Mold
Machine: CNC, EDM, Wire-EDM
EDM Clearance Angle: R 0.03mm
Export Markets: Global


1.Factory information:

Company:Dong guan city Xiang zhen mold parts Co.,Ltd
Web: www.xzmold.com
Location:Dong guan,China (close to Hong Kong,Shen Zhen,Guang Zhou)
Software:PDF,Auto-CAD,Pro-E,UG etc are available
Employee:100-200
Manufacture in:High precision mold parts/Hot-runner and related parts/CNC/EDM parts/Grinding parts/Customized mold parts

2. Equipment and Inspection measurement:

Description
Machine type nameOrigin from and brandQuantityPrecision level(mm)
Processing equipmentCNC ProcessingTaiwan3±0.01
CNC LatheJapan2±0.003
WEDM (Low speed wire cutting)Japan2±0.005
±0.002
WEDM (high-speed wire cutting)China2±0.005
±0.01
Flood grinderChina1±0.002
EDMTaiwan2±0.005
ID GrinderTaiwan3±0.001
Depth drillTaiwan3±0.02
Automatic grinderTaiwan2±0.001
Centerless GrinderTaiwan12±0.001
Surface GrinderJapan2±0.001
Surface GrinderTaiwan5±0.001
Vertical hydraulic Heading MachineChina2
Semi-automatic Heading MachineTaiwan3
Manual Heading MachineTaiwan2
Automatic forging machineTaiwan1
Bench grindersTaiwan2
Punch GrinderTaiwan6±0.002
LatheChina4±0.01
32 type LatheTaiwan4
25 type LatheTaiwan3±0.01
15 type LatheTaiwan10±0.01
Milling MachineTaiwan6±0.01
Liquid nitriding furnaceChina1
Tempering furnaceChina2
Oxidation furnaceChina1
Inspection equipmentRockwell hardnessShanghai1±0.5°
Height gageJapan20.001mm
MicroscopeShanghai20.0001mm
Three-dimensionalGermany(Zeiss)1±0.002
2.5 dimensionTaiwan1±0.001
Digital ProjectorTaiwan1±0.002
Vickers hardness testerTaiwan1
Concentricity deviceTaiwan2±0.001
Digital Micrometer calipersTaiwanMultipleConventional
slide calliper ruleTaiwanMultipleConventional
Height GaugeTaiwan1Conventional
RoughometerJapan1Conventional

3.Precision parts information:

Accuracy for EDM
Clearance angleR0.03mm
 Surface RoughnessRa0.05mm
Accuracy for GrindingClearance angleR0.02mm
 Shape tolerence±0.001mm
 Accuracy for surfaceRa0.05mm
 Minimum thickness0.1mm
 Minimum grooveWide 0.01mm;Depth 0.25mm
MaterialJapan:SKD61/SKD11/SKH51/SUJ2
 Germany:1.2343/1.2344 or as Customer's request.
SizeStandard as DME/Hasco/Punch etc or Customized
MOQ10Pcs/Type
PriceEXW/FOB/CNF/CIF
PaymentT/T or %advance-%against shippment


4.Why choose us:
*-Quality: Qualified Raw Material
Reliable Machines
Mature process
Skilful employees
Strict Quality Control
*-Price: Competitive price /Reasonable margin
*-Service: Any inquiries replied within 24 hours
Quick Delivery
Quick Response (7/7)
Warranty: Depend on product type.
Stardand parts: 500K---2M cycles


5. How to order:
(1) Send us drawing or standard code & size
(2) We quote you within 1 day (except Saturday and Sunday)
(3) Get agreement with price and sign PO or Contract
(4) Make payment in advance
(5)If sample required,we will make sample first

6. Contact Info:
Sales Manager:Nancy
Tel: +86 769-83516188 ext 8831
Fax: +86 769-83510866/83510966

Prod Model: XZE09-10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Dme/DIN etc Standard and Customized Avaliable
Price: Manufactury Price
MOQ: 10PCS/Type
Delivery Time: Generally 7-8 Workdays or According to Quantity
Shaping Mode: Injection Mould
Process Combination Type: Single-Process Mode
Application: Hardware
Installation: Fixed
Certification: ISO9001:2008
Dongguan City Xiangzhen Mold Parts Co., Ltd. is a professional manufacturer of standard components and plastic molds.

The ranges of our products include standard (HASCO, DME and JIS) and customized high-precision ejector pins, ejector sleeves, shoulder ejector pins, blade ejector pins, core pins, guide posts, bushings, punching parts, fixtures and other parts.

We not only produce these standard components, but also help solve problems in the production of plastic molds and die casting parts.

Our factory is equipped with Taiwanese CNC working centers, NC gun drilling machines, centerless grinders, cylindrical grinding machines, internal grinding and honing machines, high-speed precision desk-top lathes and surface grinding machines.

We follow the spirit of "teamwork" and establish close and cooperative partnership with our customers. The company has cooperated with many clients both from domestic and overseas, and has obtained consistently high praise from our customers since it was set up. We sincerely welcome you to visit our company or contact us for cooperation!

We have significantly essential support from local customers that are leading mould manufacturers and reputable foreign agents in mould industry.
