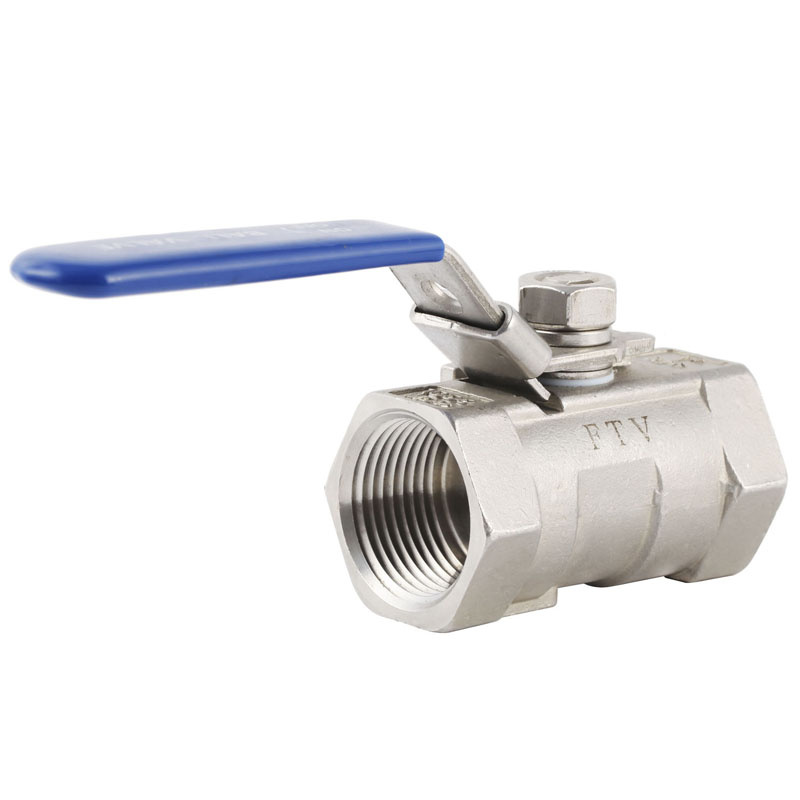

Precision Casting Stainless Steel 1PC Reduce Bore Screwed Ball Valve
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Set |
| Pay Type: |
L/C,T/T,D/P |
Investment Casting Screwed 1PC Ball Valves-reduce boreSpecifications:
1) Size: 1/4" to 3"
2) Threaded: BSPT, BSP(BS21), NPT(B1.20.1), DIN2999/259,ISO228-1,ISO7/1
3) Working pressure: 1000PSI/PN63
4) Type: 1PC/2PC/3PC or wafer type, PTFE seat, reduced bore for 1PC ball valve, full bore for 2PC/3PC ball valve, with or without mounting pad ISO5211
5) Material: WCB, CF8, CF8M etc.
6) Casting: Investment Casting/Precision casting
7) Operation: Lever with locking device(option)
1 - PC Stainless Steel Ball Valves 1000 WOG
1000 WOG, Reduced bore, Threaded end.
Description:
Investment casting body
Materials: ASTM A351-CF8M, ASTM A351-CF8
Pressure temperature rating: 1000 PSIPN63) / Pressure temperature rating: 450 deg. F
Threaded end: BSPT, NPT, DIN259, DIN2999
Blow- out proof stem
Size: 1/4" ~ 3"
Options: Padlocking device,oval handle, butterfly
Options: handle
Standard materials of parts| No. | Parts | Materials |
| 1 | Plastic cover | Plastic |
| 2 | Handle | SS304 |
| 3 | Locking | SS304 |
| 4 | Stem nut | SS304 |
| 5 | Spring washer | SS304 |
| 6 | Stem | SS304 / SS316 |
| 7 | Packing ring | SS304 |
| 8 | Stem packing | PTFE |
| 9 | Thrust washer | PTFE |
| 10 | Cap | CF8 / CF8M |
| 11 | Body | CF8 / CF8M |
| 12 | Seat | RPTFE |
| 13 | Ball | CF8M |
| 14 | Seat | RPTFE |
Dimensions (in mm & inch) and weight| Size | D | L | H | W |
| 1/4" | 5 | 39 | 33 | 68.5 |
| 3/8" | 7 | 44 | 35 | 90 |
| 1/2" | 9.2 | 57 | 40 | 98 |
| 3/4" | 12.5 | 59 | 44 | 98 |
| 1" | 15 | 71 | 51 | 111 |
| 1.1/4" | 20 | 78 | 57 | 111 |
| 1.1/2" | 25 | 83 | 64 | 139 |
| 2" | 32 | 100 | 70 | 139 |
| 2.1/2" | 38 | 128 | 70 | 189 |
| 3" | 50 | 153 | 77 | 189 |
All our products are designed and manufactured strictly in conformity with the standard of API, ANSI, AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and CE certificates to ensure the quality stability of the products. We provide EN10204-3.1B.Mill Test Certificate for all our supplied products.
Our products range covers all kinds of ball valves, gate valves, globe valves, check valves, butterfly valves, plug valves, safety relief valves, bellow sealed valves, diaphragm valves, steam traps, knife gate valves, strainers, quick couplings, all types of flanges, pipe fittings, bolts&nuts&gaskets, steel plates, tubing and casing, line pipes and other pipeline equipment & components, with the materials of carbon steel, alloy steel, stainless steel, grey iron, ductile iron, brass and bronze. Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/4" to 3" |
| Pressure: |
1000psi/Pn63 |
| Thread: |
Bs21,B1.20.1,DIN2999/259,ISO228-1,ISO7/1 |
| Bore: |
Reduce Bore |
| Body Material: |
Wcb,Ss304,Ss316 |
| Seat: |
PTFE/Rptfe |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Water Industrial Usage |
| Function: |
on-off |
