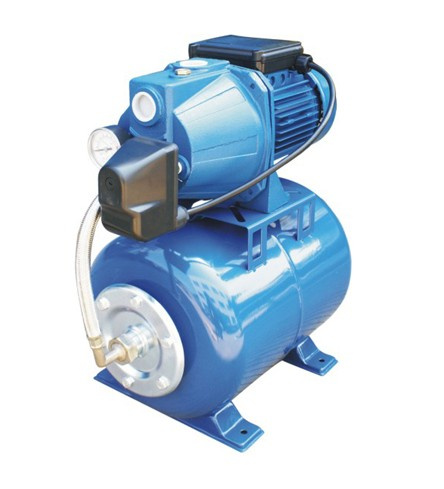

Automatic Pressure Boosting Jet Water Pump
Auto series of pump is constituted with clean water pump, non-return valve and air-water separation room, which located on the upside of the pump body.
During operating, it is no need to use foot valve, the only thing that you should do is just leave some water in the pump body.
After a few minutes' running, the water will be sucked out relying on the pump body itself.
They are particularly suitable for domestic applications such as supplying water from well, pool etc.
It is also suitable for water pressure boosting, gardening and automatic water supplying if combined with other appliances.
Construction
Pump-Peripheral
Pump Body: Cast Iron/Stainless Steel/Brass
Front Cover: Cast Iron/Cast Iron with brass insert / Aluminum / Brass
Impeller: Brass/Aluminum/PPO
Mechanical Seal: Carbon/Ceramic/Stainless Steel
Motor Housing: Alloy Aluminum
Shaft: Carbon Steel/Stainless Steel/High Frequency Wedding Shaft
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation
With thermal overload protector in single phase motor
Operating Condition
Liquid temperature up to 60C
Ambient temperature up to 40C
Max. Pressure: 10Bar
WARRANTY: 1 Year
|
TYPE |
Power kW |
Q.max(L/min) |
Size(inch) |
Tank Located |
Tank Located |
Suggested Pressure Setting Bar |
L×W×H mm |
N.W(kg) |
G.W(kg) |
|
AUQB60 |
0.37 |
30 |
1"×1" |
24L |
Horizontal |
1.2-2.5 |
525×300×550 |
10.0 |
11.5 |
|
AUJET60S |
0.37 |
40 |
1"×1" |
24L |
Horizontal |
1.2-2.5 |
500×300×530 |
16.6 |
18.9 |
|
AUJET80S |
0.55 |
45 |
1"×1" |
24L |
Horizontal |
1.8-3 |
500×300×530 |
17.1 |
19.4 |
|
AUJET100S |
0.75 |
53 |
1"×1" |
24L |
Horizontal |
1.8-3 |
500×300×530 |
17.7 |
20.0 |
|
AUSWP100A |
0.37 |
41 |
1"×1" |
24L |
Horizontal |
1.8-3 |
500×300×530 |
14.3 |
16.6 |
|
AUSWP255A |
0.55 |
45 |
1"×1" |
24L |
Horizontal |
1.8-3 |
500×300×530 |
19.1 |
21.4 |
|
AUSWP355A |
0.75 |
52 |
1"×1" |
24L |
Horizontal |
1.8-3 |
500×300×530 |
21.1 |
23.4 |
|
AUJET60L |
0.46 |
40 |
1"×1" |
24L |
Horizontal |
1.2-2.5 |
500×300×530 |
17.1 |
19.4 |
|
AUJET80L |
0.55 |
47 |
1"×1" |
24L |
Horizontal |
1.8-3 |
500×300×530 |
21.1 |
23.4 |
|
AUJET100L |
0.75 |
55 |
1"×1" |
24L |
Horizontal |
1.8-3 |
500×300×530 |
22.1 |
24.4 |
|
AUJS60 |
0.37 |
39 |
1"×1" |
24L |
Horizontal |
1.2-2.5 |
500×300×530 |
11.6 |
14.2 |
|
AUJS80 |
0.55 |
45 |
1"×1" |
24L |
Horizontal |
1.8-3 |
500×300×530 |
12.8 |
15.1 |
|
AUJS100 |
0.75 |
53 |
1"×1" |
24L |
Horizontal |
1.8-3 |
500×300×530 |
13.2 |
15.5 |
