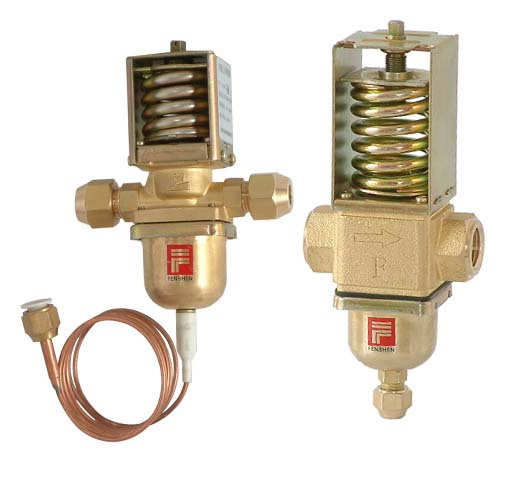

Pressure Controlled Water Valve (PWV Series)
| Price: |
Negotiable |
| Trade Terms: |
Negotiation |
| Min Order: |
1 |
PWV series pressure actuated water valve is installed on the cooling pipe of condenser (usually be installed on the inlet of condenser), which can regulate the flow of cooling water according to the change of condensing pressure. When discharge pressure (condensing pressure) of compressor rises, valve is turned up automatically, so more cooling water enters the condenser to accelerate the condensing of refrigerant. Reversely, when discharge pressure (condensing pressure) of compressor drops, valve is turned down automatically, so cooling water reduces and the condensing pressure is kept within certain range.
|
Symbol |
Model |
Refrigerant |
Adjusting range
(MPa) |
Max. working pressure
(MPa) |
Max. testing pressure
(MPa) |
Medium |
Max. working pressure (MPa) |
Max. Medium temp.ºC
|
Factory setting opening pressure
(MPa) |
Kvvalue m 3 /h |
|
Low pressure |
PWV3/8 |
R134a,R22,R407CR404A/507 |
0.5→1.8 |
2 |
2.4 |
Fresh water |
1 |
60 |
0.75 |
0.8 |
|
Low pressure |
PWV1/2 |
R134a,R22,R407CR404A/507 |
0.5→1.8 |
2 |
2.4 |
Fresh water |
1 |
60 |
0.75 |
2.5 |
|
Low pressure |
PWV3/4 |
R134a,R22,R407CR404A/507 |
0.5→1.8 |
2 |
2.4 |
Fresh water |
1 |
60 |
0.75 |
3.2 |
|
Low pressure |
PWV1 |
R134a,R22,R407CR404A/507 |
0.5→1.8 |
2 |
2.4 |
Fresh water |
1 |
60 |
0.75 |
5.0 |
High
pressure |
PWV3/8G |
R134a,R22,R407CR404A/507 |
0.7→2.3 |
2.6 |
3 |
Fresh water |
1 |
60 |
2 |
0.8 |
High
pressure |
PWV1/2G |
R134a,R22,R407CR404A/507 |
0.7→2.3 |
2.6 |
3 |
Fresh water |
1 |
60 |
2 |
2.5 |
High
pressure |
PWV3/4G |
R134a,R22,R407CR404A/507 |
0.7→2.3 |
2.6 |
3 |
Fresh water |
1 |
60 |
2 |
3.2 |
High
pressure |
PWV1G |
R134a,R22,R407CR404A/507 |
0.7→2.3 |
2.6 |
3 |
Fresh water |
1 |
60 |
2 |
5.0 |
| Prod Model: |
PWV Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Shanghai Fengshen Refrigeration Controls Co., Ltd., pecializes in the development and manufacturing of automatic controller, which matches refrigerator, air conditioner, boiler, air compressor, and fire control, etc. In use. Our products include: Solenoid valve (uni-directional and bi-directional), discharge solenoid valve, thermostatic expansion valve (uni-directional and bi-directional), temperature responsive expansion valve, liquid injection valve, pressure actuated regulating valve, temperature water valve, constant pressure expansion valve, safety valve, pressure control, differential pressure control, temperature control, flow switch and fluid sight glass, etc.
It was founded in June, 2000, and passed the certification of ISO9001: 2000 Quality Management System in 2001, of 3C in 2003, and of CE in 2004. In 2006, it passed the testing of RoHS. It has a batch of talents in design and research of refrigerating auto device and well-experienced professional technicians, so it has powerful strength in development of new products and the provision of solutions. Under the development and trial of new products, engineers must undergo the testing in simulated condition and durability, which assures and enhances the reliability and accuracy. In addition, it has a powerful service force, which can help the clients solve some technical problems in type selection, use and debugging, etc.
