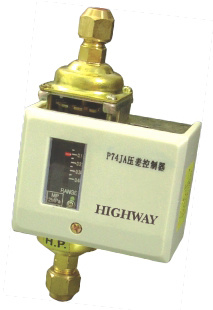

P74JA differential pressure controllers are used in water system of central air-conditioning to balance the differential pressure between the pipe of supplying water (hot/chilled) and the pipe of returning water. Its working principle is: when the pressure differential increases over the set point, the valve opens automatically. Water in the supply pipe runs directly to the return pipe, resulting in a reduction in system pressure differential between supply and return.
Feature:
1. Single pole and double throw (SPDT), totally enclosed non-snap acting switch
2. 1/4 in. flared tube pressure connecting on the sensing component permits easy field installation
3. Easy-read calibrated scale
4. Pressure differential setting can be easily changed without removing the outer shell
| Product name | P74JA differential pressure control |
| Scale range | 8~60PSI (55~414Kpa) |
| Operational differential pressure | 2PSI (14Kpa), fixed |
| Max. overload pressure | 180PSI (1241Kpa) |
| Max. pressure differential | 120PSI (830Kpa) |
| Power | 24VAC, 1A, 50/60Hz |
| Terminal contact | SPDT totally enclosed floating PENN switch |
| Material | Box: 1.6mm cold rolled copper |
| Shell: 0.6mm cold rolled copper |
| Finish | Grey baking finish |
| Installation | Horizontal installation or supported by a standard bracket |
| Working environment | -1ºC ~60ºC |
| | |
