Pressure Discharge Sustain Valve Pressure Relief Valve
Price: |
US $ 100/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal,Western Union |

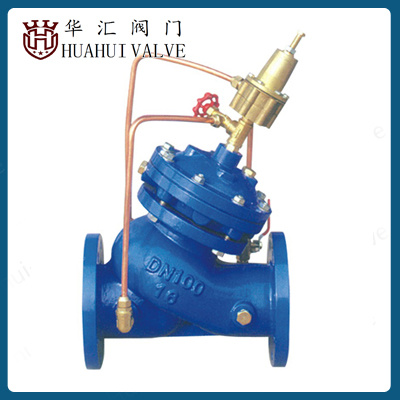

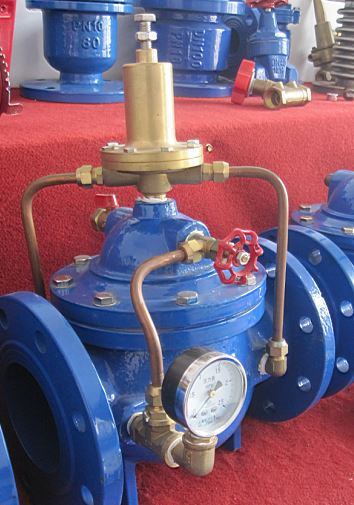

Pressure Relief ValvePressure Discharge & Sustain Valve is used in the pipeline system to prevent of surpassing pressure or to keep the pressure of it, to reduce the water hammer's shock after the pump is closed and also used as a water hammer remover in the large water supply system. A self cleaning filter screen is placed on the inlet of the valve's control system, which stops the suspension grains of the bigger specific gravity and diameter from going into the system by means of the bigger specific gravity of the fluid to ensure the main valve's water supply pressure at the upstream at the set value, and to get the system circulated smoothly without any resistance. This valve features by sensitive open-close, safety, reliability, stable motion and long duration.
Structure |
Diaphragm |
Working Temperature : |
120 degree C |
Working pressure |
PN10/PN16/PN25 |
Power |
Manual |
Tubes |
Brass/Stainless Steel |
Bolts/Nuts |
Stainless steel |
Painting: |
Epoxy powder coating t=250μm |
Body/Cover Material |
Cast Iron, Ductile Iron,Brass, Stainless Steel |
Seat |
Brass or Stainless Steel |
Spring |
Stainless steel |
Size |
DN32-DN80 |
Place of Origin |
Cangzhou China |
Brand Name |
HUAHUI |
Prod Model: |
HC-AX741X |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
Dn50-Dn800(2" to 32") |
Flange Standard: |
DIN,Bs,ANSI,JIS |
Hebei Huahui Valve Co., Ltd (Botou Yaxing Fluid Equipment Co., Ltd) Is located in Botou City Industrial Zone, which is the famous "Casting Town in China". We specialize in designing and manufacturing various kinds of products used in water supply system and fire fighting system, including valves, sewage treatment system, and water meters.
There are 6 series of products with about 300 specifications and they can be designed and manufactured according to GB, DIN, ANSI, BS, JIS and SABS standards. The top-ten kind products of group are gate valve, pressure reducing valve, check valve, strainer, float valve, air valve, hydrant, butterfly valve, ball valve and ductile iron pipe fitting. With 20000 ton of annual production, all of the products have been sold abroad and enjoyed good prestige in the world market.
We always are adhering to the faith of integrity, strengthening our execution to the best service for the old&new customers sincerely.
We follow the ideals of ' Professional, Efficiency, Reliable and Win-win' And take pride in providing our customers with high-quality products and excellent service.
We provide our employees with promising development stage, grow and go forward constantly with our stakeholders.
You are welcome to pay a visit to Huahui-valve.
