Pressure Reducing Valves
Pressure reducing valves are used to set the pressure of a hydraulic circuit below that of the main circuit. In addition, operation under remote control is possible by using the remote control port.

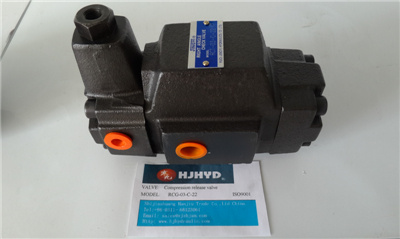

Pressure Reducing and Check Valves
Pressure reducing and check valves are used to set the pressure of a hydraulic circuit below that of the main circuit. They have check valves, which allow a free flow from the secondary side to the primary.
Instructions
To adjust the pressure, loosen the lock nut and turn the pressure adjustment handle slowly clockwise for higher pressures and anti-clockwise for lower pressures. After adjustments, do not forget to tighten the lock nut.
Connect the drain port directly to the tank in which case the pressure at the drain port should be kept at a low back pressure close to the atmospheric pressure.
There are two threaded connection type primary pressure ports. They can be connected each other in-line; one as an inlet and the other as an outlet or the valve can be used by plugging one of the pressure ports.
Shijiazhuang Hanjiu trade Co., Ltd bring lots of the high-standarad equipments and technology of Hydraulic production in the year 2003, specializing in the Hydraulic production.
The company mainly produces hydraulic components like Hydraulic valves, oil cylinders, pumps and systems. All of these hydraulic components can be widely used for mining, metallurgy, steel, chemical industry, enginnering, rubber and plastic, papermaking, agricultural machinery hydraulic oil cylinder, machines and hydraulic systems.
