THINKTANK bellow seal small-caliber single-base regulating valve is of bellows seal construction on its upper valve cap which completely eliminates the possibility of process media leaking outward from motion clearance of the valve rod, this one of distinguished characteristics of the bellows seal valve.
Purpose:

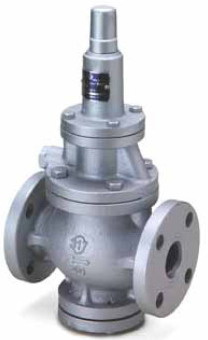

For the pipeline of water supply and drainage system, which need reduce the pressure.
Suitable temperature: ≤ 90º C
According to the different materials, the temperature is
Up to ≤ 250º C
Suitable medium: Water, air, noncorrosion liquid
Advantages:
Directly act on the lower part of the diaphragm (piston) by the valve-back pressure for reducing the pressure and stabilizing the pressure. It is sensitive and can be used for a long time.
Pressure rating: PN (MPa)
1.0 1.6 2.5
Tests:
Test JB/T9092, GB/T13927
Nominal pressure: PN(MPa)
Body: PN x1.5
Seal: PN x 1.1
Materials:
Body: Cast iron, carbon steel
Lower cover: Cast iron, carbon steel
Bonnet: Cast iron, carbon steel
Diaphragm: Nylon reinforcing rubber
Gasket: NBR rubber
Compression: Silicon manganese steel
Spring
Piston: Stainless steel
Cylinder: Liner Stainless steel
NO
|
PART NAME
|
JRV-SF11
|
JRV-SF21
|
1
|
Body
|
CAST IRON
|
CAST CARBON STEEL
|
2
|
Top Cover
|
CAST IRON
|
CAST CARBON STEEL
|
3
|
Main Valve
|
STAINLESS STEEL
|
STAINLESS STEEL
|
4
|
Main Valve Seat
|
STAINLESS STEEL
|
STAINLESS STEEL
|
5
|
Piston
|
CAST BRONZE
|
CAST BRONZE or CAST IRON
|
6
|
Cylinder
|
CAST BRONZE
|
CAST ST.ST
|
7
|
Pilot Valve
|
STAINLESS STEEL
|
STAINLESS STEEL
|
8
|
Pilot Valve Seat
|
STAINLESS STEEL
|
STAINLESS STEEL
|
9
|
Diaphragm
|
STAINLESS STEEL
|
STAINLESS STEEL
|
10
|
Adjust Screw
|
BRASS
|
BRASS
|
11
|
Adjust Spring
|
CARBON STEEL
|
CARBON STEEL
|
12
|
Spring Case
|
CAST IRON
|
CAST IRON
|
1.INLET PRESSURE
|
2~10 kgf/cm2{0.2~1.0MPa}
|
2~20 kgf/cm2{0.2~2.0MPa}
|
2.OUTLET PRESSURE
|
0.35~1.0, 1.0~8.0 kgf/cm2
{0.035~0.1,0.1~0.8MPa}
|
1.0~16.0 kgf/cme
{0.1~1.6MPa}
|
3.MAX REDUCING RATIO
|
10 : 1
|
10 : 1
|
4.WORKING TEMP
|
Max 220 °C
|
Max 300 °C
|
5.WORKING FLUID
|
S
|
S
|
6.CONNECION
|
10KFF Flanged
|
20KRF Flanged
|
