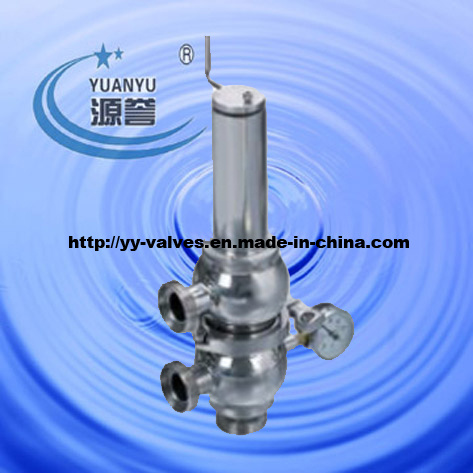

Pressure regulating valve with meter
Size: DN25-50&1"-2"
Standard: DIN, 3A, SMS, ISO, IDF
Material: AISI304&AISI316L
Application
The valve is used on tanks in brewing industry. The purpose of the regualator is to maintain and regulate top pressure in tanks during filling, processing and emptying.
Design
The pressure regualtor comprises a single valve unit including pressure relief valve, pressure supply valve and connection for pressure gauge. On top is a vent port with outlet connection. The modular design is to suit different requirements. Tank connection at side branch is normally connected with extra support by means of bracket fixed on reverse side of valve block. It is also possible to incorate the pressure regulator in a flow panel.
The benefits of the tank pressure regulator are:
-To maintain a constant tank top pressure during filling, processing and emptying
-To ensure a reliavle setting of working pressure
-Fully cleanable with CIP system.
Wenzhou Yuanyu Mechanical Co., Ltd. is the professional manufacturer that producing high-precision sanitary valves, pipe- fittings and fluid equipment. Such as stainless steel sanitary butterfly valve, check valve, diaphragm valve, ball valve, plug valve, pipe-fittings(elbow, tee, ferrule, clamp), stainer, cleaning ball, sanitary pump, and so on.
The products are widely applied in dairy, beer, food, Pharmaceutical, beverage, cosmetics and chemical industry etc areas.
All our products are made from stainless steel 304, 316L And by CNC machine, strictly according to DIN, SMS, ISO, IDF, 3A RJT, DS, BS, BPE industrial standard request.
Great quality and more than ten year experience get many domestic customers' Recognition. We have been supplier of Snowflake beer and Panda group for more than 5 years.
We have exported our products in the international market for 8 years.
In order to meet the demand of expanding market constantly and satisfy the requirements of customers"high quality, low price", yuanyu promotes its quality constantly based on the advanced management system, first-class quality and service, making "yuanyu"become a satisfactory cooperation partner domestically and internationally.
