1) having an upstream inlet
2) and a downstream outlet
3) for the fluid, a pressure-sensitive element

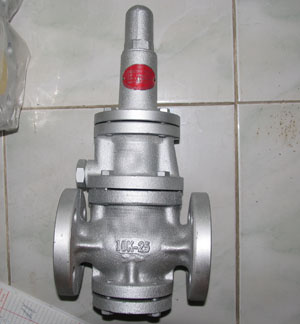

The present invention concerns a regulator valve for regulating fluid pressure and selectably turning flow on or off. The valve has a housing defining a hollow enclosure with inlet and outlet ends. Inside the housing is a seal member and a spool assembly which are movable relative to one another. The spool assembly has a passage through it and is sealed to the housing such that fluid flow from the inlet to the outlet must go through the passage. When the spool assembly engages the seal member the passage is closed and flow through the device is prevented. The spool assembly is exposed to fluid pressure at the outlet end to bias the spool assembly toward the seal member. A spring engages the housing and the spool assembly to bias the spool assembly away from the seal. Balancing of the spring force and fluid pressure controls the separation between the seal member and the passage in the spool assembly, thereby governing the pressure at the outlet of the regulator valve.
Shanghai ThinkTank Process Management Co., Ltd. is the sole production and R&D institute of Taiwan STONE Company in Mainland China. ThinkTank entered Chinese market in 2002 and moved from Hangzhou to Shanghai headquarter in 2012. Based on over 30 years experience in researching and manufacturing automatic instruments, brining in overseas advanced technology and combining domestic users real working situation, ThinkTank is specialized in producing new typed self-regulating valves, control valves and various kinds of automatic instruments. ThinkTank's business includes engineering projects such as electricity, metallurgy, petrochemical processing, light industry and building materials, municipal water service and natural gas.
Enterprise history
1985.08 Taiwan STONE company was established in Taipei city.
1990.02 Sales network covered Southeast Asia.
2002.06 Branch office was fund in Hangzhou, Zhejiang, handling all business in China
2012.10 Mainland head office was moved to Pudong, Shanghai
Shanghai ThinkTank Process Management Co., Ltd. Has a professional team works for control valves design and engineering application. ThinkTank develops a series of hi-tech products after absorbing overseas advanced technology and innovating.
*New self-regulating, micro pressure, differential pressure, flow, temperature control valve
*New pneumatic (electric) linear actuator (low dB, high pressure) control valve
*Pneumatic (electric) rotary actuator (O/V ball, butterfly) control valve
*Pneumatic (electric) special corrosion resisting control valve
Shanghai ThinkTank Process Management Co., Ltd sticks to the policy of "client oriented, quality comes first, and faith is root". Depending on many years experience on engineering application in various industries, ThinkTank provide clients with good, reliable full service, focusing on maximizing the rate of return on investment for clients.
