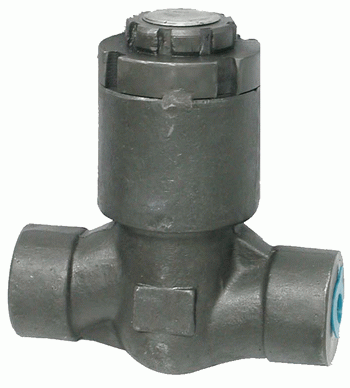

Pressure Seal Check Valve Thead (FCAXTH-PS)
| Price: |
Negotiable |
| Trade Terms: |
by sea, by air |
| Min Order: |
1 |
| Pay Type: |
L/C,T/T |
DESIGN DESCRIPTION:
* LIFT TYPE;
* BOLTED COVER;
* OPTIONAL: WELD COVER;
* SPRING LOADED DISC OR PISTON DISC;
* CONNECTRION: THREADED END, SOCKETED END
* THREAD TYPE(NPT, BSPT, DIN SERIAL ENDS)
* MATERIAL:
A105, F304, F316, F11, F22, F304L, F316L
| WORKING TEMPERATURE |
| MATERIAL | CELSIUR SCALE | FAHRENHEIT |
| CARBON STEEL | -29 0 C~425 0 C | 6 0 F~822 0 F |
| STAINLESS STEEL | -40 0 C~550 0 C | 15 0 F~1047 0 F |
GENERAL DESIGN SPECIFICATIONS:
| ITEM | CLASS 2500 |
| MANUFACTURE | API 602 |
| PRESSURE-TEMPERATURE RATINGS | ANSI B16.34 |
| INSPECTION AND TEST | API 598 |
| ANSI | SHELL (WATER) | SEAT (WATER) | SEAT (AIR) | BACK SEAT (WATER) |
| CLASS 2500 | 65.9MPA | 9375PSI | 48.3MPA | 6875PSI | 0.6MPA | 80PSI | 48.3MPA | 6875PSI |
| | | | | | | | | |
TEST PRESSURE TO API 598
| ANSI | SHELL (WATER) | SEAT (WATER) | SEAT (AIR) | BACK SEAT (WATER) |
| CLASS 2500 | 65.9MPA | 9375PSI | 48.3MPA | 6875PSI | 0.6MPA | 80PSI | 48.3MPA | 6875PSI |
TRIMS SPECITIED DUE TO TABLE 3:
| |
|---|
| DISC SEAT SURFACE PART NO.2 | BODY SEAT SURFACE PART |
| F6 | F6 |
| STELLITE | STELILITE |
| F6 | STELILITE |
| F304 | F304 |
| F316 | F316 |
| MONEL | MONEL |
| ALLOY 20 | ALLOY 20 |
| HASTELLOY B | HASTELLOY B |
| OTHER MATERIALS ARE AVAILABLE UPON REQUEST. |
PARTS AND MATERIAL (ASTM)
| NO. | PARTS NAME | MATERIALS |
| 1 | BODY | ASTM A105 | ASTM F304 | ASTM F316 |
| 3 | SEALING SEAT | ASTM F6 | ASTM F304 | ASTM F316 |
| 4 | SEALING RING | SS304 | SS316 |
| 5 | RETAINING NUT | ASTM A105 | ASTM F304 | ASTM F316 |
| 6 | O-RING | CARBON STEEL |
| 7 | P.S.LOCK NUT | ASTM A194-2H | ASTM A194 B8 |
| OTHER MATERIALS ARE AVAILABLE UPON REQUEST. |
DIMENSIONS LIST(UNIT:MM):
| DN | SIZ | S(THREAD) | S(SOCKET) | L1 | L |
| 15 | 1/2" | 1/2" | 21.8 | 9.6 | 186 |
| 20 | 3/4" | 3/4" | 27.1 | 12.7 | 186 |
| 25 | 1" | 1" | 33.8 | 12.7 | 186 |
| 32 | 1-1/4" | 1-1/4" | 42.6 | 12.7 | 232 |
| 40 | 1-1/2" | 1-1/2" | 48.7 | 12.7 | 232 |
| 50 | 2" | 2" | 61.1 | 15.9 | 279 |
Shanghai Ciphy Industry Co., Ltd. Is specialized in export of various valves, pipe, fittings, flanges and plate & sheet in china; All product must be tested and inspected by our engineer; We are very luck that to day our product is no wrong for our every customers.
Our product as follows:
Standard: ANSI Standard, BS Standard, DIN Standard, JIS Standard etc.
Material: Cast Iron(A126 FC20, GG20), Ductile iron(FCD45, GGG40), Malleable iron, Cast Steel(A216-WCB, A352-LCB, A217-WC1/WC5/WC6/WC9), Forged Steel(A105, F5, F11, F22, LF2), Stainless Steel(A351 CF8/CF8M/CF3/CF3M, A182 F304/F316/F304L/F316L), Alloy steel(ALLOY20), Titanium alloy, etc.
Size: From 1/2 inches to 48 inches from 15mm~1200mm.
Valve: Gate valve, Globe valve, Check valve, Ball valve, Butterfly valve, Plug valve, Chose valve, Needle valve, Knife gate valve, resilient gate valve, bellow globe valve, etc.
Flange: Welded Neck, Slip-on, Socked Weld, Lap Joint, Blind, Threaded, etc.
Fitting: 45D, 90D & 180D Elbow, Reduced & Equal Tee, Concentric & Eccentric Reducer, Cap, etc.
Connect: Flanged ends, Butt-welding ends, Socket welding ends, Threaded ends, etc.
Pressure grade: ANSI CLASS 125, CLASS 150, CLASS 300, CLASS 600, CLASS 800, CLASS 900, CLASS 1500, CLASS 2500, DIN PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160, JIS 5K, 10K, 20K, etc.
Moreover, we are also engage in processing trade; We can manufacture the products exactly as per the custormer's specific requirements such as nominated trademark and marking, the customer's own technical drawings, etc.
If you find anything interesting here, please do not hesitate to contact us. What you will get is quality products with competitive prices. If you require something not included in this catalogue, please also let us know. With the help of several cooperate factories.
Look forward to having a chance to serve your esteemed company.
