Applicable/Product Standards:
Steel gate valve Design: API 600 / API 6D / BS1414
Steel gate valve: ISO 10434 / ISO 14313
Steel gate valve: ASME B16.34
Face to Face according to: ASME B16.10
Flanges Ends according to: ASME B16.5
Butt Welding Ends according to: ASME B16.25
Inspection and Testing according to: API 598 / API 6D
Design/Production Description:
· Meet design requirements of ANSI B16.5, B16.34, B16.10, BS1414
B16.25 (for NPS≤ 24), MSS SP-44(for NPS>24), API-600 or API 6D
· Inspection and Test: Accord with API 598
· Full range of body/bonnet & trim materials
· Choice of solid, flexible or split wedge design
· Back seating design
· Upset forged T-head stem design
· OS&Y construction
· Renewable seat rings--seal welded
· Full port design
· Full length wedge guides
· Optional impact hand wheel
· Optional lengthen stem

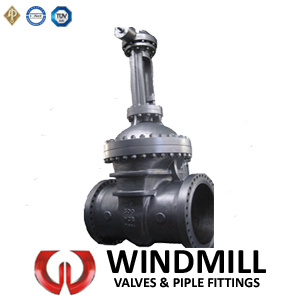

Gate Valve Series
A gate valve, also known as a sluice valve, is a valve that opens by lifting a round or rectangular gate/wedge out of the path of the fluid.
The distinct feature of a gate valve is the sealing surfaces between the gate and seats are planar.
The gate faces can form a wedge shape or they can be parallel.
Typical gate valves should never be used for regulating flow, unless they are specifically designed for that purpose.
On opening the gate valve, the flow path is enlarged in a highly nonlinear manner with respect to percent of opening.
This means that flow rate does not change evenly with stem travel. Also, a partially open gate disk tends to vibrate from the fluid flow.
Most of the flow change occurs near shutoff with a relatively high fluid velocity causing disk and seat wear and eventual leakage if used to regulate flow.
Typical gate valves are designed to be fully opened or closed.
When fully open, the typical gate valve has no obstruction in the flow path, resulting in very low friction loss.
WINDMILL Gate Valve Feature:
Full Port Design
OS&Y, Outside Screw and Yoke
BB, Bolted Bonnet
PSB, Pressure Seal Bonnet
Flexible Wedge, Fully Guided
Choice of Solid or Split Wedge
Size: 2"-48"
Pressure: 150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB
Connection: Flanges, RTJ Flange, Butt Weld, Groove
Material:
Carbon Steel, Forged Steel, Stainless Steel: WCB, LCB, LCC, LC1, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12, C12A
Specifical Material:
Duplex Steel, Super Duplex Steel, Inconel: GR4A, GR6A, CY-40, Inconel 600
Operate: Handwheel, Wormgear, Gearbox, Penumatic Actuator, Electric Actuator, Hydraulic Actuator.
Wenzhou Windmill Valve Co., Ltd., a valve manufacturer, located at China famous Pump&Valve Town--Oubei, Wenzhou. Our factory specialized in all kinds of
industrial valves, consistent conformed to international and national standards, we have gained worldwide market. The past years, 90% of our products offered for Europe, America, Middle East, Southeast Asia.
Product quality and service reliability are essential to the success of our business, we stric tly control every procession such as the purchasing of raw material, the development of innovative designs and the advanced checking method and so on, we consider it is our company's life to give every customer fully satisfaction.
Products range: ball valve, gate valve, check valve, globe valve, ect.
Pressure range: Class150-Class2500, Size range: 1/2"-42"
Temperature: -196 to 649 (-3200F to 12000F)
Operation type: manual, gearbox, chain wheel, pneumatic, electronic, hydraul IC-pneumatic etc.
Connection End: RF, BW, SW, NPT, wafer type, etc.
Materials (casting): WCB, WCC, LCB, LCC, LC1~3, CF8, CF3, CF8M, CF3M, CF8C, CN7M,
CA15, C5, WC5, WC6, WC9, GR4A, etc.
Materials (forging): A105, LF1, LF2, F11, F22, F5, F304, F304L, F316, F316L, F316H, F321,
F347, F51, F60, etc.
According to the different project and different medium, we effectively meet customer's
requirments with RT, UT, MT, PT test standard. The remarkable quality and service are the
WINDMILL person's forever pursue.
