Pressure seal globe valve:
OS&Y, Rising stem or NRS Stem structure
Pressure seat Bonnet, Threaded or welded seat ring, better seal for better pressure
High pressure self sealing globe valves has following advantages:
Self seal structure can make high pressure valve body, the valve cover joint structure compact, save labor and material, safe and reliable.
Product Details |
Design and Manufacture |
ANSI B16.34, BS1873 |
Face to face(end to end) |
ANSI B16.10 |
Flanged connection |
ANSBI B16.5 |
Butt welded end |
ANSI B16.25 |
Test and inspection |
API598 |

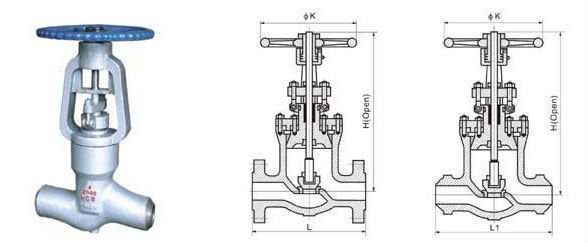

Dimensions |
Class 1500 |
Size |
inch |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
L-L1 |
mm |
368 |
419 |
470 |
546 |
673 |
705 |
832 |
991 |
L1-SP |
mm |
216 |
254 |
305 |
405 |
483 |
559 |
711 |
864 |
H |
mm |
565 |
580 |
380 |
800 |
825 |
1130 |
1450 |
1535 |
K |
mm |
300 |
350 |
400 |
450 |
450 |
450 |
450 |
500 |
WT |
Kg |
80 |
90 |
115 |
160 |
300 |
410 |
650 |
1150 |
NO. |
Part name |
WCB |
LCB |
WC6 |
WC9 |
08 |
Stud and nut |
A193 Gr B7/A194 Gr 2H |
A193 Gr B7/A194 Gr 4 |
A193 Gr B16/A194 Gr 4/7 |
A193 Gr B16/A194 Gr 4/7 |
07 |
Gland packing |
Graphite |
Graphite |
Graphite |
Graphite |
06 |
Gasket |
Soft lron |
Soft lron |
Ss304 |
Ss304 |
05 |
Thrust ring |
A105 |
A182 F304 |
A182 F11 |
A182 F22 |
04 |
Back up ring |
A105 |
A182 F304 |
A182 F11 |
A182 F22 |
03 |
Yoke |
A216 Gr WCB |
A352 Gr LCB |
A271 Gr WC6 |
A271 Gr WC9 |
02 |
Bonnet |
A216 Gr WCB |
A352 Gr LCB |
A271 Gr WC6 |
A271 Gr WC9 |
01 |
Body |
A216 Gr WCB |
A352 Gr LCB |
A271 Gr WC6 |
A271 Gr WC9 |
