Pressure Seal Globe Valve

Pressure Seal Globe Valve
Price: Negotiable
Min Order: 1

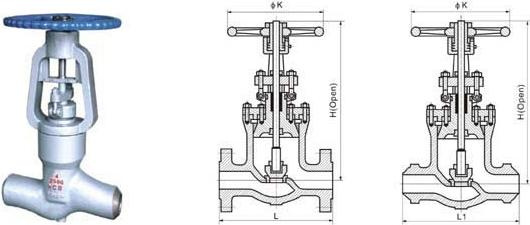

CLASS 600~2500 PRESSURE SEAL GLOBE VALVE

OS&Y, Rising stem, Plug Disc

Pressure sealing Bonnet, Threaded or welded seating

ASTM A216 WCB, A217 WC6, A351CF8, A351CF8M,

A351 CF3, A351 CF3M, A351 CN7M

Standards compliance

Design and Manufacture: ANSI B16.34, BS1873

Face to face(end to end): ANSI B16.10

Flanged connection: ANSI B16.5

Butt welded end: ANSI B16.25

Test and inspection: API598.

A. Back up ring: Absorbs thrust applied by internal pressure

B. Thrust ring: Protects the soft metallic gasket from deformation

C. Gasket: Unique angular design provides superior sealing
WE WOULD LIKE TO DO OEM PRODUCTS FOR YOU.

Shanghai Bangpu Industrial Group Co., Ltd is a big enterprise specializing in the multi-operation of the R&D and production of various fluid transfer equipments. Our main activities include pumps, valves, water supply system package. Waste water treatment, enviromental protection equipments, accessories are also within our main business area. We have about 2000 employees.

In 2008, Bangpu Group acquired Shanghai Electrical Machinery Factory and embarked on a high speed growth path.

We have a highly professional and trained technical team. We have self-researched products and some products' key parts are processed by self-researched special machine tools. Our engineers have a solid foundation especially within the water industry. We apply Computational Fluid Dynamics design, strict quality control and testing system. We promote eco-friendly design by using our Y3 series high efficiency motors which can reduce noise pollution to the least.

Bangpu has an extensive network of sales representatives around the globe who can help choose the most cost-effective products to cater for your needs. With Bangpu people's passion for work and professional working attitude, we assure you of our exceptional products with quality.
