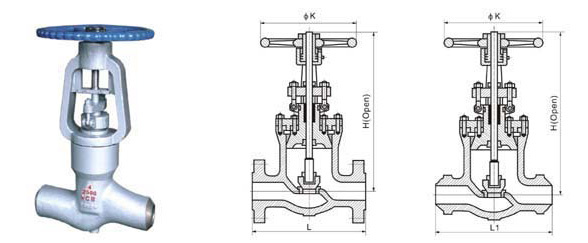

CLASS 600~2500 Pressure Sealed Globe Valve
OS&Y, Rising stem, Plug Disc
Pressure sealing Bonnet, Threaded or welded seating
ASTM A216 WCB, A217 WC6, A351CF8, A351CF8M,
A351 CF3, A351 CF3M, A351 CN7M
Standards compliance
Design and Manufacture: ANSI B16.34, BS1873
Face to face(end to end): ANSI B16.10
Flanged connection: ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598.
A. Back up ring: Absorbs thrust applied by internal pressure
B. Thrust ring: Protects the soft metallic gasket from deformation
C. Gasket: Unique angular design provides superior sealing
|
Class 900 |
|
Size |
inch |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
|
L-L1 |
mm |
368 |
419 |
381 |
457 |
559 |
610 |
737 |
838 |
965 |
|
L1-SP |
mm |
225 |
254 |
305 |
365 |
432 |
508 |
660 |
787 |
914 |
|
H |
mm |
550 |
580 |
675 |
750 |
815 |
1085 |
1300 |
1420 |
1825 |
|
K |
mm |
300 |
350 |
350 |
500 |
500 |
350? ont |
350? ont |
400? ont |
450? ont |
|
WT |
Kg |
70 |
85 |
105 |
130 |
255 |
315 |
670 |
925 |
1200 |
|
Class 1500 |
|
Size |
inch |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
|
L-L1 |
mm |
368 |
419 |
470 |
546 |
673 |
705 |
832 |
991 |
|
L1-SP |
mm |
216 |
254 |
305 |
405 |
483 |
559 |
711 |
864 |
|
H |
mm |
565 |
580 |
380 |
800 |
825 |
1130 |
1450 |
1535 |
|
K |
mm |
300 |
350 |
400 |
450 |
500 |
600 |
450? ont |
500? ont |
|
WT |
Kg |
80 |
90 |
115 |
160 |
300 |
410 |
650 |
1150 |
|
Class 2500 |
|
Size |
inch |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
|
L-L1 |
mm |
451 |
508 |
578 |
673 |
794 |
914 |
1022 |
1270 |
|
L1-SP |
mm |
279 |
330 |
368 |
457 |
533 |
610 |
762 |
914 |
|
H |
mm |
575 |
605 |
725 |
835 |
875 |
1200 |
1510 |
1720 |
|
K |
mm |
350 |
350 |
350? ont |
400? ont |
400? ont |
400? ont |
450? ont |
550? ont |
|
WT |
Kg |
95 |
110 |
125 |
210 |
565 |
615 |
1050 |
1525 |
