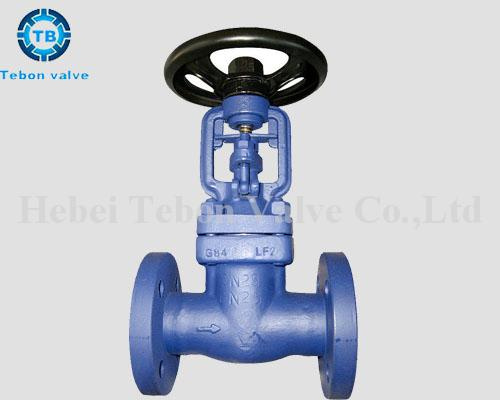

Pressure Seal Stop Valve

Pressure Seal Stop Valve
Price: US $ 120/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union

1 forged steel valve with pressure from the tight seal, valve manifold ends for soldering connection or flange connection.
2 valves sit, the valve sealing surface using cobalt-based alloy plasma spray, wear resistance, abrasion resistance and good performance.
3 Stem nitriding treatment with anti-corrosive, good corrosion resistance and scratch resistance.
Test pressure
( Mpa)
Nominal pressure ( Mpa) ssure stage( Class)
1.6 2.5 4.0 6.4 10.0 16.0 25.0 150 300 400 600 900 1500
Strength test 2.4 3.8 6.0 9.6 15.0 24 37.5 3.1 7.8 10.2 15.3 23.1 38.4
Seal test 1.8 2.8 4.4 7.0 11.0 17.6 27.5 2.2 5.6 7.5 11.2 16.8 28.1
Air-tight test 0.5-0.7
Applicable temperature PTEE ≤ 150 'C PPL E ≤ 300 'C  Carbon ≤ 350 'C
Applicable medium C : Water, oil , steam       P : Nitric acid ( Temp ≤ 200 'C )
R : Acetic acid ( Temp ≤ 200 'C )

Prod Model: TB-J41H
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Structure: Through Way Globe Valve
Stem Thread Position: Outside Screw Stem Globe Valve
Sealing Form: Gland Packings Globe Valve
Standard: BSW
Application: Forged Steel Globe Valve
Material: Forged Steel
Established in 1994, Hebei Tebon Valve Co., Ltd is a company with the business scope of design, R&D, manufacturing and selling. Located in the Development Zone of Shijiazhuang, after 20 years of development, our company now has eight casting and processing production bases, and 930 registered employees. Our company owns a independent R&D center with superior technology strength.

The main products include more than 200 types and thousands of specifications, such as hard sealed butterfly valve, soft sealed butterfly valve, rubber lined butterfly valve, gate valve, stop valve, ball valve, check valve, hydraulic control valve, blind flange valve, electric double layer cinder valve, and other special valves. The nominal diameter is DN15--DN6000 and the nominal pressure is 0.01~42MPa. Our company has many sets of advanced testing equipments to ensure the reliable quality and stability. The products feature in acid and alkali resistance, high temperature resistance, abrasion resistance, which are used in various industries including metallurgy, cement, power plant, chemical, coal, and construction.

Our company adhere to the "strives for the survival by the quality, to the technology strives for the progress, to varieties and development efficiency, with reasonable, credibility of the market" business purposes, is committed to keeping up with advanced enterprises at home and abroad. After efforts to enterprise has achieved great development achievements, the company's products has been the enterprise project is chosen.

We sincerely welcome customers to come to my company guidance and negotiate business, we will provide you with the most excellent products and quality services.
