Pressure-Seal Swing Check Valve 900lb~2500lb
| Price: |
US $ 200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |

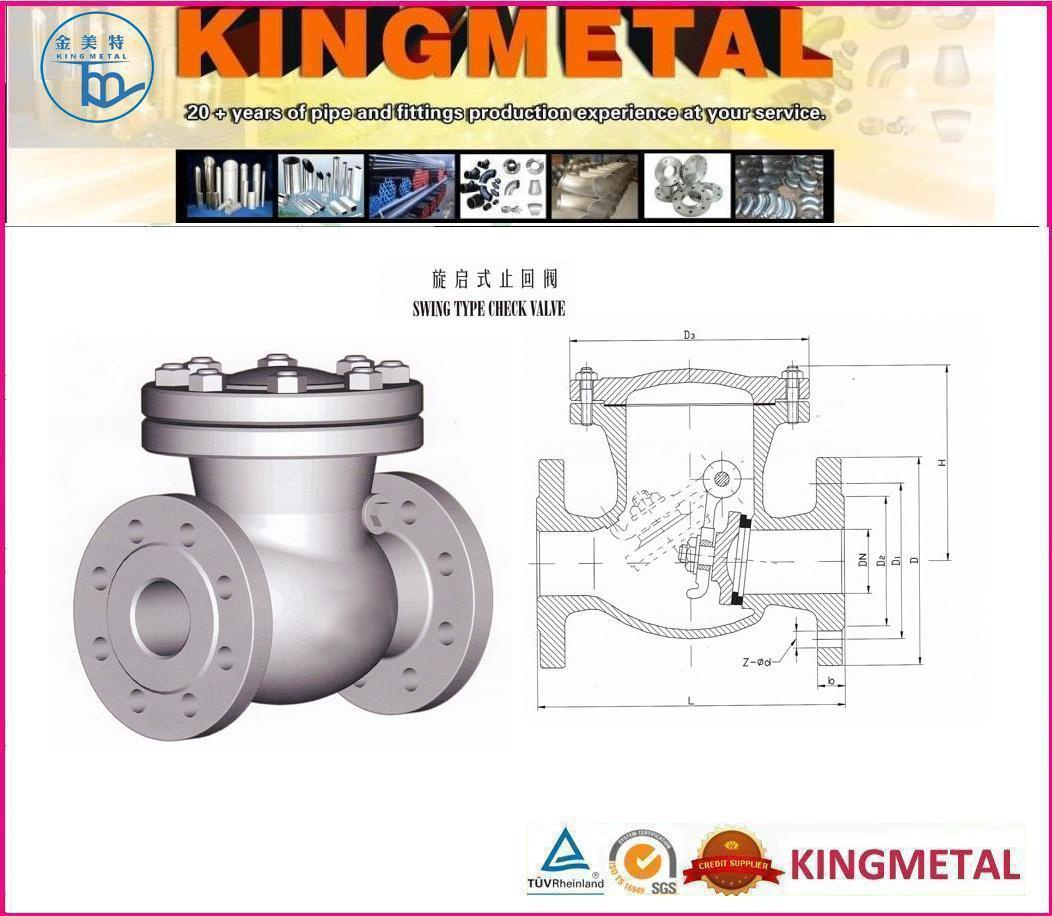

Pressure-seal Swing Check Valve 900Lb~2500Lb
Standard Material Specifications
NO. |
Part Name |
CS to ASTM |
AS to ASTM |
SS to ASTM |
Tyep A105 |
Type F22 |
Type F304(L) |
Type F316(L) |
1 |
Seat Ring |
A276 410 |
A276 304 |
A276 304(L) |
A276 316(L) |
2 |
Pin |
A276 420 |
A182 F304 |
A182 F316 |
3 |
Pressure Ring |
A276 304L |
A276 316(L) |
4 |
Pressure Seat |
A105 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
5 |
Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
6 |
Bonnet |
A105 |
A182 F22 |
A182 F304 L |
A182 F316(L) |
7 |
Bolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
8 |
Quarter Ring |
A276 420 |
A182 F304 |
A182 F316 |
9 |
Pontlevis |
A105 |
A182 F22 |
A182 F304 L |
A182 F316(L) |
10 |
Hinge |
A105 |
A182 F22 |
A182 F304 L |
A182 F316(L) |
11 |
Disc |
A276 420 |
F304 |
A182 F304(L) |
F316(L) |
12 |
Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
Suitable Medium |
W.O.G.etc |
W.O.G.etc |
HNO3,CH3OOH etc |
Suitable Temperature |
-29 425 |
-29 550? |
-29 180 |
Note: Other materials are available upon request.
Dimensions (mm) and Weights (Kg)
NPS |
1/2~ |
3/4~ |
1~ |
1-1/4~ |
1-1/2~ |
2~ |
L |
900~1500Lb |
140 |
140 |
140 |
178 |
178 |
216 |
2500Lb |
186 |
186 |
186 |
232 |
232 |
279 |
H |
117 |
117 |
117 |
152 |
152 |
195 |
Weights |
900~1500Lb |
8.2 |
7.8 |
7.7 |
19.8 |
19.2 |
21.3 |
2500Lb |
10.0 |
9.6 |
9.4 |
21.5 |
21.1 |
22.8 |
| Prod Model: |
KM-06V8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2"~2" |
| Pressures: |
900lb~2500lb |
| Connection Form: |
Flange |
| Structure: |
Swing |
| Function: |
Nrvg Silence |
| Application: |
Water Industrial Usage |
| Material: |
Carbon,Stainless,Alloy |
