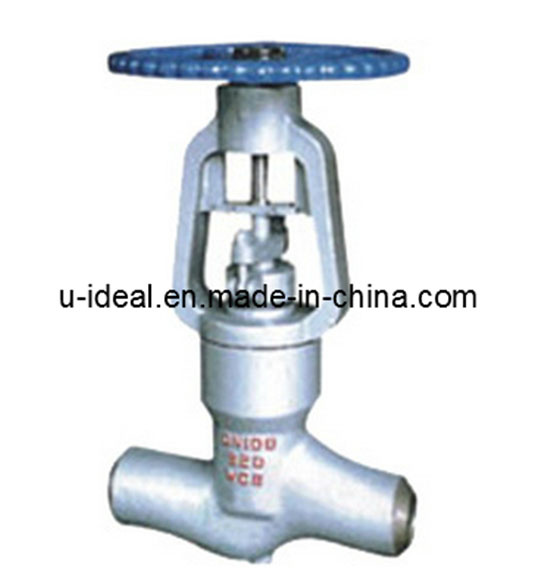

Pressure Seal Type Globe Valve
| Price: |
US $ 70/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Features of Pressure seal globe valve:
1)Standards:
A)Design&Manufacture: BS 1873, ASME B16.34
B)Face to Face: ASME B16.10, DIN 3202, BS2080
C)Connection End: ASME B16.5, ASME B16.11, DIN2543-2551
D)Test and Inspection: ISO5208, BS 6755
2)Sizes: 1/2" - 12" or DN12 - DN300
3)Pressure Rating: Class150 - Class1500 or PN16 - PN250
4)Material: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, etc.
5)Operated by: Handwheel, Gear, Pneumatic, hydraulic and Electric actuator.
Normal Feature
Size Range | NPS1/4"~3" DN8~50mm |
| Class | 150LB~1500LB |
| Material | A105,LF2,F11,F22,F304,F316,F304L,F316L |
| Connection | Socket welding or inner screwed |
| Feature | Full bore or reduced bore,B.B or W.B or pressure seal bonnet,through way,OS&Y |
| Temperature | -160ºC~550ºC |
| Actuator | Hand wheel |
| Application | Oil and gas pipeline
Drainage system
Chemical Plant |
Manufacture Standard
Design | ASME/ANSI B 16.34,API602,BS5352 |
| Face to face | ASME/ANSI B 16.10, |
| SW End Connection | ASME/ANSI B 16.11 |
| Screwed ends connection | ANSI B 1.20.1 |
| Inspection and test | API598 |
| Prod Model: |
Q50Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2" -12" |
| Design & Manufacture: |
BS 1873, Asme B16.34 |
| Face To Face: |
Asme B16.10, DIN 3202, BS2080 |
| Connection End: |
Asme B16.5, Asme B16.11, DIN2543-2551 |
| Material.: |
Wcb, Lcb, Wc6, Wc9, C12, C5, CF8, CF3, CF3m, CF8m, |
| Material: |
Cast Iron |
| Connection Form: |
Thread |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
