Pressure Sealing Globe Valve (Class 600~2500 )
| Price: |
Negotiable/Piece |
| Trade Terms: |
by ship or by customer requirement |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
CLASS 600~2500 PRESSURE SEALING GLOBE VALVE
OS&Y,Rising stem,Plug Disc
Pressure sealing Bonnet,Threaded or welded seating
ASTM A216 WCB,A217 WC6,A351CF8,A351CF8M,
A351 CF3,A351 CF3M,A351 CN7M
Standards compliance
Design and Manufacture: ANSI B16.34,BS1873
Face to face(end to end): ANSI B16.10
Flanged connection: ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection: API598.
A.Back up ring: Absorbs thrust applied by internal pressure
B.Thrust ring: Protects the soft metallic gasket from deformation
C.Gasket: Unique angular design provides superior sealing

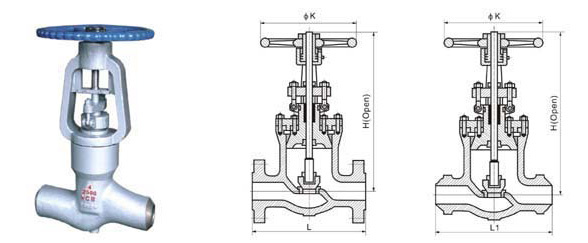

| Dimensions |
| Class 600 |
| Size | inch | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| L-L1 | mm | 292 | 330 | 356 | 432 | 508 | 559 | 660 | 787 | 838 |
| L1-SP | mm | 178 | 216 | 254 | 305 | 381 | 457 | 584 | 711 | 813 |
| H | mm | 510 | 610 | 610 | 725 | 800 | 1010 | 1180 | 1360 | 1780 |
| K | mm | 250 | 300 | 300 | 350 | 500 | 550 | 600 | 600 | 400ont |
| WT | Kg | 38 | 65 | 105 | 105 | 185 | 230 | 410 | 615 | 895 |
| Dimensions |
| Class 900 |
| Size | inch | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| L-L1 | mm | 368 | 419 | 381 | 457 | 559 | 610 | 737 | 838 | 965 |
| L1-SP | mm | 225 | 254 | 305 | 365 | 432 | 508 | 660 | 787 | 914 |
| H | mm | 550 | 580 | 675 | 750 | 815 | 1085 | 1300 | 1420 | 1825 |
| K | mm | 300 | 350 | 350 | 500 | 500 | 350ont | 350ont | 400ont | 450ont |
| WT | Kg | 70 | 85 | 105 | 130 | 255 | 315 | 670 | 925 | 1200 |
| Dimensions |
| Class 1500 |
| Size | inch | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 |
| L-L1 | mm | 368 | 419 | 470 | 546 | 673 | 705 | 832 | 991 |
| L1-SP | mm | 216 | 254 | 305 | 405 | 483 | 559 | 711 | 864 |
| H | mm | 565 | 580 | 380 | 800 | 825 | 1130 | 1450 | 1535 |
| K | mm | 300 | 350 | 400 | 450 | 500 | 600 | 450ont | 500ont |
| WT | Kg | 80 | 90 | 115 | 160 | 300 | 410 | 650 | 1150 |
| Dimensions |
| Class 2500 |
| Size | inch | 2 | 2-1/2 | 3 | 4 | 5 | 6 | 8 | 10 |
| L-L1 | mm | 451 | 508 | 578 | 673 | 794 | 914 | 1022 | 1270 |
| L1-SP | mm | 279 | 330 | 368 | 457 | 533 | 610 | 762 | 914 |
| H | mm | 575 | 605 | 725 | 835 | 875 | 1200 | 1510 | 1720 |
| K | mm | 350 | 350 | 350ont | 400ont | 400ont | 400ont | 450ont | 550ont |
| WT | Kg | 95 | 110 | 125 | 210 | 565 | 615 | 1050 | 1525 |
Established in 1990, Zhejiang Zhiyi Machine Manufacturing Co., Ltd is a professional manufacture of valves. It's located in Yongjia town_"The Hometown of Valves and Pumps", Wenzhou city, 325105, China. It covers about 18, 800 m2 for its building area.
The company has excellent mechanical processing equipment and modernized inspection& testing equipments more than 320 sets.
Main Products:
1. API/ANSI Standard: Ball Valve, Butterfly valve, Gate Valve, Globe Valve, Check Valve, Plug valve
2. DIN standard: Ball valve, Gate valve, globe valve, check valve, strainer
3. Bellows type valve: Globe valve, safety valve, gate valve, and strainer
4. GB Standard: Butterfly Valve, Gate Valve, Safety Valve, Globe Valve, Check valve, Control Valve, Water Control Valve, ball valve, plug valve
5. Flanges
Certificates:
1. API 6D
2. CE/PED Certificate
3. ISO9001: 2000
4. ISO14001: 2004
5. AZ Certificate
6. API607 Certificate
Material:
1. Cast Material: WCB, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M ect.
2. Forged Material: A105, LF2, F11, F22, F304, F316, F304L, F316L, 20ALLOY ect.
Nominal diameter (DN): 15-4500 mm (1/2"-180");
Nominal Pressure (PN): 0.6Mpa-42Mpa (150lb-3000lb);
Standards: API/ANSI, DIN, BS, GB/ISO, JIS
Look forward to establishing a good business relation shipment with you and having a bright future!
