Application standards
Design and manufacture conform to BS5352
Connection ends conform to:
Socket welded ends conform to ANSI B 16.11
Screw ends conform to ANSI B 1.20.1
Butt-welded ends conform to ANSI B 16.25
Flanged ends conform to ANSI B 16.5
Test and inspection conform to: API598

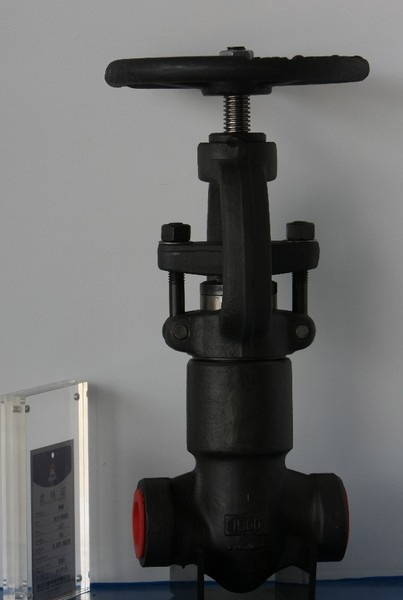

Structure features: Pressure seal bonnet, outside screw and yoke Y type and T type
Main materials: A105; LF2; F5; F11; F22; 304(L); 316(L); F347; F321; F51; Monel; 20Alloy.
|
NO. |
Part name |
A105/F6a |
A105/F6aHFS |
LF2/304 |
F11/6aHF |
F304(L)/
304(L) |
F316(L)/316(L) |
F51/F51 |
|
1 |
Body |
A105 |
A105+HF |
LF2 |
F11+HF |
F304(L) |
F316(L) |
F51+HF |
|
2 |
Disc |
410 |
410 |
304 |
410 |
304(L) |
316(L) |
410+HF |
|
3 |
Stem |
410 |
410 |
304 |
410 |
304(L) |
316(L) |
410 |
|
4 |
Bonnet |
A105 |
A105 |
LF2 |
F11 |
F304(L) |
F316(L) |
F51 |
|
5 |
Pin |
410 |
410 |
410 |
410 |
304 |
304 |
410 |
|
6 |
Gland |
410 |
410 |
304 |
410 |
304 |
316 |
410 |
|
7 |
Gland eyebolt |
B7 |
B7 |
L7 |
B16 |
B8(M) |
B8(M) |
B8 |
|
8 |
Gland flange |
A105 |
A105 |
LF2 |
F11 |
F304 |
F304 |
F51 |
|
9 |
Hex nut |
2H |
2H |
2H |
2H |
8(M) |
8(M) |
8 |
|
10 |
Stem nut |
410 |
410 |
410 |
410 |
410 |
410 |
410 |
|
11 |
Locking nut |
35 |
35 |
35 |
35 |
35 |
35 |
35 |
|
12 |
Nameplate |
AL |
AL |
AL |
AL |
AL |
AL |
AL |
|
13 |
Hand wheel |
A197 |
A197 |
A197 |
A197 |
A197 |
A197 |
A190 |
|
14 |
Packing |
Graphite |
Graphite |
Graphite |
Graphite |
Graphite |
Graphite |
Graphite |
|
15 |
Stem pad |
420 |
420 |
420 |
420 |
316SH |
316SH |
420 |
|
16 |
Disc nut |
410 |
410 |
410 |
410 |
304(L) |
316(L) |
410 |
|
17 |
Seal ring gasket |
420 |
420 |
304 |
304 |
304(L) |
316(L) |
316(L) |
|
18 |
P. S. ring |
304 |
304 |
304 |
304 |
304 |
316 |
304 |
|
19 |
P. S. seat |
420 |
420 |
304 |
304 |
304(L) |
316(L) |
F51 |
|
20 |
Nut pad |
410 |
410 |
410 |
410 |
410 |
410 |
410 |
|
21 |
Draw-in nut |
Cast steel |
Cast steel |
Cast steel |
Cast steel |
Cast steel |
Cast steel |
Cast steel |
