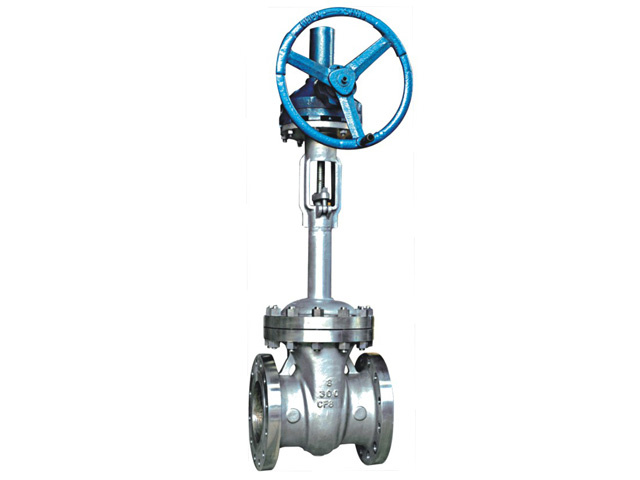

Professional Manufacturer of Cryogenic Gate Valve
Price: |
US $ 62-16580/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
T/T |
Technical Details of Cryogenic Gate Valve
Design: API 6D, BS 5351, BS6364, ASME B16.34, API607, API6FA, BS6755 (Cryogenic Ball Valve); API 600, API603, API 6D, API 623, ASME B16.34 (Cryogenic Gate Valve); API 600, BS1873, ASME B16.34 (Cryogenic Globe Valve); ASME B16.34, BS 1868, API 602, API 594,API 6D, BS1873 (Cryogenic Check Valve), JIS B2001-1987, JIS B2071-2000
Face to Face: ASME B16.10, BS2080, ISO5752, DIN 3202-F4/5, JIS B2002-1987
Flange End: ASME B16.5 BSEN 1092, ISO7005, DIN2501, DIN EN 1092-1
BW End: ASME 16.25
Inspection & Test: API598, BS EN 12266, ISO5208, JIS B2003-1994
Pressure Rating: 150-2500LB; NPS: PN 16-PN420
Size: NPS 2-40"; DN 50-1000
Working Temp.: -196 degrees to -46 degrees
Actuation: Hand wheel, Worm Gear, Electric, Pneumatic, Hydraulic
Materials of CryogenicValve
Body Material: LCB, LF2, LF3, CF8, CF8M, F304, F316, F304L, F316L
Prod Model: |
2-40" inches |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
2--40 Inches: |
150lb--2500lb |
Connection Form: |
Flange |
Material: |
Carbon Steel |
Seal Surface: |
Wedge Gate Valve |
Thread Position Of Valve Rod: |
Inside Gate Valve |
Application: |
Household Usage |
Located in Shanghai Jiading Industrial Zone, boasting an area of 55, 328 square meters, Kaigong Group/Shanghai Kaigong Valve Co, . Ltd was established in Shanghai in the year of 2000. The company has professional technical personnel for designing and manufacturing, and is equipped with all kinds machining equipment and testing devices (the first cryogenic valve testing equipment in China).
Kaigong Valve has 270 employees including 8 senior technicians and 39 engineering technicians. Shanghai Kaigong Import & Export Trade Co., Ltd., a subsidiary company of Kaigong Group, was established in 2003. It's the unique professional international trading company for Kaigong Group.
Certificated with DNV ISO 9001: 2008, ISO 14001, CE, API6D, API6FA, API607, Kaigong is a member of China General Machinery Valve Industry Association, the strategic cooperative enterprise and approved vendor of Petro China, CNOOC and SINOPEC, the designated manufacturing enterprise of chemical equipment, and also a member of China City Gas Association. Kaigong manufactures ball valve, butterfly valve, gate valve, globe valve, check valve. The products are widely applied in petroleum, petrochemical, electricity, coal chemical industry, LNG, olefin, natural gas, steel, pharmaceutical industry, high-temperature refining, oil refining, coking, long-distance pipeline, oil field, marine project and power plant. The nominal pressure of the products ranges from PN1.0 MPa to 80MPa, inside nominal diameter from DN15 mm to 2500mm; And the applicable temperature from -196 degrees to 810 degrees. Kaigong produces valves of all standards such as API, GB, JB, ANSI, JIS, BS, DIN and etc, .
Shanghai Kaigong Valve is in the approved vendor list of CNPC and SINOPEC, Chem China and big overseas energy companies. Meanwhile, We are the brand supplier and OEM manufacturer for many international projects in South & North America, European, Middle East area, Asia and Latin America. Kaigong valves and pipe fittings are widely applied in industrial fields such as oil, gas, chemical, water, power, mining, agricultural, metallurgy.
Maintaining the ideology of "Repay Customers with Cutting-Edge Technologies", Kaigong has established the R&D Center (state level) headed by experts with state research institutes.
Quality, Technology, and Responsibility---Kaigong is your reliable partner.
