Professional Stainless Steel Sewage Pump with CE Certificate
| Price: |
Negotiable |
| Min Order: |
1 |

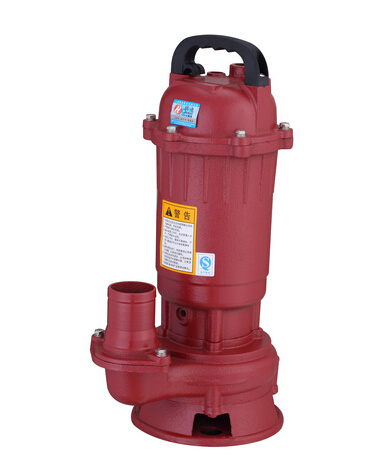

Electric Submersible Sewage Water Pump
Application
Applying for building site, hote;,restaurant, ship, mine, urban sewage, dejecta discharge, garden and farm irrigation. It can also be used for transporting liquid feed for fishing aquaculture and dilute paper pulp.
Operating limits
Submersible depth:5m
Max. medium temperature+40ºC
Max. ambient temperature+40ºC
Max. pressure: 6 bar
Material and working limits
Pump body: Cast iron
Motor housing: Stainless steel
Impeller: Cast iron
Motor wire:Copper
Mechanical seal: Ceramic& Graphite
Shaft: 45#steel/stainless steel
Insulation class: F
Protection class: IP68
| Model | Power | Q.Max | H.Max | Inlet/Outlet | Vol./Fre. | G.W. | Packing dimension | 20GP |
| [Kw] | [HP] | [L/min] | [m] | [inch] | [V/Hz] | [kg] | [mm] | [pcs] |
| V180F | 0.18 | 0.25 | 133 | 7 | 40 32 25 | 220/50 | 8.5 | 200×190×400 | 1840 |
| V250F | 0.25 | 0.35 | 150 | 7.5 | 40 32 25 | 220/50 | 9.5 | 200×190×400 | 1840 |
| V370F | 0.37 | 0.5 | 183 | 7.5 | 40 32 25 | 220/50 | 10 | 280×210×490 | 970 |
| V450F | 0.45 | 0.6 | 200 | 8.5 | 40 50 | 220/50 | 17.5 | 280×210×490 | 970 |
| V550F | 0.55 | 0.75 | 200 | 8.5 | 40 50 | 220/50 | 18.5 | 280×210×490 | 970 |
| V750F | 0.75 | 1 | 300 | 12 | 40 50 | 220/50 | 20.5 | 280×210×570 | 830 |
| V1100F | 1.1 | 1.5 | 400 | 9 | 40 50 | 220/50 | 22.5 | 280×210×570 | 830 |
Taizhou Leilong Electomechanical Co., Ltd is a professional manufacturer of submersible pumps, sewage pump, self-priming pump, screw pump, Oil pump, inline pump, etc. They are widely used in farmland irrigation and drainag, domestic water, city sewage, machinery, coal, chemical, metallurgy, the fields of energy, and environment protection, etc. Also all kinds of pumps sell well all over China as well as 50 countries and regions...
Our business purpose is "Today's quality is tomorrow's market", adhering to the "advanced technology, high quality and efficiency, customer first, integrity compliance, " the operating principle of full implementation of the creative word of mouth strategy, won the praise of the community. We warmly welcome all the friends at home and abroad to establish long-term friendly trade relations of cooperation, hand in hand, create more brilliant tomorrow!
