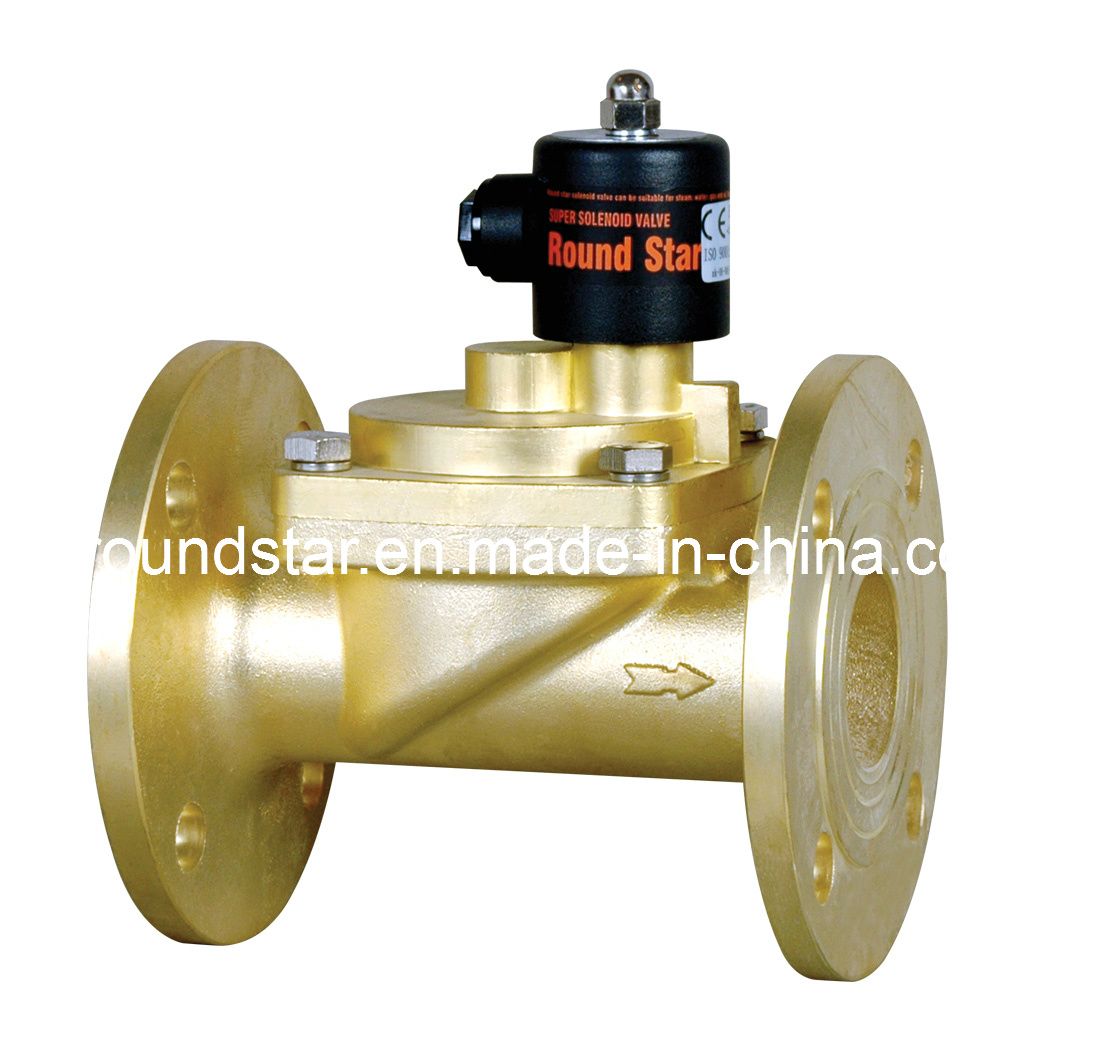

PS Series Steam Brass Flange Solenoid Valve

PS Series Steam Brass Flange Solenoid Valve
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: T/T,Western Union
2/2 Way PS Series Solenoid Valve, G1/2" ÷ G2"

[Technical Specifications ]
-- Media: Steam, water, hot water, air, oil (below 20cst)
--Function type: Normally Closed (N/C), Normally Open (N/O)
--Pressure: Normally Closed 16 bar, Normally Open: 10 bar
--Temperature: -5 ÷ 180ºC
--Mode of action: Pilot operated
--Body material: Brass
-- Sealing material: PTFE
--Protection class: IP54

Model PS-15 PS-20 PS-25 PS-32 PS-40 PS-50 PS-25F PS-32F PS-40F PS-50F   PS-40cF PS-50F PS-65F
G  Connection G"   & frac12 G  ; & frac34;     G1" G1¼ G1½ G2" Brass  flange Brass  flange Brass  flange Brass  flange Cast  iron
flange
Cast  iron
flange
Cast  iron
flange
Orifice  Size mm 15 20 25 32 40 50 25 32 40 50 40 50   65
Cv  Value 4.5 7.6 12 22 30 48 12 22 30 48 30 48 56
L mm 70 75 92 110 122 161 118 140 150 185 150 185   256
H mm 135 142 150 150 155 174 187 204 210 230 210 228   278
Medium  temperature  -5  ~180& ordm; C

Pressure bar Normally  Closed:   0.4  ~  16;           Normally  Open:   0.4  ~  12
Power  AC: 220V~AC: 230V/50-60HZ      22VA;     AC110  ~AC: 120V/50-60HZ    19VA;     DC24    10  W;     DC12        9W  ;     Range: ± 10%
Prod Model: PS Series Steam Solenoid Valve
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Pilot Operated
Connection Form: Flange
Valve Structure: Pilot Piston Structure
Power Supply: AC Solenoid Valve
Application: Household Usage
Our factory was founded in 1965. Through 50 years of development, we have become one of the most professional manufacturers of solenoid valves.

With great confidence in our products and services, our factory has obtained orders from all over the world. Our customers are from Australia, USA, Spain, Mexico, Saudi Arabia, Ireland, German, France and Canada.

Our factory manufactures the products as per the ISO9001 quality management system and CE, RoHS, TUV, FDA standards. Our factory has been equipped with advanced processing machines, including CNC digital controlled apparatus. We have a strong R&D team to research and customize products to cater various requirements of customers.

We have been persisting in providing our customers with superior quality products and perfect services by constantly innovating and self-improvement. Customer satisfaction is our unswerving pursuit.
