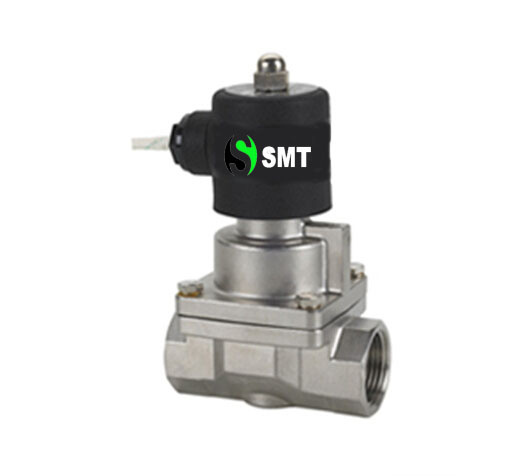

Medium: Steam, air, liquid, oil
Medium temperature: -5 ~ 180 º C
Action by: Pilot
Working Pressure: Normally closed: 0.4 ~ 16 kgf / cm2;
Normally Open: 0.4 ~ 10kgf / cm2;
Body material: Stainless steel (precision casting)
Piston seals, sealing material: PTFE (polytetrafluoroethylene)
Coil protection factor: Steel coil IP54
Special order:
Too hot or at room temperature media, you can buy Viton seals (Viton), the order indicated in V, which can reach a maximum temperature of the medium 150 º C;
Type
| PS-8
| PS-10
| PS-15J
| PS-20J
| PS-25J
| PS-32J
| PS-40J
| PS-50J
| PS-15JF
| PS-20JF
| PS-25JF
| PS-32JF
| PS-40JF
| PS-50JF
|
Joint Size
| G1/4
| G3/8
| G1/2"
| G3/4"
| G1"
| G1½
| G1¼
| G2"
| Flange | Flange | Flange | Flange | Flange | Flange |
Orifice
| mm
| 8
| 10
| 15
| 20
| 25
| 32
| 40
| 50
| 15
| 20
| 25
| 32
| 40
| 50
|
Cv Value
| 1.8
| 3.1
| 4.5
| 7.6
| 12
| 22
| 30
| 48
| 4.5
| 8.6
| 12
| 22
| 30
| 48
|
Length
| mm
| 50
| 50
| 70
| 75
| 94
| 111
| 122
| 167
| 106
| 106
| 135
| 140
| 148
| 182
|
High
| mm
| 98
| 98
| 135
| 142
| 152
| 166
| 170
| 194
| 164
| 166
| 190
| 218
| 228
| 243
|
Working temperature
| -5~180
|
Working pressure
| bar
| NC: 0.4 ~ 16; NO: 0.4 ~ 8
|
Max pressure
| bar
| 20
|
rated voltage
| 220VAC:/50HZ 22VA; 110 VAC/50HZ 19VA; DC24 10 W; DC12 9 W ; Fluctuate : ± 10%; other voltages can be customized |
