Overview:
MBIM Lined Ball Valves are generally made from Grey Cast Iron, Cast Ductile Iron
Carbon Steel or Stainless Steel with lining. It is a Full Port, Two PC design, Bolted Body
Construction with Integral Ball Stem Unit, Replaceable Seat, Bubble Tight Shut Off, Glandless
Design, Maintenance Free, Full Flow Efficient, Low Torque manually lever operated for easy
Operation.
Size Range: 15mm to 400mm
Feature & Benefits:
Liner Locking
The PTFE, FEP, PFA, PVDF, PP, PE or PO lining is securely locked into the deep machined groove
Slot into the body & holes in casting ball. This prevents liner to collapse or blow out under
Full vacuum/high pressure applications & high temperature.

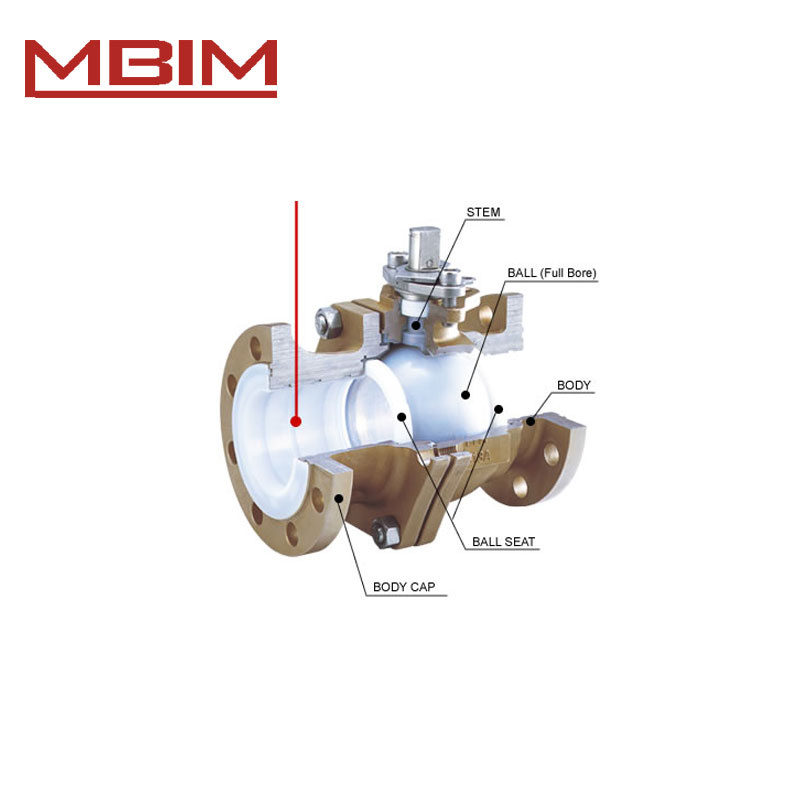

Integrated Ball & Stem
Encapsulated one PC design ball & stem. Rupture-proof ball & stem joint. Ensure trouble free frequent operations.
Two PC Design Body
Two PC design bolted body construction with WCB or stainless steel fasteners, minimize
The joint leakages.
Low Torque Operation
The contact area (sealing area) of ball with seat is very less, thus operating torque is
Much lower than the plug valve. Lever is compactly designed to operate the valve with very
Low torque.
Standard Design
MBIM Lined Ball Valves are designed in accordance with flange dimension of ANSI B16.5 & face to face dimension of GB/T 12221.
Lining Specifications:
Lining Material
We offer lining materials like PTFE, FEP, PFA, PVDF, PE, PO, PP.
Temperature:
PTFE Max: 260° C
FEP Max: 204° C
PFA Max: 260° C
PVDF Max: 140° C
PO Max: 80° C
PE Max: 70° C
PP Max: 120° C
Lining Thickness
Min. 3.0mm
Spark Test
Body liners & all wetted parts are spark tested at 15, 000 Volts
The body material is generally, Grey Cast Iron, Cast Ductile Iron, Cast Steel and alternatively
We offer completely SS304, SS304lL, SS316, SS316L.
Standard Followed:
Manufacturing: API 6D
Testing: API 598
Flange dimensions: ANSI B16.5
Face to Face: GB/T12221
Optional Accessories:
MBIM Lined Ball Valve can be offered with following optional accessories.
Positioner
Pneumatic Actuator
Electrical Actuator
Limit Switch
Gear Box
Wrench
Air Filter Regulator
