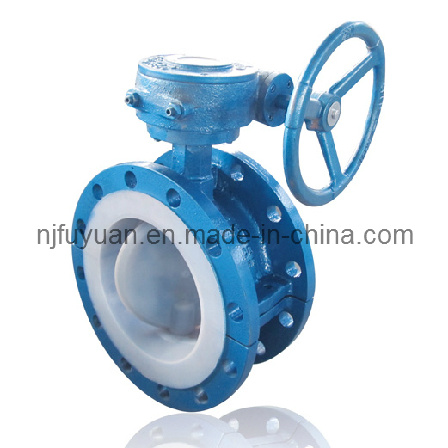

PTFE Lined Butterfly Valve D341
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |

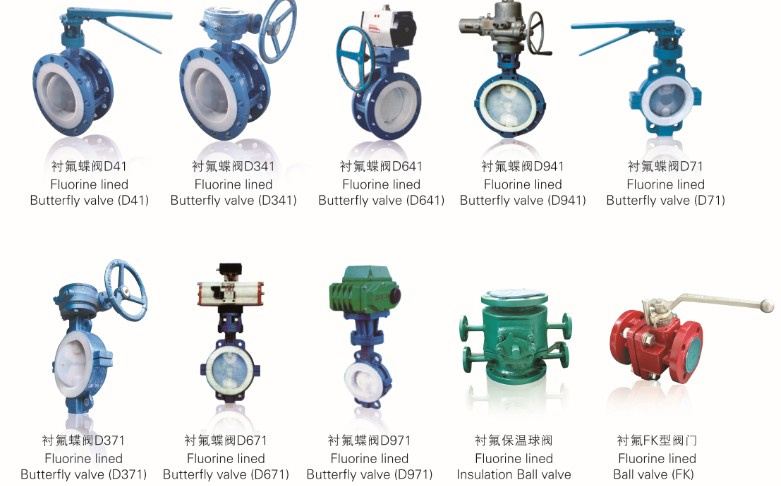

PTFE Lined Butterfly Valve D341
Nominal diameter (mm): DN15-DN400
Nominal bore (inch): NPS1/2-NPS16
Blow-out proof stem
Anti-static desigh is standard
Temperature range: -10-200 degree
Face to face: ASME B16.10
Flange dimension: ASME B 16.5
Pressure rating: ANSI 150.
Design standard: HG/T3704 GB/T12238-89
Structure length: GB/T12221-2005
Flange standard: JB/T79.1 GB/T9113.1 HG20592 ASME B 16.5
Nominal pressure: 0.6 1.0 1.6MPa
Check test: JB/T9092-99, electric spark test; GB/T13927, vapour pressure test.
Driving mode: Manual operation, worm wheel, air-operating and electronic operating
Lining material: FEP(F46), PFA(FA), E-TFE(F40), and PTFE(F4)
Valve material: Cast steel and stainless steel
|
Butterfly Valve D341 |
Unit mm |
|
Nominal diameter |
Standard value |
Reference value |
|
DN(mm) |
NPS(inch) |
PN 1.6 MPa |
|
L |
D |
D1 |
D2 |
f |
b |
Z-Φ d |
Do |
H |
W(kg) |
|
DN40 |
1 1/2 |
106 |
145 |
110 |
85 |
3 |
18 |
4-Φ 18 |
160 |
140 |
10 |
|
DN50 |
2 |
108 |
160 |
125 |
100 |
3 |
20 |
4-Φ 18 |
200 |
160 |
12 |
|
DN65 |
2 1/2 |
112 |
180 |
145 |
120 |
3.5 |
20 |
4-Φ 18 |
250 |
165 |
13 |
|
DN80 |
3 |
114 |
195 |
160 |
135 |
3.5 |
22 |
8-Φ 18 |
260 |
170 |
14 |
|
DN100 |
4 |
127 |
215 |
180 |
155 |
4 |
24 |
8-Φ 18 |
300 |
180 |
16 |
|
DN125 |
5 |
140 |
245 |
210 |
185 |
4 |
26 |
8-Φ 18 |
300 |
275 |
18 |
|
DN150 |
6 |
140 |
280 |
240 |
210 |
4 |
28 |
8-Φ 23 |
200 |
295 |
42 |
|
DN200 |
8 |
152 |
335 |
295 |
265 |
4.5 |
30 |
12-Φ 23 |
200 |
320 |
78 |
|
DN250 |
10 |
250 |
405 |
355 |
320 |
4.5 |
32 |
12-Φ 25 |
240 |
385 |
120 |
|
DN300 |
12 |
270 |
460 |
410 |
375 |
4.5 |
34 |
12-Φ 25 |
240 |
390 |
145 |
|
DN350 |
14 |
290 |
520 |
470 |
435 |
5 |
38 |
16-Φ 25 |
240 |
460 |
202 |
|
DN400 |
16 |
310 |
580 |
525 |
485 |
5 |
40 |
16-Φ 30 |
280 |
510 |
235 |
|
DN450 |
18 |
330 |
640 |
585 |
545 |
5 |
44 |
20-Φ 30 |
280 |
540 |
368 |
|
DN500 |
20 |
350 |
705 |
650 |
608 |
5 |
46 |
20-Φ 34 |
320 |
570 |
420 |
|
DN600 |
24 |
390 |
840 |
770 |
718 |
5 |
54 |
20-Φ 41 |
320 |
660 |
750 |
|
DN700 |
28 |
430 |
910 |
840 |
788 |
5 |
54 |
24-Φ 41 |
360 |
710 |
1028 |
|
DN800 |
32 |
470 |
1020 |
950 |
898 |
5 |
54 |
24-Φ 41 |
380 |
780 |
1698 |
|
DN900 |
36 |
510 |
1120 |
1050 |
998 |
5 |
54 |
28-Φ 41 |
400 |
885 |
1815 |
|
DN1000 |
40 |
550 |
1255 |
1170 |
1110 |
5 |
60 |
28-Φ 41 |
500 |
990 |
2050 |
| Prod Model: |
D341 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Diameter (Mm): |
Dn15-Dn400 |
| Nominal Bore (Inch): |
Nps1/2-Nps16 |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Material Of Seal Surface: |
Soft Sealed |
| Connection Form: |
Flange |
| Structure: |
Centre Sealing |
| Application: |
Industrial Usage |
| Seal Form: |
Elastic Seal |
| Working Temperature: |
-20~180deg |
