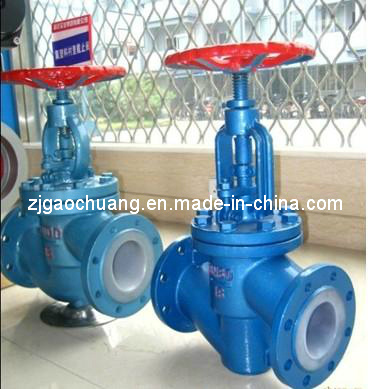

PTFE/PFA Lined Globe Valve
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union |
PTFE/FPA Lined globe valve
Nominal diameter (mm): DN15-DN400 Nominal bore (inch): NPS1/2-NPS16 Temperature range: -10-200 degree Face to face: ASME B16.10 Flange dimension: ASME B 16.5 Pressure rating: ANSI 150. Design standard: HG/T3704 GB/T12235 Structure length: GB/T12221-2005 HG/T3704-2003 Flange standard: JB/T79.1 GB/T9113.1 Nominal pressure: 1.0 1.6MPa Check test: JB/T9092-99, electric spark test; GB/T13927, vapour pressure test AP1598 Driving mode: Manual operation, worm wheel, air-operating and electronic operating Lining material: FEP(F46), PFA(FA), E-TFE(F40), PTFE(F4) Valve material: Cast steel and stainless steel
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Structure: |
Through Way Globe Valve |
Stem Thread Position: |
Outside Screw Stem Globe Valve |
Sealing Form: |
Gland Packings Globe Valve |
Standard: |
JIS |
Application: |
Lining Fluorine Valve |
Located in Oubei Town of Yongjia County Reputed as Chinese Hometown of Pumps and Valves, ZHEJIANG GAOCHUANG PUMP VALVE Co., Ltd. Has always been devoted to research and development of industrial process control valves. it is a technology-oriented enterprise integrating research, development, manufacturing and sale. Thanks to our powerful strength, fine manufacturing equipment, consummate inspection procedures, complete product series, reasonable price and excellent after-sales service, our company has received wide trust and good comment from users
ZHEJIANG GAOCHUANG PUMP VALVE Co., Ltd Products includes: Knife gate valves, slurry valves, butterfly valves, wafer check valve, V notch ball valve, Strainer, Diaphragm Pumps, under water Pumps, which are widely used in automatic control systems in such industries as pulp & paper, chemical fiber, petrochemical industry, food, metallurgy, electric power, chemical industry, pharmacy, sewage treatment, mining and deslagging, furnace slag, coal ash, cement paste, morta, coal slurry, mining and etc. The control valves have been widely used in large-scale papermaking projects in China, their quality winning recoginition from users. GAOCHUANG Products asr also exported far to USA, Australia, Indonesia, Spain, tailand, South Africa, Italy and other countries and regions
GAOCHUANG is always pursuing the goal of providing customers with high quality products of low life cycle cost, we will strive to become the most popular and the most reliable valve supplier with the highest performanc-price ratio.
