Instruction

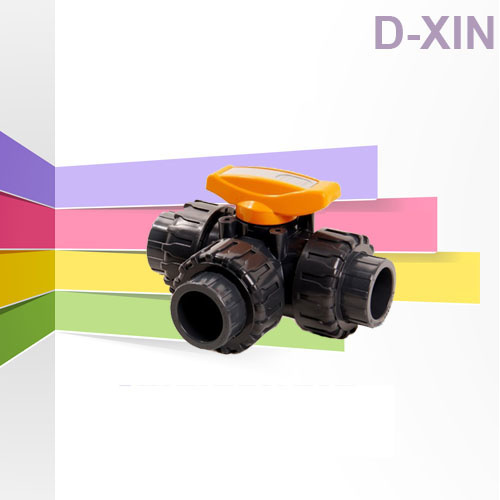

3 way PVC ball valve has 2 types, L Type and T type.
T type ball valve can make the three orthogonal channel interconnected and cut off, it can split flow and interflow in the pipeline system.
L type ball valve can only connect mutual orthogonal channel, can not connect the 3rd channel at the same time, usded as a distribution device.
Feature
3 way PVC ball valve with light weight, better performance of corrision resistance. Has been applied in many fields, such as multiple industry general water and raw water piping system, drainage and sewage pipeline system, brine and seawater piping system, chemical solution system.
The 3 way trunnion PVC ball valve:
1. Compact structure and good apperance.
2. Light weight and easy to be installed.
3. Corriosive resistance, applied in many fields.
4. Abrasion resistance, easy disassembly, easy maintenance.
5. Rotating smoothly, no stuck.
6. High quality raw material, inner and outer wall smoothly. Abrasion resistance material is health, non-toxic, no worries about the proliferation of bacteria.
7. Mechanical design handle are easliy operate and dismantle. Beautiful apperance is suitable for the large buildings and modern family decoration.
8. Thick body, and good sealing, used for building chemical pharmaceutical Petrochemical agricultural irrigation and aquaculture;
9. Not suitable for compressed air or compressed gas.
|
Dimension |
|
DN(mm) |
Inch |
Size(mm) |
|
L |
L1 |
L2 |
D1 |
D2 |
D3 |
D4 |
D5 |
|
15 |
1/2'' |
112 |
60 |
16 |
13 |
20.1 |
20.3 |
31 |
45 |
|
20 |
3/4'' |
132 |
73 |
19 |
18 |
25.1 |
25.3 |
37 |
55 |
|
25 |
1 |
144 |
78 |
22 |
23 |
32.1 |
32.3 |
44 |
66 |
|
32 |
1 1/4 |
165 |
87 |
26 |
30 |
40.1 |
40.3 |
54 |
82 |
|
40 |
1 1/2 |
171 |
92 |
31 |
38 |
50.1 |
50.3 |
65 |
98 |
|
50 |
2 |
200 |
112 |
38 |
48 |
63.1 |
63.3 |
79 |
120 |
|
65 |
2 1/2 |
273 |
136 |
44 |
61 |
75.1 |
75.3 |
92 |
140 |
|
80 |
3 |
303 |
158 |
51 |
69 |
90.1 |
90.3 |
108 |
160 |
|
100 |
4 |
326 |
176 |
61 |
99 |
110.1 |
110.4 |
146 |
225 |
