| Price: | US $ 6.53/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Set |
| Pay Type: | L/C,T/T |

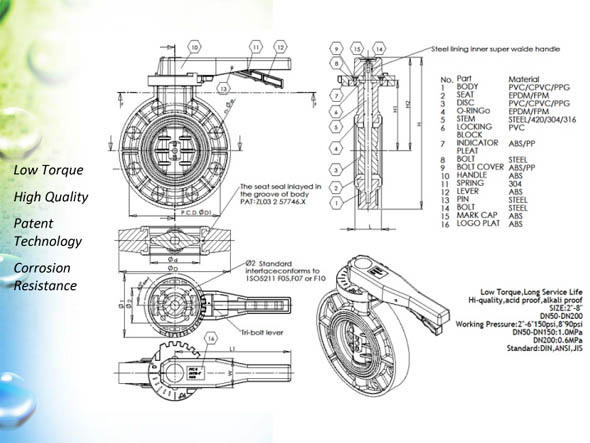

PVC Butterfly Valve for Water Supply DIN ANSI JIS Standard DN.50mm to DN.300mm
Features
Water Supply
Material : PVC-U
Standard : DIN ANSI JIS Standard
Connection : Flange
SIZE : DN50 ( 63mm ) 2" ~ DN300 ( 315mm ) 12"

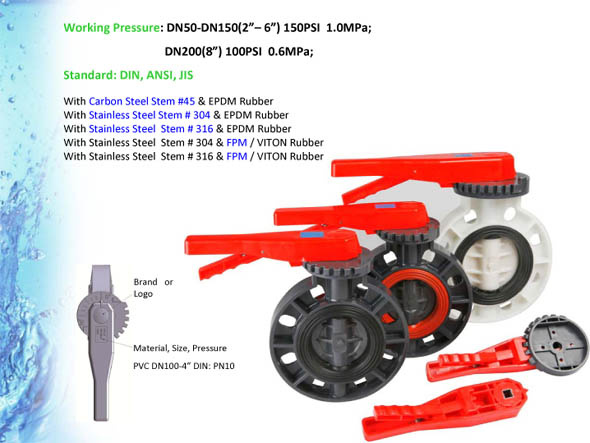

Working Pressure : 150PSI 1.0 MPa
100PSI 0.6MPa
Color : Dark Grey
PVC Butterfly Valve ( Level & Gear )
FRPP Butterfly Valve ( Level & Gear )
PVC Non Actuator Butterfly Valve for Electric & Pneumatic Actuator Usage
With Carbon Steel Stem #45. Disc with PVC. Seat & O-Ring with EPDM Rubber.
With Stainless Steel Stem # 304. Disc with PVC. Seat & O-Ring with EPDM Rubber
With Stainless Steel Stem # 316. Disc with PVC. Seat & O-Ring with EPDM Rubber
With Stainless Steel Stem # 304. Disc with PVC. Seat & O-Ring with FPM / VITON Rubber
With Stainless Steel Stem #316. Disc with PVC Seat & O-Ring with FPM / VITON Rubber.
PVC FRPP Butterfly Valve with DIN, ANSI, JIS Standard
| Prod Model: | DN50-DN300 DIN ANSI JIS Standard |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| PVC Butterfly Valve JIS Standard: | Dn50-Dn300 |
| PVC Butterfly Valve DIN Standard: | 63mm-315mm |
| PVC Butterfly Valve ANSI Standard: | 2"-- 12" |
| FRPP Butterfly Valve: | DIN ANSI JIS Standard |
| Carbon Steel Stem #45: | EPDM Rubber |
| Stainless Steel Stem #304: | EPDM Rubber |
| Stainless Steel Stem #316: | EPDM Rubber |
| Stainless Steel Stem 316#: | Viton / FPM Rubber |
| Connection Form: | Flange |
| Work Pressure: | Low Pressure (',Pn<1.6mpa) |
| Structure: | Centre Sealing |
| Seal Form: | Auto Sealed |
| Working Temperature: | Normal Temperature (',-40??C |
| Application: | Swiming Pool |
| Material Of Seal Surface: | Soft Sealed |
| Valve Body: | Mould |
