The main characteristics:
1 Small in size and light in weight...Easy installation and maintenance. It can be mounted wherever needed.
2. Simple and compact construction, quick 90 degree on-off operation.
3. Minimized operating torque, energy saving.
4. Flow cure tending to straight line. Excellent regulation performance.
5. Long service life. Standing the test of tens of thousands opening/closing operations.
6. Bubbles-tight sealing with no leakage under the pressure test.
7. Wide selections of materials, applicable for various medium
8. Stem and disc are connected by means of pinless structure with more reliable performance.
9. Disc seat and body of non backed slim-disc butterfly valve are connected by frameless structure to overcome leakage on the connecting position of flange sealing surface.
Application:
1. These products are mainly used for pipeline flow, pressure and temperature control of various industrial automation productiong, for example: Electricity, petrifaction, metallurgy, environmental protection, energy management, fir-fighting systems.
2. Simultaneously they have good fluid control properties, and can operate simply.
3. They are not only widely used in general industries as petroleum, coal gas, chemical engineering, water treatment, but also used in the cooling water system of thermal power plant.
Packaging Detail: Inner packing: Individual polybag for each valve Outer packing: Plywood box~veneer case, standard size is 1150*950*550mm/1150*950*600mm We can also make the case according to consumer's requirement or the real size of valves.
Note:
1. All of our butterfly valves are backed by 24 months guarantee.
2. We can match the different rubber ring according to the different medium conditions, such as NBR, PTFE, CSM, EPDM, CR, Viton and other rubber materials.
3. We can match different materials about body, plate and stem, such as ductile iron, cast steel, stainless steel 304, 316, 316L according to special working condition.
4. If the valve leakage after 24 months service, just remove handle then add a bushing to prevent leakage, need not disassemble the valve or change a new one, very economic.
|
Detailed Description: |
|
Series |
wrench butterfly valves |
|
Size: |
DN40-DN300/1.5" -12" |
|
End flange: |
ANSI B 16.1, ASTM B 16.47, EN 1092, AS 2129, ISO PN10/16, JIS B2212/2213, BS 10 Table D, BS 10 Table E |
|
Face to face: |
ANSI B 16.10 |
|
Top flange: |
ISO 5211 |
|
Normal pressure: |
DN40-DN600(1.5" -24" ) PN1.0/1.6MPa(150/200PSI) DN700-DN1200(28" -48" ) PN1.0MPa(150PSI) |
|
Body: |
Cast Iron/Ductile Iron/WCB/Carbon steel/AL-Bronze/CF8, SS304/CF8M, SS316 |
|
Disc: |
Ductile Iron/Ni-plated ductile iron/Nylon-plated ductile iron/AL-Bronze/Rubber lined Disc/1.2501/1.4529/CF8/CF8M/Hastelloy Alloy/Monel |
|
Stem: |
SS416/SS304/SS316/SS431/17-4PH/Monel |
|
Seat: |
NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM()/PTFE |
|
Suitable temperature: |
Normal Temperature -45 ~150 |
|
Medium: |
Flesh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc. |

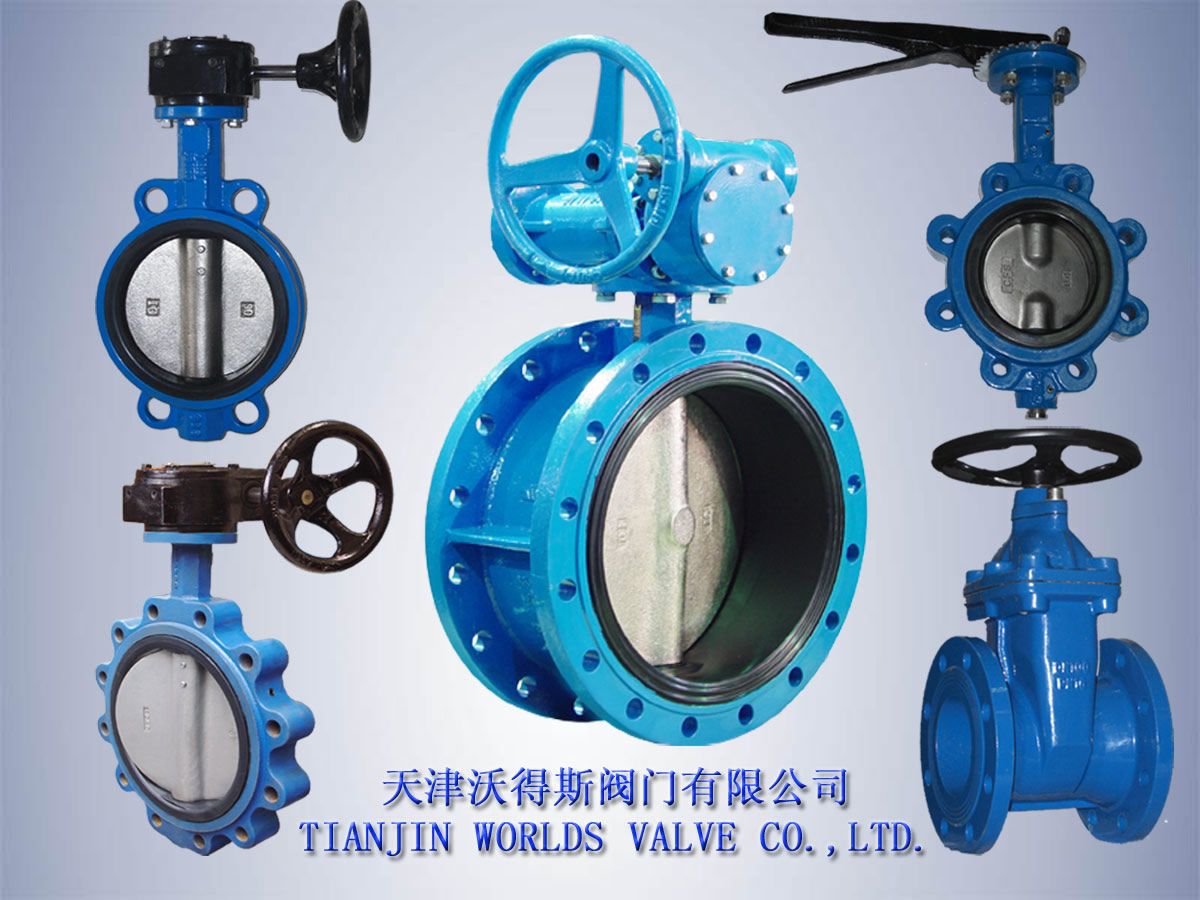

TIANJIN WORLDS VALVE Ltd. is located at TIAN JIN BIN HAI, , it is only 3 kilometers away from Tianjin Xingang Port, TIANJIN WORLDS VALVE Ltd. focuses on producing, installing, sale and service. The main products ranges from Center Line Butterfly Valve, Flanged Butterfly Valve, Metal Butterfly Valve, Dual Plate Check Valve, Gate Valve, Waterpower Control Valve, Microresistance Slow Close Check Valve, Multi-function Pump Control Valve to their series products. Moreover, we can produce control valve and pressure reducing valve with different materials, pressures, specifications, actuation ways. Our products have more than 50 serials and 1200 species, the annual production output is more than 8.000 metric tons. WORLDS valves sells well all over China and have been exported to Europe, America and other countries and areas, they are widely used in water supply and drainage, electric power, petrol chemical industry, metallurgy and other trades. The products are creative with good quality, cheap price and excellent credit, so far we got a good feedback from our customers.
WORLDS has excellent technicians and engineers, at the same time it has a lot of large and middle machines including 178 sets of manufacturing equipments and 32 sets of performance testing equipments imported from overseas. Our products have original design, exquisite technique, perfect manufacture and complete testing ways. It has passed ISO 9001 international quality system certification of DNV. WORLDS will supply best products and service for all customers.
