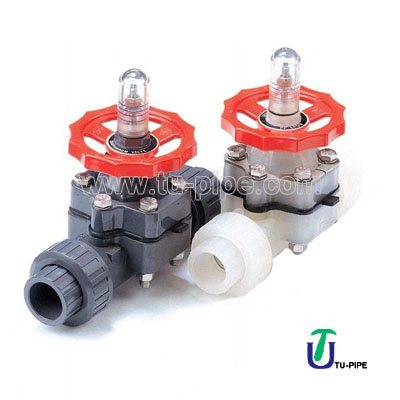

Name: PVC CPVC PVDF PP Diaphragm Valves BS JIS
Material: PVC CPVC PVDF PP
Standard: BS JIS
Size: 1/2''~2"
PVC CPVC PVDF PP Diaphragm Valves BS JIS Description:
Pressure rating: 100 PSI
Smooth operation with clear indication of opening / closind through the gauge cover.
Low maintenance cost with replaceable diaphragm and long service life
Adjustable stopper can avoid over tightening
Caution! The valve is completely closed when handwheel can't turn more with normal torque, but it will cause the unrecoverable divulsion of diaphragm if the handwheel is continuously forced to turn in such above condition!
|
Size |
Standard |
Material |
Gasket |
O-ring |
Diaphragm |
End type |
Bolt |
|
1/2"~2" |
DIN |
PVC |
EPDM |
NBR |
EPDM, FPM, PTFE |
Spigot |
SUS 304 / 316 |
|
1/2"~2" |
DIN |
CPVC |
EPDM |
NBR |
EPDM, FPM, PTFE |
Spigot |
SUS 304 / 316 |
|
1/2"~2" |
DIN |
PVDF |
EPDM |
NBR |
EPDM, FPM, PTFE |
Spigot |
SUS 304 / 316 |
|
1/2"~2" |
DIN |
PP |
EPDM |
NBR |
EPDM, FPM, PTFE |
Spigot |
SUS 304 / 316 |
|
1/2"~2" |
ANSI, JIS, DIN |
PVC |
EPDM |
NBR / EPDM, FPM |
EPDM, FPM, PTFE |
Socket, Threaded |
SUS 304 / 316 |
|
1/2"~2" |
ANSI, JIS, DIN |
CPVC |
EPDM |
NBR / EPDM, FPM |
EPDM, FPM, PTFE |
Socket, Threaded |
SUS 304 / 316 |
|
1/2"~2" |
ANSI, JIS, DIN |
PVDF |
EPDM |
NBR / EPDM, FPM |
EPDM, FPM, PTFE |
Socket, Threaded |
SUS 304 / 316 |
|
1/2"~2" |
ANSI, JIS, DIN |
PP |
EPDM |
NBR / EPDM, FPM |
EPDM, FPM, PTFE |
Socket, Threaded |
SUS 304 / 316 |
|
NO. |
PART |
MATERIAL |
Q'TY |
|
1 |
BODY |
UPVC,CPVC,PP,PVDF |
1 |
|
2 |
BONNET |
UPVC,CPVC,PP,PVDF,PP+GF |
1 |
|
3 |
COMPRESSOR |
FC,SUS |
1 |
|
4 |
HANDWHEEL |
PP |
1 |
|
5 |
SLEEVE |
C3602 |
1 |
|
6 |
STEM |
C3602 |
1 |
|
7 |
DIAPHRAGM |
EPDM,FPM,PTFE |
1 |
|
8 |
CAP |
UPVC,CPVC,PVDF,PP+GF |
1 |
|
9 |
COMPRESSOR PIN |
SUS 304 |
1 |
|
10 |
INSERTED METAL |
C3602,SUS304 |
1 |
|
11 |
RUBBER LINER |
SUS 304 |
1 |
|
12 |
BOLTS&WASHERS |
SUS 304 |
4 |
|
13 |
NUTS&WASHERS |
SUS 304 |
4 |
|
14 |
NAME PLATE |
PVC |
1 |
|
15 |
BOTTOM NUT |
C3604 |
2 |
|
16 |
STOPPER |
SUS 304 |
1 |
|
17 |
SET NUT |
SUS 304 |
1 |
|
18 |
GAUGE CIVER |
AS |
1 |
|
19 |
SHEET GASKET |
EPDM |
1 |
|
20 |
SHEET RING |
SUS 304 |
1 |
|
21 |
INDICATIVE WASHER |
ABS |
1 |
|
22 |
O-RING |
NBR |
1 |
|
23 |
O-RING |
EPDM,FPM |
2 |
|
24 |
END CONNECTOR |
UPVC,CPVC,PP.PVDF |
2 |
|
25 |
UNION NUT |
UPVC,CPVC,PP.PVDF |
2 |
|
SIZE |
1/2" |
3/4" |
1" |
1-1/2" |
2" |
|
(15mm) |
(20mm) |
(25mm) |
(40mm) |
(50mm) |
|
JIS |
Φd1 |
22.3 |
26.3 |
32.33 |
48.46 |
60.56 |
|
Φd2 |
21.7 |
25.7 |
31.67 |
47.54 |
59.44 |
|
I |
22.2 |
25.4 |
28.6 |
34.9 |
38.1 |
|
BS |
Φd1 |
21.5 |
26.9 |
33.7 |
48.4 |
60.5 |
|
Φd2 |
21.3 |
29.7 |
33.5 |
48.2 |
60.3 |
|
I |
16.5 |
19.5 |
22.5 |
30 |
36 |
|
thd./in |
NPT |
14 |
14 |
11.5 |
11.5 |
11.5 |
|
BSPT |
14 |
14 |
11 |
11 |
11 |
|
ΦD |
46 |
55 |
66 |
97 |
120 |
|
ΦD1 |
31 |
37 |
44 |
64 |
78 |
|
ΦD2 |
95 |
95 |
110 |
150 |
150 |
|
Φd3 |
20 |
25 |
32 |
50 |
63 |
|
L2 |
130 |
150 |
160 |
200 |
230 |
|
L1 |
180 |
207 |
224 |
276 |
317 |
|
L |
124 |
144 |
154 |
194 |
224 |
|
H1 |
128 |
138 |
144 |
220 |
225 |
|
H2 |
86 |
95 |
98 |
150 |
148 |
|
I1 |
PVC |
16 |
19 |
22 |
31 |
34 |
|
PP,PVDF |
14.5 |
16 |
18 |
23.5 |
27.5 |
|
S |
11 |
11 |
11 |
15 |
15 |
|
F |
25 |
25 |
25 |
45 |
45 |
|
M |
M6 |
M6 |
M6 |
M8 |
M8 |
