Flow: 0.5 to 34.0 m3/h
Pressure: 1.0 to 10.4 bar (23° C)
Temperature: Up to 43° C
ELECTRICAL SPECIFICATIONS
Solenoid: 24 VAC - 50 Hz
Inrush current: 0.41 A (9.9 VA)
Holding current: 0.23 A (5.5 VA)

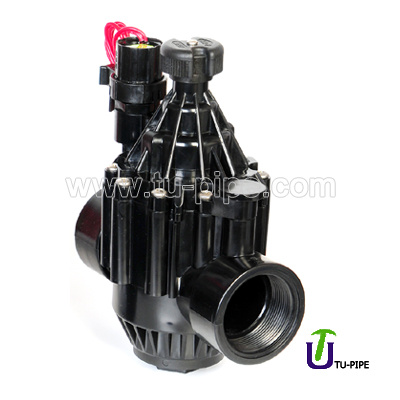

PVC Irrigation solenoid valves DIN Features:
Combination globe/angle configuration
Heavy-duty PVC construction
Manual internal bleed with 1/4-turn of the solenoid
Solenoid with convenient handle
Slow closing to prevent water hammer and subsequent system damage
Filtered pilot-flow
One-piece solenoid with captured plunger
Encapsulated solenoid
Flow control
Also available in 9V solenoid configuration:
100-P-9V, 150-P -9V, 200-P-9V
PVC Irrigation solenoid valves DIN Dimensions:
100-P
- Height: 18.4 cm
- Length: 14.0 cm
- Width: 8.3 cm
150-P
- Height: 20.3 cm
- Length: 17.2 cm
- Width: 8.9 cm
200-P
- Height: 25.4 cm
- Length: 19.7 cm
- Width: 12.7 cm
100-P: 1" (26/34) BSP female threaded inlet and outlet
100-P -9V: 1" (26/34) BSP female threaded inlet and outlet, latching soleno? D
150-P: 1, 5" (40/49) BSP female threaded inlet and outlet
150-P -9V: 1, 5" (40/49) BSP female threaded inlet and outlet, latching solenoid
200-P: 2" (50/60) BSP female threaded inlet and outlet
200-P -9V: 2" (50/60) BSP female threaded inlet and outlet, latching solenoid
PVC Irrigation solenoid valves DIN applications:
P valves are designed for a wide range of applications such as municipal turf areas.
