PVC Plastic Swing Check Valve

PVC Plastic Swing Check Valve
Price: US $ 1.22/Set
Trade Terms: FOB,CFR,CIF
Min Order: 10/Box
Pay Type: L/C,T/T

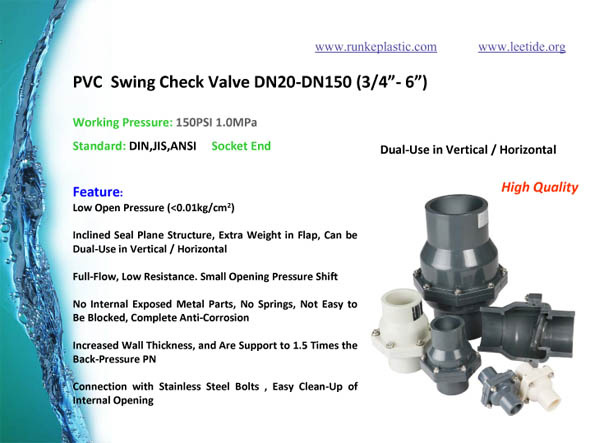

PVC Plastic Swing Check Valve
Dual Use in Vertical or in Horizontal
DIN, ANSI, JIS Standard
DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10



Feature:
1. Inclined Seal Plane Structure, Extra Weight in Flap, Can be Dual-Use in Vertical / Horizontal
2. Full-Flow, Low Resistance. Small Opening Pressure Shift
3. No Internal Exposed Metal Parts, No Springs, Not Easy to Be Blocked, Complete Anti-Corrosion
4. Low Open Pressure (<0.01kg/cm2).
5. Increased Wall Thickness, and Are Support to 1.5 Times the Back-Pressure PN
6. Connection with Stainless Steel Bolts, Easy Clean-Up of Internal Opening

CAUTION:
1. Arrow Mark Indicates the Flow of Fluid
2. When in Horizontal Install, Make Sure the Arrow Mark on the Top Side

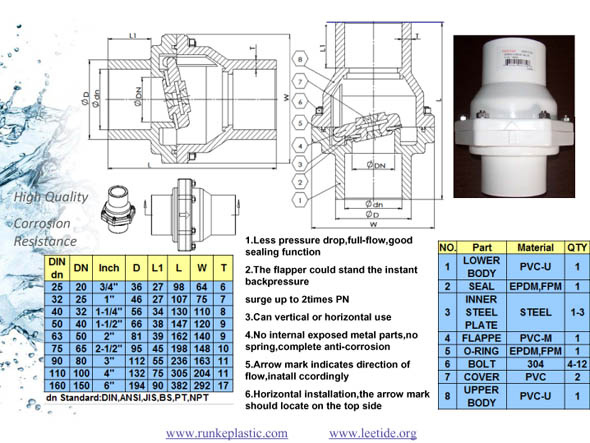

InchDNDINDL1LW
3/4"202536279864
1"2532462710775
1-1/4"32405634130110
1-1/2"40506638147120
2"50638139162140
2-1/2"65759545198148
3"809011255236163
4"10011013275305204
6"14016019490379282

Prod Model: DN20-DN150
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
PVC Check Valve: Dn20-Dn150
PVC Swing Check Valve: 3/4"- 6"
Plastic Check Valve: Dual Use in Vertical or in Horizontal
Swing Check Valve: DIN, ANSI, JIS Standard
Connection Form: Flange
Structure: Swing
Function: UPVC Plastic Swing Check Valve for Water
Application: Household Usage
Standard: DIN ANSI JIS Standard
Material: PVC Swing Check Valve
Sealing Form: Swing Check Valve
Pressure: Dual-Use in Vertical / Horizontal. Low Open Pres
Tianjin Runke Plastic Tech Co., Ltd: , as a member of group and a leading plastic manufacture in China, we can produce

PVC, FR-PP Butterfly Valve according to DIN, ANSI, JIS, CNS Standard with Specification DN50-DN500 ( 2"- 20" ) Working Pressure from DN20 to DN 200 ( 2"- 8" ) PN10 and DN200 ( 8" ), DN250 ( 10" ), DN300 ( 12" ) PN6;

PVC Swing Check Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10.

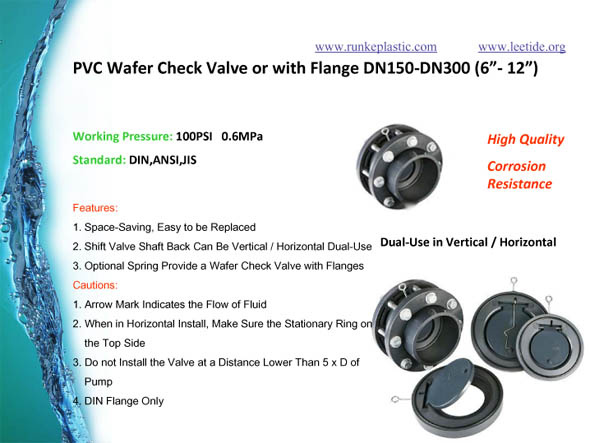

PVC Wafer Check Valve according to DIN Standard DN150-DN300 ( 6"- 12" ) Working Pressure PN6;

PVC Foot Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10;

PVC True ( Double ) Union Ball Valve DIN, ANSI, JIS, CNS Standard with PT & NPT Threaded with Specification DN15-DN100 ( 1/2"- 4" ) Working Pressure PN10;

HDPE Fittings for Water Supply SDR11 & SDR17

PVC Pressure Fittings for Water Supply ( Rubber Ring Joint & Solvent Joint ) according to DIN 8063 Standard PN10;

SMC Composite Manhole Cover accord with BS Standard EN-124 1994 A15, B125, C250, D400 and AS 3996 Australia Standard;

HDPE Inspection Chamber
