Price: US $ 100/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union

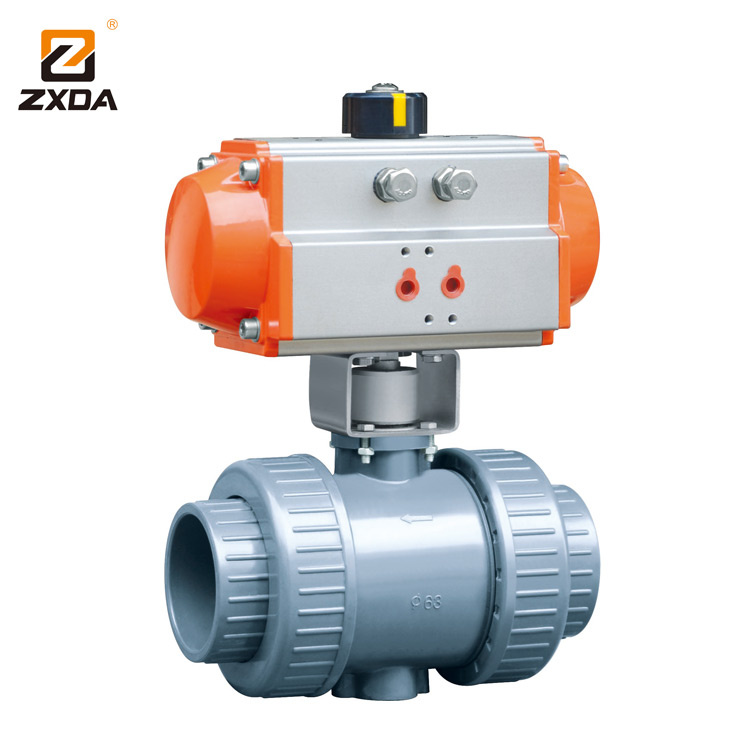

PVC pneumatic ball valve chemical resistant ball valve Double Union Ball Valves
1.The parameters of UPVC electric ball valve

1)Nominal diameter:1/2inch-4inch
2)Pressure range: 0-10bar
3)Medium Temperature:-10°C~+180°C
4)Environment Temperature: -10°C~+60°C
5)Body material:UPVC,PVC
6)Sealing material:PTFE
7)Body of actuator:Aluminum alloy
8)Air pressure: 4-7bar
9)Feature:On-Off type,regulated type
10)Manufacturing standard: GB,BS,ANSI

Characteristic of plastic PVC ball valve with pneumatic actuator
1.Pneumatic plastic PVC ball valve with the latest display technology, low weight and corrosion resistance.
2. Pneumatic plastic PVC ball valve with compact structure and beautiful appearance.
3. Pneumatic plastic PVC ball valve with low weight and easy to install.
4.Corrosion resistance and wide range of applications.
5. Pneumatic plastic PVC ball valve with non-toxic material.
6. wear-resistant, easy to disassemble and easy to maintain as well.
  Pneumatic plastic PVC ball valve has been applied in many fields.Such as general water and raw water piping systems, drainage and sewage piping systems, salt water and sea water piping systems, pH and chemical multiple industry solution systems, quality has been recognized by the majority of users.

Specification of  plastic PVC ball valve with pneumatic actuator

Beautiful appearance, compact structure
This valve with an innovative optimized design by three-dimensional model of CAD has a beautiful and compact appearance and modern modeling, and adopts new material and new technology to ensure that the valve has the good quality, good product performance, more reliable, more economical, more durable, which is fully compliance with the latest technical specifications of international standard, and which is the first choice for future automation system.

Strong corrosion resistance, a broad scope of application.
The valve owns excellent corrosion resistance to chemical.

The UPVC ball valve with strong corrosion resistance is widely applied in various piping systems of pure water, raw drinking water, drainage, sewage, salt water, sea water, acid solution, alkali solution, chemical solution, whose quality has been recognized by numbers of users.

Light weight, diversified performance, easy installation
The lightweight body isequivalent to 1/5 weight of steel pipe and 1/6 weight of copper pipe.

The actuator has enough torque, lightweight, small volume and convenient installation.

The valve owns excellent strength and toughness, abrasion resistance, easy to disassemble, simple and easy maintenance.

The flame-retardant performance is realized by its self-extinguishing.
The low thermal-conductivity performance equates about 1/200 of steel.

The used material is health and non-toxic, which complies with national health standards.

The clean and smooth pipe wall can transmit liquid with small friction resistance and adhesive force.

Compared with other pipeline systems, the excellent aging resistance and UV resistance ensures that the product's normal service life is extended a lot than that of other pipeline system.

Simple structure, easy to operate, high cost-effective.
This UPVC electric ball valve is applied in the occasion of regulating and cutting off by two position. It's direct connection between the valve and actuator. The electric actuators with servo system inside never need be configured with the servo amplifier, whose operation can be controlled by inputting 4-20mA signal and 220VAC power. The valve presents simple connection, compact structure, small resistance, stable and reliable action.
The valve is controlled accurately via switch signal 4~20mA from industrial automation control system, which regulate and control the different technical parameters of the flow, temperature, pressure.
Prod Model: Q611F-10S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Welding
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Application: Industrial Usage
Material: Plastic
Zhejiang zxda valve control Co., Ltd. is a collection of scientific research, design, manufacturing, sales and service as one of the manufacturers. Specialized is engaged in the research and development and production of the pneumatic valve, the main products are: Pneumatic valve, pneumatic ball valve, pneumatic butterfly valve, pneumatic type knife gate valve, pneumatic Angle seat valve, pneumatic valve, pneumatic control valve, pneumatic feeding valve, pneumatic diaphragm valve, pneumatic pipe clamp valve, pneumatic program control valves, pneumatic sanitary valve, pneumatic actuators, valves, fittings, etc. In the field of pneumatic valve has a wealth of production experience and related experience, exquisite production technology, reliable quality, perfect testing means. Product assembly, explosion-proof solenoid valve, back to the device, the valve positioner and other components, widely used in petroleum, chemical industry, light industry, power station, metallurgy, HVAC, medical, fire, and water treatment and other plumbing field. Products can be assembled explosion-proof solenoid valve, back to the device, the valve positioner and other components. Widely used in petroleum chemical industry, metal smelting, light industry, pharmaceutical, boiler equipment, sewage treatment, printing and dyeing machinery and other fields. As pipe distance single and centralized control by computer operation, is the advanced equipment to realize industrial automation.

Company in the production of the actuator at the same time, and many other famous electromagnetic valve and position feedback switch, filter, the locator manufacturers have good relations of cooperation, can provide users with a variety of supporting services.

The company will with "high quality, good faith" for the purpose, to provide you with satisfactory products and perfect service.
