Specifications

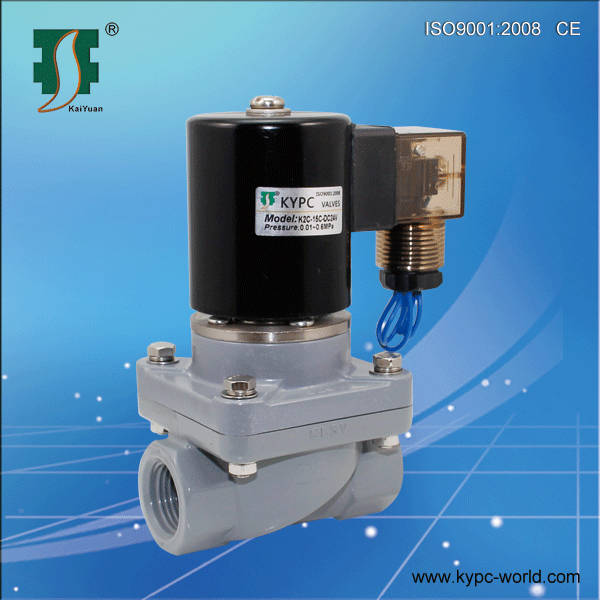

PVC solenoild valve,chemical valve,plastic solenoid valve
PVC solenoild valve,chemical valve,plastic solenoid valve
# Product introduction
1) Fluid and metal parts (plunger, spring) have no direct contact, that means the fluid only contact with the plastics parts such as CPVC, PTFE, O-ring, which is anti-corrosive absolutely;
2) The unique patent design piston to replace the membrane sheets, the shelf life increased greatly;
3) Oversize piloted orifice with short and straight path, which is not easy to be jammed by the particles, sediment and crystallized substance (such as sediment, crystal substance of brine etc.)
4) Push-in type sealing structure, more reliable sealing properties.
5) Zero leakage;
6) Nominal flow orifice diameter;
7) Can be used in the pipeline of hot wasted water, electroplating solution, hot chemicals, chloralkali plant;
8) Anti-jamming of particles and sediments 9.Scientific design and easy maintenance, more reliable and longer shelf life;
|
Model |
2C-15C |
2C-20C |
2C-25C |
2C-35C |
2C-40C |
2C-50C |
|
Working medium |
Weak acid and Weak base gas or liquid |
|
Port size |
G1/2" |
G3/4" |
G1" |
G1-1/4" |
G1-1/2" |
G2" |
|
Working pressure |
0.1~0.6MPa(14.5~87Psi)(1.0~6bar) |
|
Proof-pressure |
1.5MPa(217.5Psi)(15bar) |
|
Working temperature |
-10~50°C |
|
Orifice (mm) |
15 |
20 |
25 |
35 |
40 |
50 |
|
Cv value |
4 |
5.5 |
13 |
17 |
25 |
40 |
|
Body material |
CPVC or UPVC |
|
Seal material |
EPDM;FKM |
|
Voltage |
AC220V |
15W |
Start: 200W
Keep: 5W
|
Start: 350W
Keep: 10W
|
|
DC24V |
16W |
28W |
Start: 75W
Keep: 25W
|
Ningbo Boman Kaiyuan Pneumatic Engineering Co., Ltd is a factory professionally produce pneumatic components. The products are main including Solenoid-Valves and Solenoid-Valves Accessories, Compressed air perpartion, Pneumatic Cylinder and Pneumatic Cylinder Accessories, etc. Offer the credible quality product and project solution to users from all parts of the world. The products are widely used in such as metallurgy, food, textile, machinery, chemistry and electronics, etc.
The general headquarters of the company are located in the national AAAAA class scenic spot with green hills and clear waters and with inside information of deep history and culture Xikou Town., innovation is the existence shape to develop forever, the entrepreneur's innovative enterprising spirit is the source motive force of company's development, Create the value for customer is mission and existence of the company. First-class talents, advanced equipment, strict quality control system is the base for producing the high-quality products invariably.
Kaiyuan believe: "Innovation Is an Unyielding Principle"
With good quality, reasonable price and completed service, we sincerely welcome customers from all parts of world for visiting and business negotiation.
