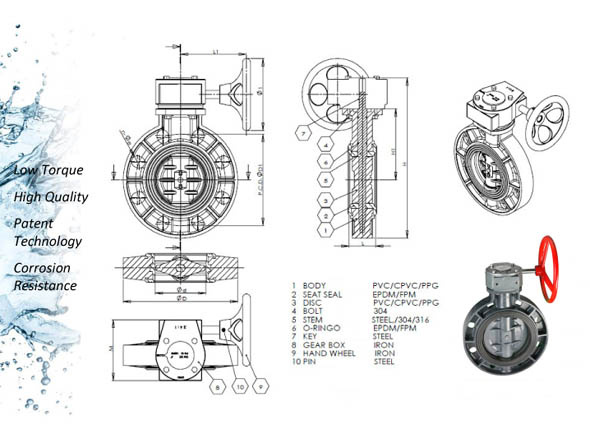

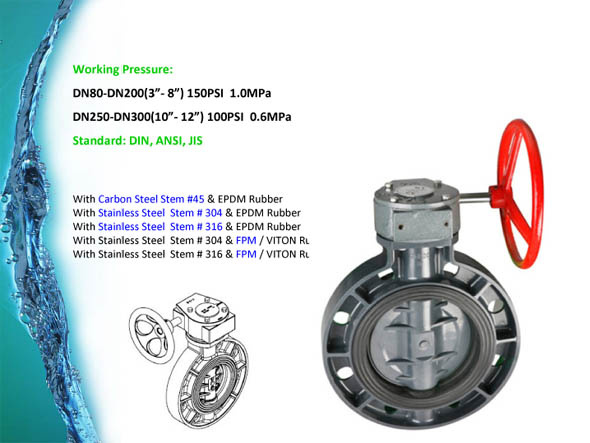

PVC FRPP Butterfly Valve Worm Gear DN80 (3") -DN300 (12") with DIN, ANSI, JIS, CNS Standard
Specification | Working Pressure | Carton Size | Carton |
Size MM | Size Inch | Pipe Dia. MM | MPa | CM | Set |
DN80 | 3" | 90 | 1.0MPa | 44×33×37 | 4 |
DN100 | 4" | 110 | 1.0MPa | 44×33×37 | 4 |
DN125 | 5" | 140 | 1.0MPa | 44×33×37 | 2 |
DN150 | 6" | 160 | 1.0MPa | 44×33×37 | 2 |
DN200 | 8" | 200 | 1.0MPa | 47×26×54 | 1 |
DN250 | 10" | 250 | 0.6MPa | 53×28×64 | 1 |
DN300 | 12" DIN | 315 | 0.6MPa | 53×28×69 | 1 |
DN300 | 12"ANSI | 315 | 0.6MPa | 53×28×72 | 1 |
DN300 | 12" JIS | 315 | 0.6MPa | 53×28×72 | 1 |
Tianjin Runke Plastic Tech Co., Ltd: , as a member of group and a leading plastic manufacture in China, we can produce
PVC, FR-PP Butterfly Valve according to DIN, ANSI, JIS, CNS Standard with Specification DN50-DN500 ( 2"- 20" ) Working Pressure from DN20 to DN 200 ( 2"- 8" ) PN10 and DN200 ( 8" ), DN250 ( 10" ), DN300 ( 12" ) PN6;
PVC Swing Check Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10.
PVC Wafer Check Valve according to DIN Standard DN150-DN300 ( 6"- 12" ) Working Pressure PN6;
PVC Foot Valve according to DIN, ANSI, JIS, BS Standard with Specification DN20-DN150 ( 3/4"- 6" ) Working Pressure PN10;
PVC True ( Double ) Union Ball Valve DIN, ANSI, JIS, CNS Standard with PT & NPT Threaded with Specification DN15-DN100 ( 1/2"- 4" ) Working Pressure PN10;
HDPE Fittings for Water Supply SDR11 & SDR17
PVC Pressure Fittings for Water Supply ( Rubber Ring Joint & Solvent Joint ) according to DIN 8063 Standard PN10;
SMC Composite Manhole Cover accord with BS Standard EN-124 1994 A15, B125, C250, D400 and AS 3996 Australia Standard;
HDPE Inspection Chamber
