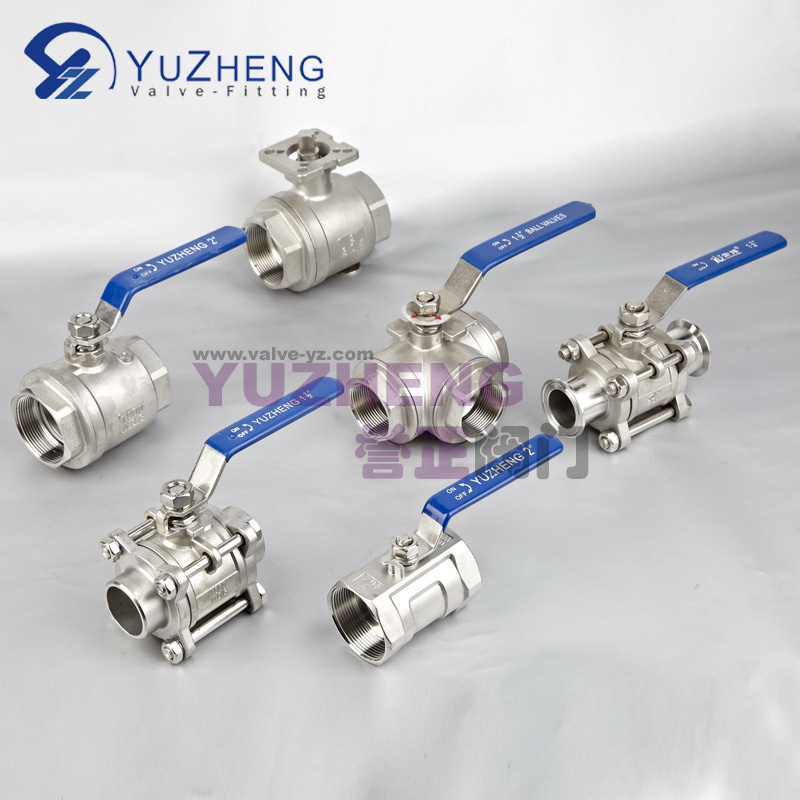

Q11F Two piece ball valve with ISO 5211 pad
1)Material: SS304, 304L, 316, 316L
2)Size: 1/4''-4'&DN6-DN100
3)Certificate: ISO9001: 2000, CE
4)Working pressure: 1000psi(6.4MPa)
5)Threaded end: Optional BSPT\NPT\DIN2999
6)Suitable medium: Water, oil, gas, air and some corrosive liquid
Product Description
1. Investment casting body
2. Blow-out proof stem
3. Full bore
4. ISO 5211 direct mounting pad for actuator
5. Anti-static device on ball and body
6. Thread types: NPT/BSPP/BSPT/PT
7. Locking handle device option
8. Working pressure: 1000psi/PN63
9. Pure TEFLON seals and seats
10.100% leakage tested at 100 psi aire under water
Standard
Design Acc: ASME B16.34
Thread Acc: ANSI B1.20.1
BS 21/2799
DIN 259/2999
ISO 228
Inspection&Testing Acc: API598
Packing: Normally plastic pp bag, small box, cartons and plywood cases.
For any more details, welcome to contact us.
Sales Manager: Jack Sun
Tel: 86-57786356360
Website: www.valve-yz.com
WENZHOU YUZHENG VALVE Co., Ltd has been a manufacturer of Stainless Steel Ball Valves and Pipe Fittings since 1998. With the concept of "Customer First", we have achieved stable and fast development, we will keep on innovation and expand our business all over the world. It is about 5 minutes away from Yongqiang Airport, and half an hour from Wenzhou Train Station. Ningbo Port and Shanghai Port are very close to our factory.
The articles we produce including Stainless Ball Valve, Check Valve, Gate Valve, Strainer, Pipe Fittings and so on. All of them are ISO9001, CE approved. Yuzheng company also been inspected and approved by SGSThe standard of thread are, BSPP, BSPT, NPT, therefore our products can match the requirement of customers from different district. Products' standard including API6D, ASTM, MSS, ANSI, JIS, DIN, ISO, GB, etc. They are widely exported to Southeast of Asia, Middle East, Europe, South America and other areas.
Our strict production and professional sales team will be your guarantee during the cooperation, please don't hesitate to join us if you are specialized in the products.
