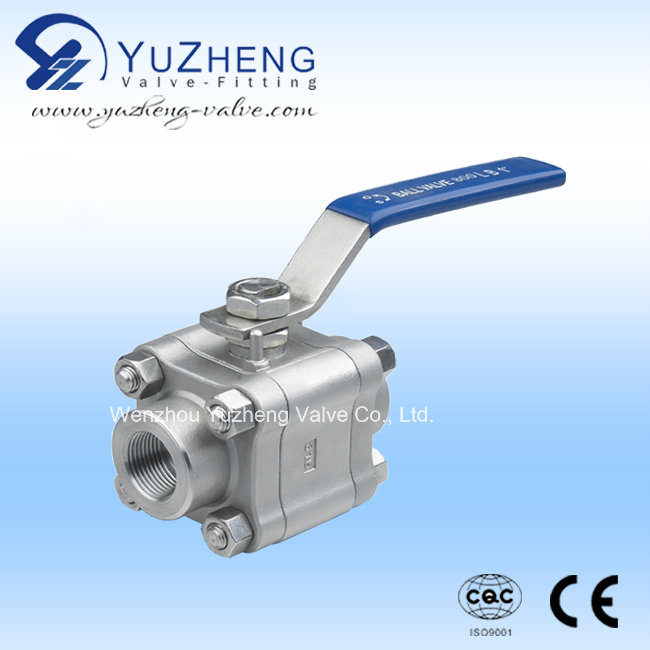

Forged steel high pressure 3 pc ball valve & 3 pc forged steel ball valve Q11Y
1)Material: A105-SS304, 304L, 316, 316L, SS201
2)Size: 1/4''-4'&DN6-DN100
3)Certificate: ISO9001: 2000, CE
4)Working pressure: 800 lb-1500 lb
5)Connection end: Optional BSPT\NPT\DIN2999 and welding
6)Suitable medium: Water, oil, gas, air and some corrosive liquid
Product Description
1. Forged body and cap
2. Blow-out proof stem
3. Full bore & Reduce bore
4. Anti-static
5. End connection: Thread(NPT/BSPP/BSPT/PT)/RF/RTJ/BW/SW
5. Locking handle device available
6. Temperature range: -20-232° C-350° C
7. Pure TEFLON seals and seats
8.100% leakage tested at 100 psi aire under water
Standard
Design Acc: BS5351/GB 12237/API 6D/AMSE B16.34
Face to Face Dimension: ANSI B16.10, API 6D
Thread Acc: ANSI B1.20.1
BS 21/2799
DIN 259/2999
ISO 228
Inspection&Testing Acc: API 598/API 6D
Other Information
For any valve inquiry, please specify the following infomation:
1. Valve type and design pressure/temperature
2. ANSI pressure class, Operating temperature, operating / differential pressure
3. Bore Size, pipe schedule ID / OD
4. Body and trim material
5. Medium, Flow rate Min. /Max.
6. Type of end connection
7. Actuation (manual, gear, actuator and type)
WENZHOU YUZHENG VALVE Co., Ltd has been a manufacturer of Stainless Steel Ball Valves and Pipe Fittings since 1998. With the concept of "Customer First", we have achieved stable and fast development, we will keep on innovation and expand our business all over the world. It is about 5 minutes away from Yongqiang Airport, and half an hour from Wenzhou Train Station. Ningbo Port and Shanghai Port are very close to our factory.
The articles we produce including Stainless Ball Valve, Check Valve, Gate Valve, Strainer, Pipe Fittings and so on. All of them are ISO9001, CE approved. Yuzheng company also been inspected and approved by SGSThe standard of thread are, BSPP, BSPT, NPT, therefore our products can match the requirement of customers from different district. Products' standard including API6D, ASTM, MSS, ANSI, JIS, DIN, ISO, GB, etc. They are widely exported to Southeast of Asia, Middle East, Europe, South America and other areas.
Our strict production and professional sales team will be your guarantee during the cooperation, please don't hesitate to join us if you are specialized in the products.
