Qe Quick Exhaust (Suction) Valve
| Price: |
US $ 60/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Principle
When water enters into the pipe, the plug will stop at the lower part of Locating bracket to discharge the air by a large quantity. When the air has been discharged completely, water will enter into the valve to make the ball floated, driving the plug closed and exhaust stopped. Under normal operation, there can be little gas gathered onto the upper part in pipe. When it arrives to a certain extent, the water level in valve will lower,and the float ball will lower as well, the air will be discharged out from the small hole. In case of power cut and pump stop, and when the water in pipe is emptied, there can easily cause negative pressure in pipe, and the float ball will lower along with the water. Here, the small hole will be opened, and large quantity of air will come in from the large hole, thus to ensure the safety of pipeline.
Note: it cannot be used in sewage pipeline.

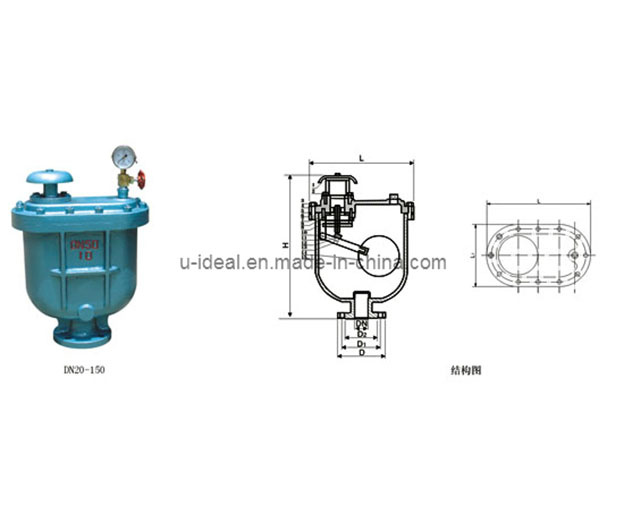

Main dimensions
DN(mm) | D | D1 | D2 | L | H | L | Z-Φd |
| 20 | 105 | 75 | 57 | 280 | 190 | 330 | 4-12 |
| 25 | 115 | 85 | 67 | 280 | 190 | 330 | 4-14 |
| 50 | 160 | 125 | 102 | 300 | 190 | 445 | 4-14 |
| 80 | 195 | 160 | 138 | 365 | 210 | 500 | 4-18 |
| 100 | 215 | 180 | 158 | 390 | 245 | 560 | 8-18 |
| 150 | 280 | 240 | 211 | 460 | 275 | 605 | 8-22 |
Main dimensions
| DN(mm) | D | D1 | Φ | L | H | Z | Z-Φd |
| 150 | 280 | 240 | 350 | 425 | 615 | 8 | 23 |
| 200 | 335 | 295 | 400 | 485 | 715 | 8 | 23 |
| 250 | 390 | 350 | 465 | 540 | 880 | 12 | 23 |
| 300 | 440 | 400 | 400 | 510 | 990 | 12 | 23 |
| 400 | 565 | 515 | 515 | 656 | 750 | 1100 | 10 |
Choose exhaust valves of different specifications according to the diameters
of pipe, which can be referred to the table below.
| DN Exhaust Valve | 25 | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Transmission pipes | 100-250 | 300-450 | 500-700 | 800-1000 | 1200-1500 | 1600-2000 | 2200-2600 | 2800-3400 | 3600-3800 | 4000-4500 |
Material components
| No | Name | Material |
| 1 | Body | HT 200 |
| 2 | Bonnet | HT 200 |
| 3 | Float Ball | 304 Stainless Steel |
| 4 | Locating Bracket | Stainless Steel |
| 5 | Lever | H59 Brass |
| 6 | Plug | Stainless Steel |
| Prod Model: |
QE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Medium: |
Clean Water |
| Temperature: |
Normal |
| Body: |
Gray Cast Iron Ht200 |
| Float And Plug: |
Stainless Steel |
| Sealing Material: |
Butadiene Acrylonitrile Rubber |
