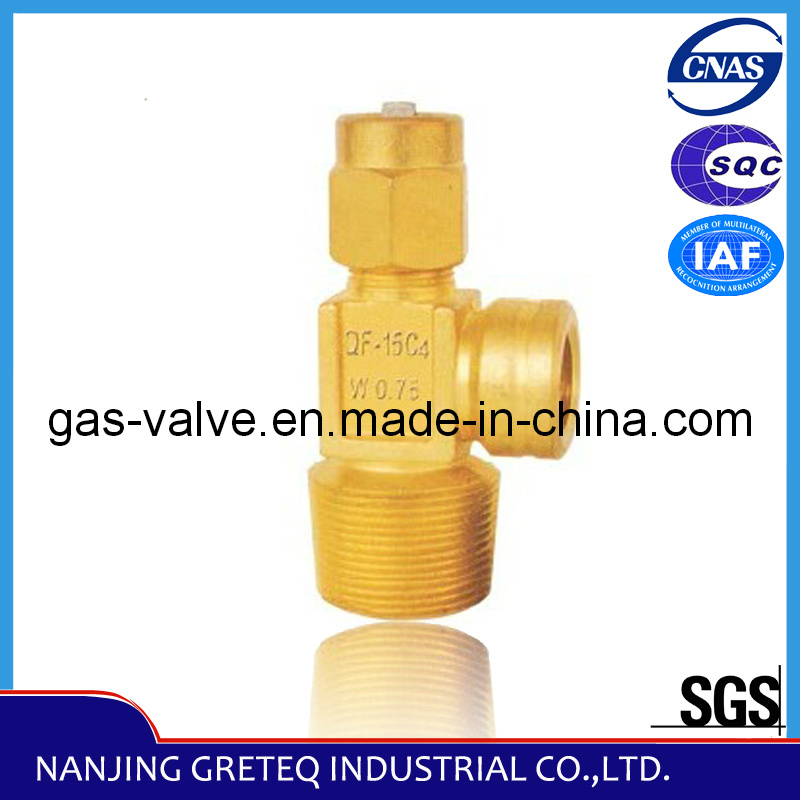

QF-15C4 Brass Acetylene Cylinder Valve for Acetylene Cylinder

Price:	US $ 8-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Set
Pay Type:	L/C,T/T

Contact Supplier

Nanjing Greteq Industrial Co., Ltd.

Showroom Product Company Profile

QF-15C4 Brass Acetylene Cylinder Valve for acetylene cylinder

Specification:
1)Model name: OF-15C3
2)Suitable Medium: C2H2
3)Working Pressure: 3Mpa
4)Nominal Diameter: DN4mm
5)Outlet joint thread: G5/8-LH
6)Inlet joint thread (thread to cylinder): GB8335 PZ39
7)structure: Needle
8)power: Soleniod
9)pressure: Medium pressure
10)Material: Brass
11)Media: Gas
12)Temp/Press Of Safety device: None

Quality certificate
1)SQC certificate for quality management system, has complied with the requirements of GB/T 19001-2000 idt ISO 9001: 2000
2)Manufacture License of Special equipment in People's Republic of China TSF 210024-2012

NO.	Type No.	Produce Name	suitable Medium	PN (Mpa)	DN (mm)	Outlet thread(mm)	Jiont Thread to cylinder (mm)	Temp./Pressure of safety device
1	QF-15	Brass Acetylene Cylinder valve	C2H2(acetylene)	3	3	21 clip	35.52	/
2	QF-15A	Brass Acetylene Cylinder valve	C2H2(acetylene)	3	4	21 clip	GB8335 PZ39	100deg±5deg
3	QF-15A1	Brass Acetylene Cylinder valve	C2H2(acetylene)	3	4	Female Thread G5/8-LH	GB8335 PZ39	100deg±5deg
4	QF-15A1B	Brass Acetylene Cylinder valve	C2H2(acetylene)	3	4	Female Thread G5/8-LH	GB8335 PZ39	100deg±5deg
5	QF-15A2	Brass Acetylene Cylinder valve	C2H2(acetylene)	3	4	G5/8-LH	GB8335 PZ39	100deg±5deg
6	QF-15A3	Brass Acetylene Cylinder valve	C2H2(acetylene)	3	4	G1/2	GB8335 PZ39	100deg±5deg
7	QF-15A5	Brass Acetylene Cylinder valve	C2H2(acetylene)	3	4	G1/2	1-11 1/2 -NGT	/
8	QF-15A6	Brass Acetylene Cylinder valve	C2H2(acetylene)	3	4	G1/2	1 1/4 -11 1/2 -NGT	/
9	QF-15A7	Brass Acetylene Cylinder valve	C2H2(acetylene)	3	4	21 clip	1-11 1/2 -NGT	/
10	QF-15A8	Brass Acetylene Cylinder valve	C2H2(acetylene)	3	4	Female Thread G3/4	GB8335 PZ39	100deg±5deg
11	QF-15A9	Brass Acetylene Cylinder valve	C2H2(acetylene)	3	4	21 clip	GB8335 PZ27.8	/
12	QF-15A14	Brass Acetylene Cylinder valve	C2H2(acetylene)	3	4	CGA300	GB8335 PZ39	100deg±5deg

Prod Model:	QF-15C4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Or Nonstandard:	Standard
Structure:	Needle
Power:	Solenoid
Material:	Brass Hpb59-1
Pressure:	Medium Pressure
Temperature Of Media:	Normal Temperature
Port Size:	Outlet Female Thread G5/8-Lh, Inlet GB8335 Pz 27.8
Packing Details:	25sets/Carton
Delivery Detail:	15 Days
Delivery Port:	Shanghai

We Nanjing Greteq Industrial Co., Ltd have a long history in China. Now we have two mainly products: Ductile iron pipe/fittings and gas cylinder valve/gas equipment.

In ductile iron pipe/fitting department we use the lost-foam casting process and resin bonded sand process and make production and inspection strict according to ISO2531, BSEN545, BSEN598 and GB/T13295 standard. It annually produces 200000 tons of ductile iron pipe and 15000 tons pipe fitting The diameter are from 80-2600. We have a owned ductile iron pipe factory and several cooperative iron pipe and fitting factory, So we can meet your big quantity order and supply all diameter size ductile ion pipe and fitting to you in short times. Our goods are only for export and had succeeded exported to America, Europe, Africa, Oceania, Southeast Asia and the Middle East.

In gas cylinder valve/gas equipment department. The mainly products are including high and middle pressure oxygen/acetylene/CO2/H2/N2/Ar/Cl/Freon cylinder valve, CGA cylinder valve, CNG/LNG cylinder valve, cryogenic valvepipe shutoff valve and pressure reducer used for all kindly of industries, SCBA cylinder valve and so on. Those products are well-known in domestic market and exported in many countries.

We will 'Survival by Quality, Development by Credit' and looking for your inquiry.
