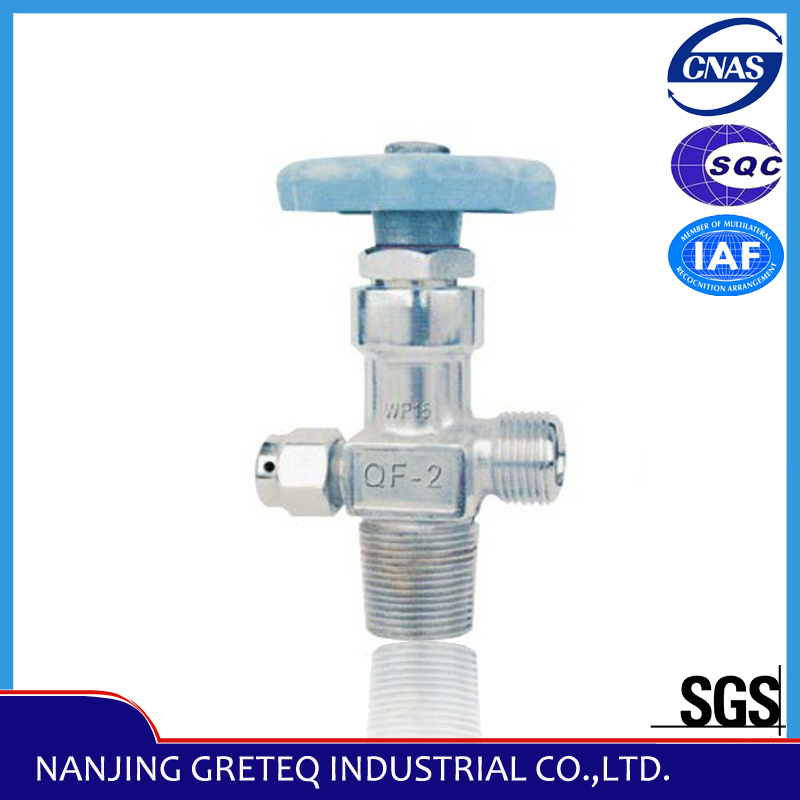

QF-2 High Quality Brass Oxygen Tank Valve for Oxygen (Plate Chrome)

QF-2 High Quality Brass Oxygen Tank Valve for Oxygen (Plate Chrome)
Price: US $ 6.5-9.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Set
Pay Type: L/C,T/T,D/P
QF-2 High Quality ?Brass Oxygen Tank Valve for Oxygen(Plate Chrome)

Specifications
1)Suitable Medium: O2, Air, N2
2)Working Pressure: 15Mpa
3)Nominal Diameter: DN4mm
4)Suitable Medium: O2, Air, N2
5)Working Pressure: 15Mpa
6)Nominal Diameter: DN4mm
7)Inlet thread: G5/8
8)Outlet thread (thread to cylinder): GB8335PZ27.8
9)Safty device: 21± 1.5Mpa
2:Packing & delivery
Packaging Details: 25sets/carton
Delivery Detail: Within10 days, enough in stock

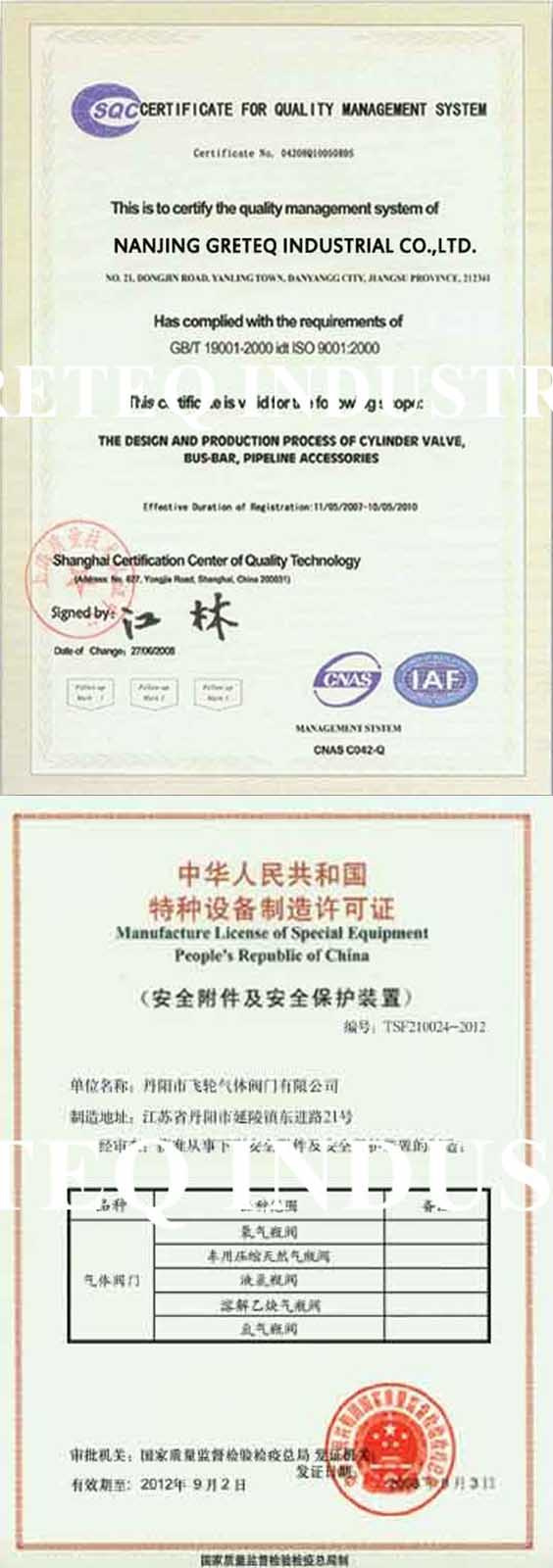

3: Quality certificate
SQC certificate for quality management system, has complied with the requirements of GB/T 19001-2000 idt ISO 9001: 2000
Manufacture License of Special equipment People's Republic of China

NO.Type No.Product NameSuitable
medium
PN
(Mpa)
DN
(mm)
Outlet thread
(mm)
Jiont thread to
 cylinder (mm)
Temp/pressure
of safety device ( Mpa)

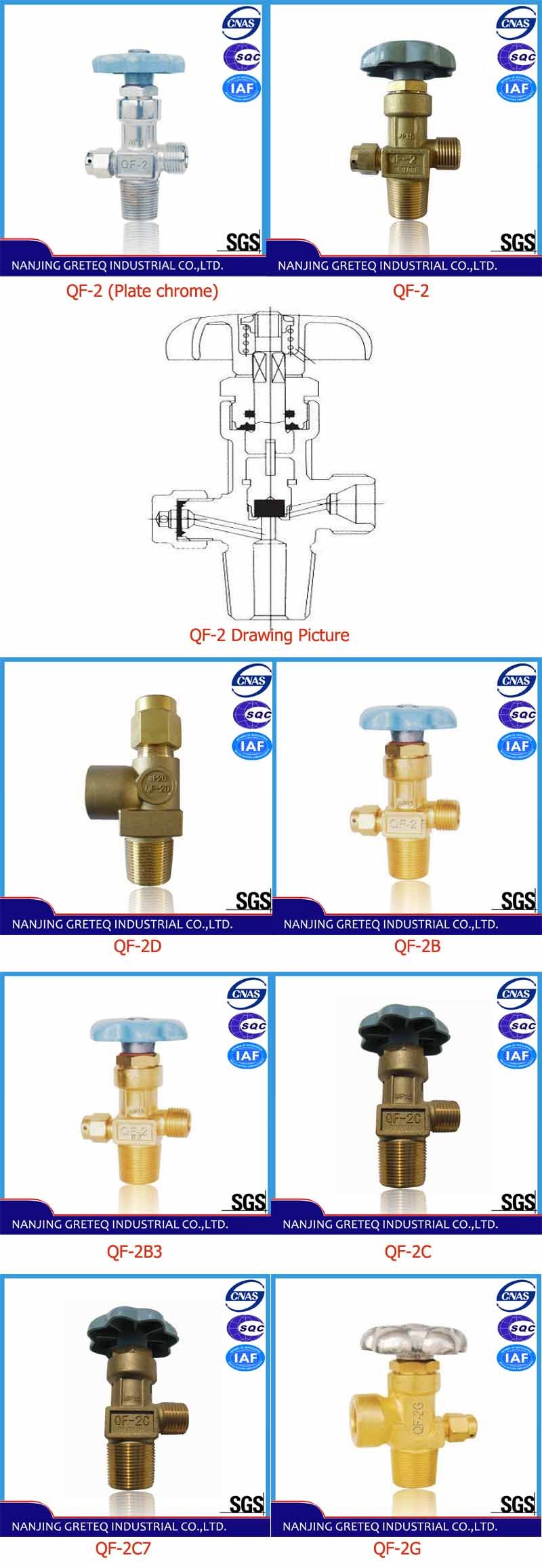

1QF-2Brass oxygen cylinder valve(Flapper type)O2,N2,Air154G5/8GB8335 PZ27.821±1.5
2QF-2(Plate chrome)Brass oxygen cylinder valve(Plate chrome)(Flapper type)O2,N3,Air154G5/8GB8335 PZ27.821±1.5
3QF-2BBrass oxygen cylinder valve(Flapper type)O2,N4,Air154G5/8-LHGB8335 PZ27.821±1.5
4QF-2B1Brass oxygen cylinder valve(Flapper type)O2,N5,Air154W22 x 1/14G1/221±1.5
5QF-2B2Brass oxygen cylinder valve(Flapper type)O2,N6,Air154W22 x 1/14-LHG1/221±1.5
6QF-2B3Brass oxygen cylinder valve(Flapper type)O2,N7,Air154G5/83/4-14-NGT21±1.5
7QF-2B4Brass oxygen cylinder valve(Flapper type)O2,N8,Air154CGA300GB8335 PZ27.821±1.5
8QF-2CBrass oxygen cylinder valve(Flapper type)O2,N9,Air154G5/8GB8335 PZ27.8
9QF-2C2Brass oxygen cylinder valve(Flapper type)O2,N10,Air154G1/2GB8335 PZ27.8
10QF-2C3Brass oxygen cylinder valve(Flapper type)O2,N11,Air16.53.5G5/8GB8335 PZ27.8
11QF-2C6Brass oxygen cylinder valve(Flapper type)O2,N12,Air154G5/8G5/8 Union coupling
12QF-2C7Brass oxygen cylinder valve(Flapper type)O2,N13,Air154w21.8 x 1/14GB8335 PZ27.8
13QF-2DBrass oxygen cylinder valve(Needle type)O2,N14,Air154Female thread G5/8GB8335 PZ27.8
14QF-2EBrass oxygen cylinder valve(Flapper type)O2,N15,Air153W22 x 1/14JIS B 8246 V1 Ø2021±1.5
15QF-2E1Brass oxygen cylinder valve(Flapper type)O2,N16,Air153G5/8GB8335 PZ19.221±1.5
16QF-2E2Brass oxygen cylinder valve(Flapper type)O2,N17,Air153W22 x 1/14GB8335 PZ19.221±1.5
17QF-2FBrass oxygen cylinder valve(Plate chrome)(Flapper type)O2,N18,Air154G5/8GB8335 PZ27.821±1.5
18QF-2GBrass oxygen cylinder valve(Shaft coupling)O2,N19,Air154Femal threead G5/8GB8335 PZ27.821±1.5
19QF-2MBrass oxygen cylinder valve(Flapper type)O2,N20,Air154G1/2GB8335 PZ27.821±1.5
20QF-2PBrass oxygen cylinder valve(Flapper type)O2,N21,Air154W21.8 x 1/14GB8335 PZ27.821±1.5
Prod Model: QF-2( Plate chrome)
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Or Nonstandard: Standard
Power: Manual
Structure: Control
Pressure: High Pressure
Material: Brass
Temperature Of Media: Medium Temperature
Port Size: Inlet GB8335pz27.8mm, Outlet G5/8
Loading Port: Shanghai Port
Delivery Time: Within 10 Days
We Nanjing Greteq Industrial Co., Ltd have a long history in China. Now we have two mainly products: Ductile iron pipe/fittings and gas cylinder valve/gas equipment.

In ductile iron pipe/fitting department we use the lost-foam casting process and resin bonded sand process and make production and inspection strict according to ISO2531, BSEN545, BSEN598 and GB/T13295 standard. It annually produces 200000 tons of ductile iron pipe and 15000 tons pipe fitting The diameter are from 80-2600. We have a owned ductile iron pipe factory and several cooperative iron pipe and fitting factory, So we can meet your big quantity order and supply all diameter size ductile ion pipe and fitting to you in short times. Our goods are only for export and had succeeded exported to America, Europe, Africa, Oceania, Southeast Asia and the Middle East.

In gas cylinder valve/gas equipment department. The mainly products are including high and middle pressure oxygen/acetylene/CO2/H2/N2/Ar/Cl/Freon cylinder valve, CGA cylinder valve, CNG/LNG cylinder valve, cryogenic valvepipe shutoff valve and pressure reducer used for all kindly of industries, SCBA cylinder valve and so on. Those products are well-known in domestic market and exported in many countries.

We will 'Survival by Quality, Development by Credit' and looking for your inquiry.
