| Price: | US $ 7.5-10/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 200/Set |
| Pay Type: | L/C,T/T,D/P |
| NO. | Type No. | Produce Name | suitable Medium | PN (Mpa) | DN (mm) | Outlet thread(mm) | Jiont Thread to cylinder (mm) | Temp./Pressure of safety device |

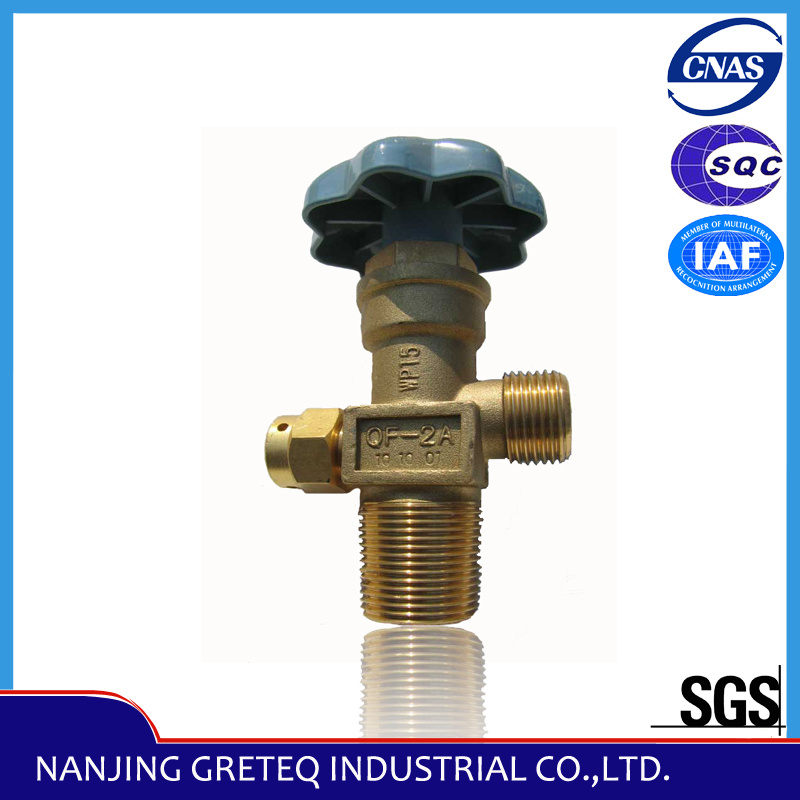

| 1 | QF-2A | Brass Shaft Coupling type Cylinder valve for CO2 | CO2 | 15 | 7 | G5/8 | GB8335 PZ27.8 | 21±1.5 |
| 2 | QF-2A1 | Brass Shaft Coupling type Cylinder valve for CO2 | CO2 | 15 | 7 | W22 x 1/14 | GB8335 PZ27.8 | 21±1.5 |
| 3 | QF-2A8 | Brass Shaft Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | W21.8 x 1/14 | GB8335 PZ27.8 | 21±1.5 |
| 4 | QF-2A17 | Brass Shaft Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | CGA320 | GB8335 PZ27.8 | 21±1.5 |
| 5 | QF-17 | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 12.5 | 4 | CGA320 | UNF1.125-12 | 15-18.75 |
| 6 | QF-16A | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 2.5 | W21.8 x 1/14 | M18 x 1.5 | 21±1.5 |
| 7 | QF-35 | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | CGA320 | UNF1.125-12 | 21±1.5 |
| 8 | QF-35A | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | W22 x 1/14 | UNF1.125-12 | 21±1.5 |
| 9 | QF-35B | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | W22 x 1/14 | UNT(1A)3/4-16 | 21±1.5 |
| 10 | QF-35C | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | G1/2 | UNF1.125-12 | 21±1.5 |
| 11 | F-5 | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 7 | Female Thread G5/8 | GB8335 PZ27.8 | 21±1.5 |
| 12 | F-2M | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | W22 x 1/14 | JIS B 8246 V2 | 21±1.5 |
| 13 | F-2M1 | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | W22 x 1/14 | GB8335 PZ27.8 | 21±1.5 |
| 14 | F-2M2 | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | W22 x 1/14 | GB8335 PZ19.2 | 21±1.5 |
| 15 | F-2N | Brass Flapper Coupling type Cylinder valve for CO2 | CO2 | 15 | 4 | W21.8 x 1/14 | JIS B 8246 V2 28 | 21±1.5 |
| Prod Model: | QF-2A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Or Nonstandard: | Standard |
| Power: | Manual |
| Structure: | Plug |
| Material: | Outlet G5/8, Inlet GB8335 Pz27.8 |
| Pressure: | Medium Pressure |
| Temperature Of Media: | Normal Temperature |
| Suitable Medium: | CO2( Carbon Dioxide) |
| Loading Port: | Shanghai Port |
| Delivery Time: | Within 16 Days |
