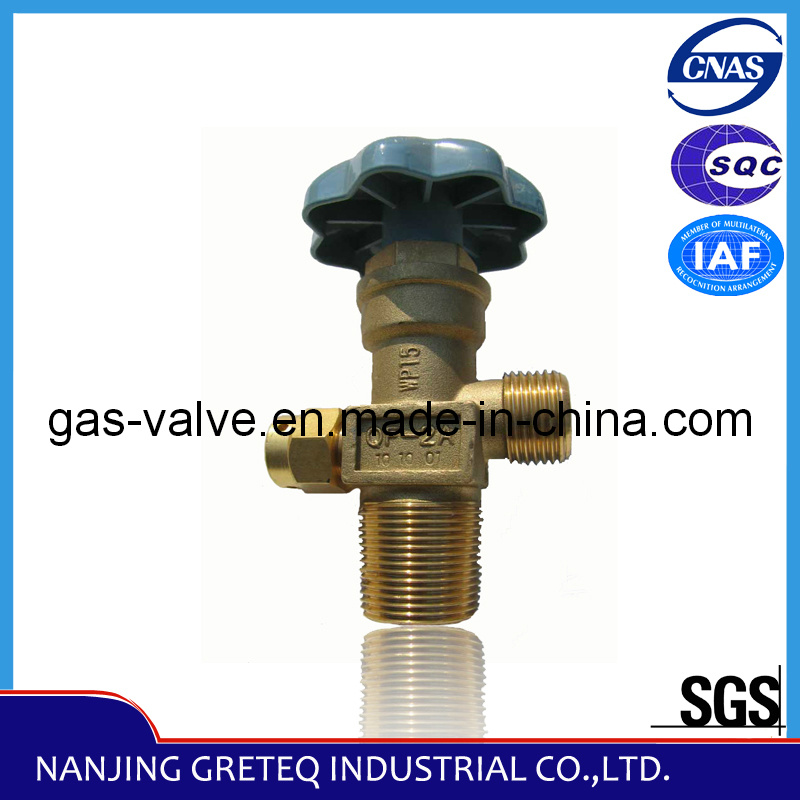

QF-2A2 Brass N2O Cylinder Gas Cylinder Valve in China

QF-2A2 Brass N2O Cylinder Gas Cylinder Valve in China
Price: US $ 7.5-10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 300/Set
Pay Type: L/C,T/T,D/P
QF-2A2 Brass N2O Cylinder Gas Cylinder Valve in China Specifications 1)Suitable Medium: N2O 2)Working Pressure: 15Mpa? 3)Nominal diameter: DN3mm 4)Outlet thread: CGA320 825-14-NGO-RH 5)Inlet thread(joint to cylinder): GB8335PZ27.8 6)Safety device: 21±1.5Mpa Packaging &?Delivery Packaging Details: 25sets/carton Delivery Detail: within 15 days ? Quality certificate? SQC certificate for quality management system, has complied with the requirements of GB/T 19001-2000 idt ISO 9001: 2000? Manufacture License of Special equipment in People's Republic of China TSF210024-2012
NO. Type  No.                               Produce Name suitable
Medium
PN
(Mpa)
DN
(mm)
Outlet thread(mm) Jiont Thread
 to cylinder (mm)
Temp./Pressure
of safety device
1 QF-2A Brass Shaft Coupling type Cylinder valve for CO2 CO2 15 7 G5/8 GB8335 PZ27.8 21±1.5
2 QF-2A1 Brass Shaft Coupling type Cylinder valve for CO2 CO2 15 7 W22 x 1/14 GB8335 PZ27.8 21±1.5
3 QF-2A8 Brass Shaft Coupling type Cylinder valve for CO2 CO2 15 4 W21.8 x 1/14 GB8335 PZ27.8 21±1.5
4 QF-2A17 Brass Shaft Coupling type Cylinder valve for CO2 CO2 15 4 CGA320 GB8335 PZ27.8 21±1.5
5 QF-17 Brass Flapper Coupling type Cylinder valve for CO2 CO2 12.5 4 CGA320 UNF1.125-12 15-18.75
6 QF-16A Brass Flapper Coupling type Cylinder valve for CO2 CO2 15 2.5 W21.8 x 1/14 M18 x 1.5 21±1.5
7 QF-35 Brass Flapper Coupling type Cylinder valve for CO2 CO2 15 4 CGA320 UNF1.125-12 21±1.5
8 QF-35A Brass Flapper Coupling type Cylinder valve for CO2 CO2 15 4 W22 x 1/14 UNF1.125-12 21±1.5
9 QF-35B Brass Flapper Coupling type Cylinder valve for CO2 CO2 15 4 W22 x 1/14 UNT(1A)3/4-16 21±1.5
10 QF-35C Brass Flapper Coupling type Cylinder valve for CO2 CO2 15 4 G1/2 UNF1.125-12 21±1.5
11 F-5 Brass Flapper Coupling type Cylinder valve for CO2 CO2 15 7 Female Thread G5/8 GB8335 PZ27.8 21±1.5
12 F-2M Brass Flapper Coupling type Cylinder valve for CO2 CO2 15 4 W22 x 1/14 JIS B 8246 V2 21±1.5
13 F-2M1 Brass Flapper Coupling type Cylinder valve for CO2 CO2 15 4 W22 x 1/14 GB8335 PZ27.8 21±1.5
14 F-2M2 Brass Flapper Coupling type Cylinder valve for CO2 CO2 15 4 W22 x 1/14 GB8335 PZ19.2 21±1.5
15 F-2N Brass Flapper Coupling type Cylinder valve for CO2 CO2 15 4 W21.8 x 1/14 JIS B 8246 V2 28 21±1.5

Prod Model: QF-2A2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Or Nonstandard: Standard
Power: Manual
Structure: Shutoff
Thread: Outlet Cga320 825-14ngo-Rh, Inlet GB8335 Pz27.8
Pressure: High Pressure
Temperature Of Media: Normal Temperature
Suitable Medium: N2o
Loading Port: Shanghai Port
Delivery Time: Within 16 Days
We Nanjing Greteq Industrial Co., Ltd have a long history in China. Now we have two mainly products: Ductile iron pipe/fittings and gas cylinder valve/gas equipment.

In ductile iron pipe/fitting department we use the lost-foam casting process and resin bonded sand process and make production and inspection strict according to ISO2531, BSEN545, BSEN598 and GB/T13295 standard. It annually produces 200000 tons of ductile iron pipe and 15000 tons pipe fitting The diameter are from 80-2600. We have a owned ductile iron pipe factory and several cooperative iron pipe and fitting factory, So we can meet your big quantity order and supply all diameter size ductile ion pipe and fitting to you in short times. Our goods are only for export and had succeeded exported to America, Europe, Africa, Oceania, Southeast Asia and the Middle East.

In gas cylinder valve/gas equipment department. The mainly products are including high and middle pressure oxygen/acetylene/CO2/H2/N2/Ar/Cl/Freon cylinder valve, CGA cylinder valve, CNG/LNG cylinder valve, cryogenic valvepipe shutoff valve and pressure reducer used for all kindly of industries, SCBA cylinder valve and so on. Those products are well-known in domestic market and exported in many countries.

We will 'Survival by Quality, Development by Credit' and looking for your inquiry.
