| Price: | US $ 11-15/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 300/Set |
| Pay Type: | L/C,T/T,D/P |
| Type No. | Product Name |
Suitable medium |
PN (Mpa) |
DN (mm) |
Outlet thread (mm) |
Jiont thread to cylinder (mm) |
Temp/pressure of safety device ( Mpa) |
|
| 1 | QF-4 | Brass Neddle Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | G3/4 | GB8335 PZ27.8 | / |
| 2 | QF-4A | Brass Left thread Oxygen valve for Gas Cylinder | O2,N2,Air | 15 | 4 | G5/8-LH | GB8335 PZ27.8 | / |
| 3 | QF-5 | Brass Flapper High pressure Cylinder valve for Oxygen | O2,N2,Air | 20 | 4 | G5/8 | GB8335 PZ27.8 | 28±2 |
| 4 | QF-5A | Brass Flapper High pressure Cylinder valve for Oxygen | O2,N2,Air | 20 | 4 | G5/8 | GB8335 PZ27.8 | / |
| 5 | QF-5A1 | Brass Flapper High pressure Cylinder valve for Oxygen | O2,N2,Air | 15 | 4 | W21.8 x 1/14 | 3/4-14-NGT | / |
| 1 | QF-8 | Brass ShaftCoupling Type Cylinder Valve for Oxygen | O2,N2,Air | 15 | 4 | G1/2 | GB8335 PZ27.8 | / |
| 2 | QF-8A | Brass ShaftCoupling Type Cylinder Valve for Oxygen | O2,N2,Air | 30 | 4 | W21.8 x 1/14 | GB8335 PZ27.8 | / |
| 3 | QF-8B | Brass ShaftCoupling Type Cylinder Valve for Oxygen | O2,N2,Air | 30 | 3 | W22 x 1/14 | GB8335 PZ19.2 | / |
| 4 | QF-8C | Brass ShaftCoupling Type Cylinder Valve for Oxygen | O2,N2,Air | 15 | 3 | W22 x 1/14 | M18 x 1.5 | / |
| 5 | QF-8D | Brass ShaftCoupling Type Cylinder Valve for Oxygen | O2,N2,Air | 15 | 4 | W21.8 x 1/14 | GB8335 PZ27.8 | 21±1.5 |

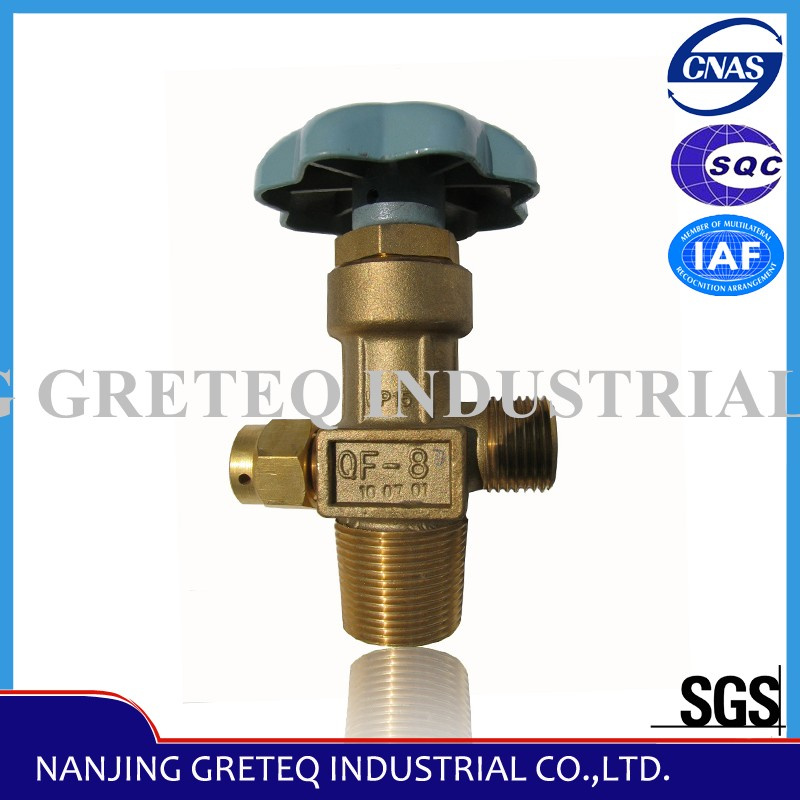

| Prod Model: | QF-8C |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Or Nonstandard: | Standard |
| Structure: | Needle |
| Pressure: | High Pressure |
| Power: | Manual |
| Material: | Brass, Brass Hpb59-1 |
| Temperature Of Media: | Normal Temperature |
| Port Size: | Outlet W22 X 1/14, Inlet M18 X 1.5 |
| Loading Port: | Shanghai Port |
| Delivery Time: | Within 10 Days |
