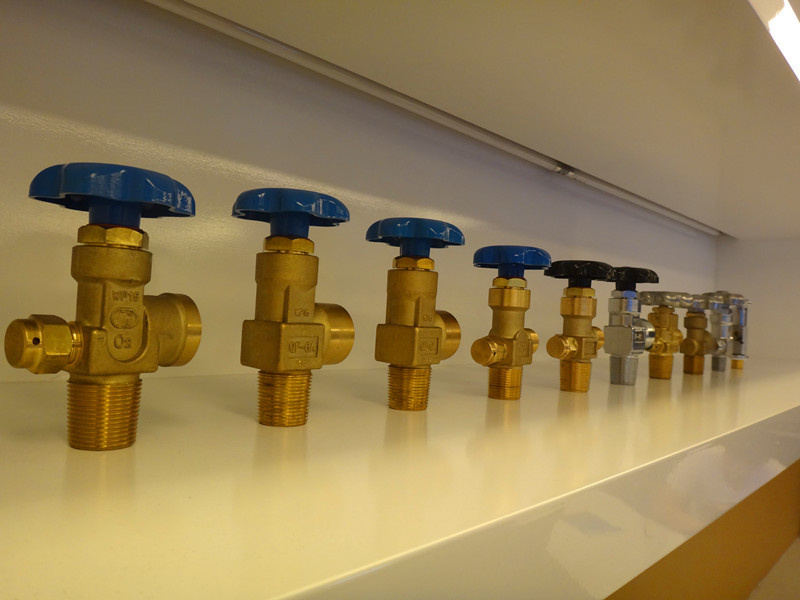

Qf Cga Oxygen Nitrogen Argon Gas Cylinder Valve

Price:	US $ 7/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T

Contact Supplier

Shanghai Eternal Faith Industry Co., Ltd.

Showroom Product Company Profile

Product Description

QF /CGA Gas Cylinder Valves
1)Suitable Medium: Oxygen Nitrogen Argon
2)Working Pressure: 15Mpa
3)Nominal Diameter: DN2.5mm
4)Outlet thread: W21.8X1/14
5)Inlet thread(joint to cylinder): M18X1.5
6)Safety device: 21± 1.5Mpa

Advantages we have:

1. Original Manuacturer: Our Company have professional equipments for gas Valves, gas tank, gas cylinders and etc.;

2. Large Output capability: We have the capability to produce more than 50, 000pcs of Gas Cylinders per month

3. Cost Advantages: We have cost advantage because our professional and scale economy;

4. Series: We have different series and models, for different standards in different countries;

5. Small order can be acceptable: M. O. Q. =100 PCS;

6. Exporting experience: We have many years' experience for exporting business.

Company Information
A Company You Can Trust:
Located in Shanghai, SEFIC is a professional manufacturer of gas equipment, such as storage tanks, vaporizers, gas cylinders and gas filling station. In addition, we also produce all kinds of equipment parts, such as valve, tulip cap and steel soft pipe. We have over 10-years experience in gas industry and has a good reputation in this field. Our products have won praise from customers all over the world. And our products habe been exported to U. S., Euro countries, such as Germany, Portugal, Rominia and Bulgaria, South America coutries, such as Chile, Peru and Bolivia, Africa countries, such as Angola and South Africa.
Quality and Safety:
We have implemented a strict and complete quality control system, which ensures that each product can meet the quality requirement of customers. In addition, all of our products have been strictly inspected before shipment. Our products have attained the CE/DOTTPED certification.
Your Success, Our Glory!
Our aim is to help customers realize their goals. We have been making great effort to achieve this win-win project and sincerely hope you can join us

Our Services:
We are not only cylinder supplier, but also the first-rate service provider. We are prepared for your demand and question at any time. Please feel free to send us message if you have any interest or question about our products.

Please feel free to contact us if you need further information.

Name: Peter
Detailed Address: No. 222, Meidan Road, BaoShan District, Shanghai, China 201908
TEL: 0086-21-66019678 Fax: 0086-21-66019679

Model NO.	Suitable Medium:	Working Pressure (Mpa)	Nominal Diameter (mm)	Outlet joint thread: (mm)	Inlet joint thread mm
QF-2A	CO2	15	7	G5/8	GB8335 PZ27.8
QF-2A1	CO2	15	7	W22×1/14	GB8335 PZ27.8
QF-2A8	CO2	15	4	W21.8×1/14	GB8335 PZ27.8
QF-2A17	CO2	15	4	CGA320	GB8335 PZ27.8
QF-17	CO2	12.5	4	CGA320	UNF1.125-12
QF-16A	CO2	15	2.5	W21.8×1/14	M18×1.5
QF-35	CO2	15	4	CGA320	UNF1.125-12
QF-35A	CO2	15	4	W22×1/14	UNF1.125-12
QF-35B	CO2	15	4	W22×1/14	UNT(1A)3/4-16
QF-35C	CO2	15	4	G1/2	UNF1.125-12
F-5	CO2	15	7	G5/8	GB8335 PZ27.8
F-2M	CO2	15	4	W22×1/14	JIS B 8246 V1 2
QF-2M1	CO2	15	4	W22×1/14	GB8335 PZ27.8
QF-2M2	CO2	15	4	W22×1/14	GB8335 PZ19.2
F-2N	CO2	15	4	W21.8×1/14	JIS B 8246 V1 28

Prod Model:	QF/CGA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Specification:	Qf/Cga
Working Pressure:	15mpa
Medium:	Oxygen Nitrogen Argon
Outlet Screw:	Cga320
Connect With Cylinder Screw:	Pz27.8
Place Of Origin:	Shg,Shanghai, China
Nominal Diameter:	2.5mm
Connection Form:	Inner-Thread
Usage:	Cylinder
