QF-T1B High Quality CNG Auto Cylinder Valve with Connector

Price:	US $ 10-12.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	300/Set
Pay Type:	L/C,T/T

Contact Supplier

Nanjing Greteq Industrial Co., Ltd.

Showroom Product Company Profile

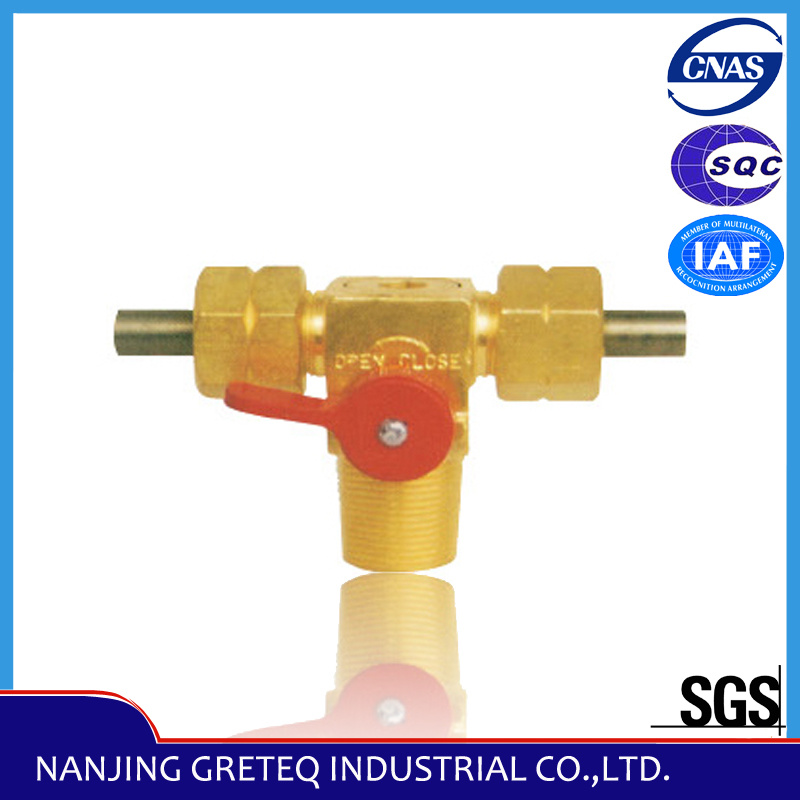

QF-T1B High quality CNG Auto Cylinder Valve with Connector

Specifications
The QF-T1B type valves usually with the nuts and nipple joint which show on the structure drawing.
1)Suitable Medium: CNG
2)Working Pressure: 20Mpa
3)Nominal Diameter: DN5mm
4)Outlet Joint thread: 2-W21.8*1/14-LH, (outside thread)
5)Joint thread to cylinder: GB8335PZ27.8
6)Safty device: 33± 2Mpa, 110° C± 5° C

Packaging & Delivery
Packaging Details: 0.6~0.7kg/set with packing, 25PCS/carton, 15~16kg/carton, 32*15*40cm
Delivery Detail: Within 15 days

CERTIFICATE:
SQC certificate for quality management system, has complied with the requirements of GB/T 19001-2000 idt ISO 9001: 2000
Manufacture License of Special equipment in People's Republic of China, The Number is TSF210024-2012

NO.	Type No.	Produce Name	suitable Medium	PN (Mpa)	DN (mm)	Outlet thread(mm)	Jiont Thread to cylinder (mm)	Temp./Pressure of safety device
1	QF-T1	CNG Valve Used in Vehicle Cylinder (20MPa)1/4turn ball valve	CNG	20	4	Female Thread 2-NPT1/4	PZ27.8	33±3Mpa 100deg ±5deg
2	QF-T1A	CNG Valve Used in Vehicle Cylinder (20MPa)1/5turn ball valve	CNG	20	4	Female Thread 2-NPT1/4	PZ27.8	33±3Mpa 100deg ±5deg
3	QF-T1B	Brass CNG Auto Cylinder Valve with connector	CNG	20	4	2-w21.8 x1/14-LH	PZ27.8	33±3Mpa 100deg ±5deg
4	QF-T1C	Brass CNG Car Cylinder Valve (20MPa,1/4 turn ball valve used in car)	CNG	20	4	2-NPT1/4	PZ27.8	33±3Mpa 100deg ±5deg
5	QF-T1D	CNG Commercial Vehicle Valve for Gas Cylinder	CNG	20	4	Female Thread 2-M12 X 1.25	M20 X 1.5	None
6	QF-T1E	Auto CNG Valve for auto gas cylinder	CNG	20	4	Female Thread 2-NPT1/4	M20 X 1.5	33±3Mpa 100deg ±5deg
7	QF-T1F	Brass Cng Ball Valve for CNG cylinder(20MPa)	CNG	20	4	Female Thread 2-NPT1/4	m25 x 1.5	33±3Mpa 100deg ±5deg
8	QF-T1H	Natural Gas Filling Valve(11mm hole,used in India market)	CNG	20	4	Female Thread 2-M12 X 12.5	G1/2	None
9	QF-T1H2	Natural Gas Pipeline Valve (Indian type)	CNG	20	4	Female Thread M12 X 1	G1/2	None
10	QF-T1H3	CNG Filling Valve for Vehicle(20MPa ball valve)	CNG	20	4	Female Thread M12 X 1	1/2-14BSP	None
11	QF-T1H4	CNG Fuel Fill valve with nozzle(P30/P36 Auto parts)	CNG	20	4	Female Thread M12 X 1	G1/2	None

Prod Model:	QF-T1B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Or Nonstandard:	Standard
Power:	Manual
Structure:	Ball
Pressure:	High Pressure
Port Size:	Outlet 2-W21.8*1/14-Lh, Inlet GB8335pz27.8
Loading Port:	Shanghai Port
Material:	Brass, Brass Hpb59-1
Delivery Time:	Within 10 Days

We Nanjing Greteq Industrial Co., Ltd have a long history in China. Now we have two mainly products: Ductile iron pipe/fittings and gas cylinder valve/gas equipment.

In ductile iron pipe/fitting department we use the lost-foam casting process and resin bonded sand process and make production and inspection strict according to ISO2531, BSEN545, BSEN598 and GB/T13295 standard. It annually produces 200000 tons of ductile iron pipe and 15000 tons pipe fitting The diameter are from 80-2600. We have a owned ductile iron pipe factory and several cooperative iron pipe and fitting factory, So we can meet your big quantity order and supply all diameter size ductile ion pipe and fitting to you in short times. Our goods are only for export and had succeeded exported to America, Europe, Africa, Oceania, Southeast Asia and the Middle East.

In gas cylinder valve/gas equipment department. The mainly products are including high and middle pressure oxygen/acetylene/CO2/H2/N2/Ar/Cl/Freon cylinder valve, CGA cylinder valve, CNG/LNG cylinder valve, cryogenic valvepipe shutoff valve and pressure reducer used for all kindly of industries, SCBA cylinder valve and so on. Those products are well-known in domestic market and exported in many countries.

We will 'Survival by Quality, Development by Credit' and looking for your inquiry.
